YS4306: Yagi para sistemas de seguimiento CTT / MOTUS de 434 MHz, 6 elementos, 12 dBi, conector N-Hembra
YS4306-Rev2
Los gastos de envío se calculan en la pantalla de pagos.
YS4306: Yagi para sistemas de seguimiento CTT / MOTUS de 434 MHz, 6 elementos, 12 dBi, conector N-Hembra
More InfoSpecifications Reviews

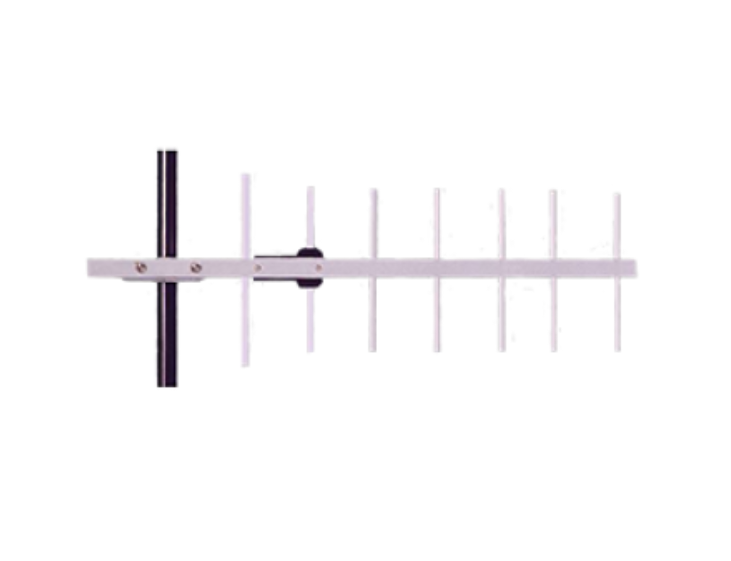

La YS4306 es una antena Yagi direccional de alta resistencia para 430-450 MHz. Está construido en aluminio con 6 elementos, proporcionando 12 dBi de ganancia lineal. Esta antena se utiliza ampliamente para el seguimiento migratorio de aves y tortugas utilizando CTT LifeTag y PowerTag a 434 MHz.
More Information
También recomendamos
PT400-025-SNM-SNM
Cable coaxial de baja pérdida equivalente tipo LMR400 - 25 pies - N macho - N macho
$94.47
$94.47
View Details
PT400-050-SNM-SNM
Cable coaxial de baja pérdida equivalente tipo LMR400 - 50 pies - N macho - N macho
$157.20
$157.20
View Details
PLC1669-Rev2
PLC1669-Rev2: Antena Yagi de 164-170 MHz para sistemas MOTUS y radios ATS o Cell Track. Alta ganancia con conector N-Hembra fijo.
$628.00
$628.00
View Details
FG4305

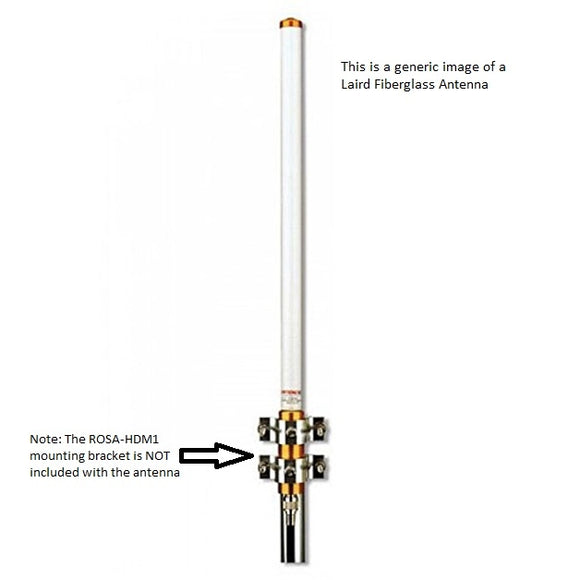

FG4305: Antena omnidireccional exterior de largo alcance para sistemas de seguimiento CTT / MOTUS de 430-440 y 434 MHz
$260.27
$260.27
View Details
SBF-SSM

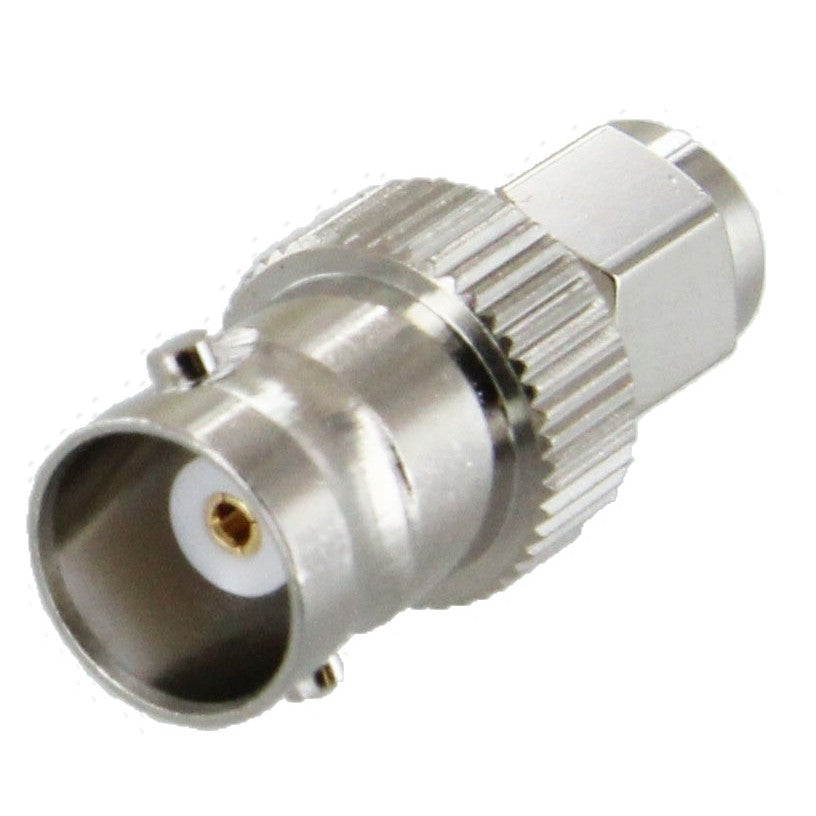

Adaptador BNC hembra estándar a macho SMA estándar
$8.00
$8.00
View Details
Specifications
| SKU | YS4306Rev2 |
|---|---|
| Manufacturer Part Number | YS4306-Rev2 |
| Manufacturer | RFMAX |
| Antenna Category | UHF (380-600 MHz) |
| Working Frequency | 430-450 MHz |
| Gain | 10.4 dBi |
| Antenna Style | Yagi Antenna |
| Polarity | Linear |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Directional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | 1.5:1 |
| No Of Elements | 7 |
| Height/Length (inches) | 43 |
| Weight (lbs) | 4 |
| Operating Temp (celsius) | (-30 to 70) C |
| Color | Chrome |
| Connector 1 | N-Female |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Ground Plane Required | No |
| Product Condition | New |
