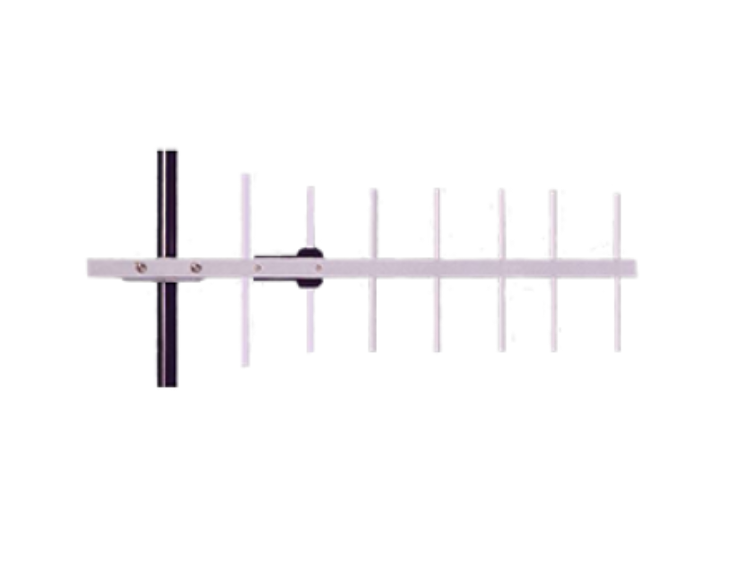

PLC1669-Rev2: Antena Yagi de 164-170 MHz para sistemas MOTUS y radios ATS o Cell Track. Alta ganancia con conector N-Hembra fijo.
PLC1669-Rev2
PLC1669-Rev2: Antena Yagi de 164-170 MHz para sistemas MOTUS y radios ATS o Cell Track. Alta ganancia con conector N-Hembra fijo.
More InfoDocumentsSpecifications ReviewsPLC1669-Rev2 es una antena Yagi direccional totalmente soldada de alta resistencia que funciona dentro del rango de frecuencia de 164-170 MHz y con una ganancia de 12,4 dBi para uso en sistemas MOTUS con radios VHF ATS o Cell Track.

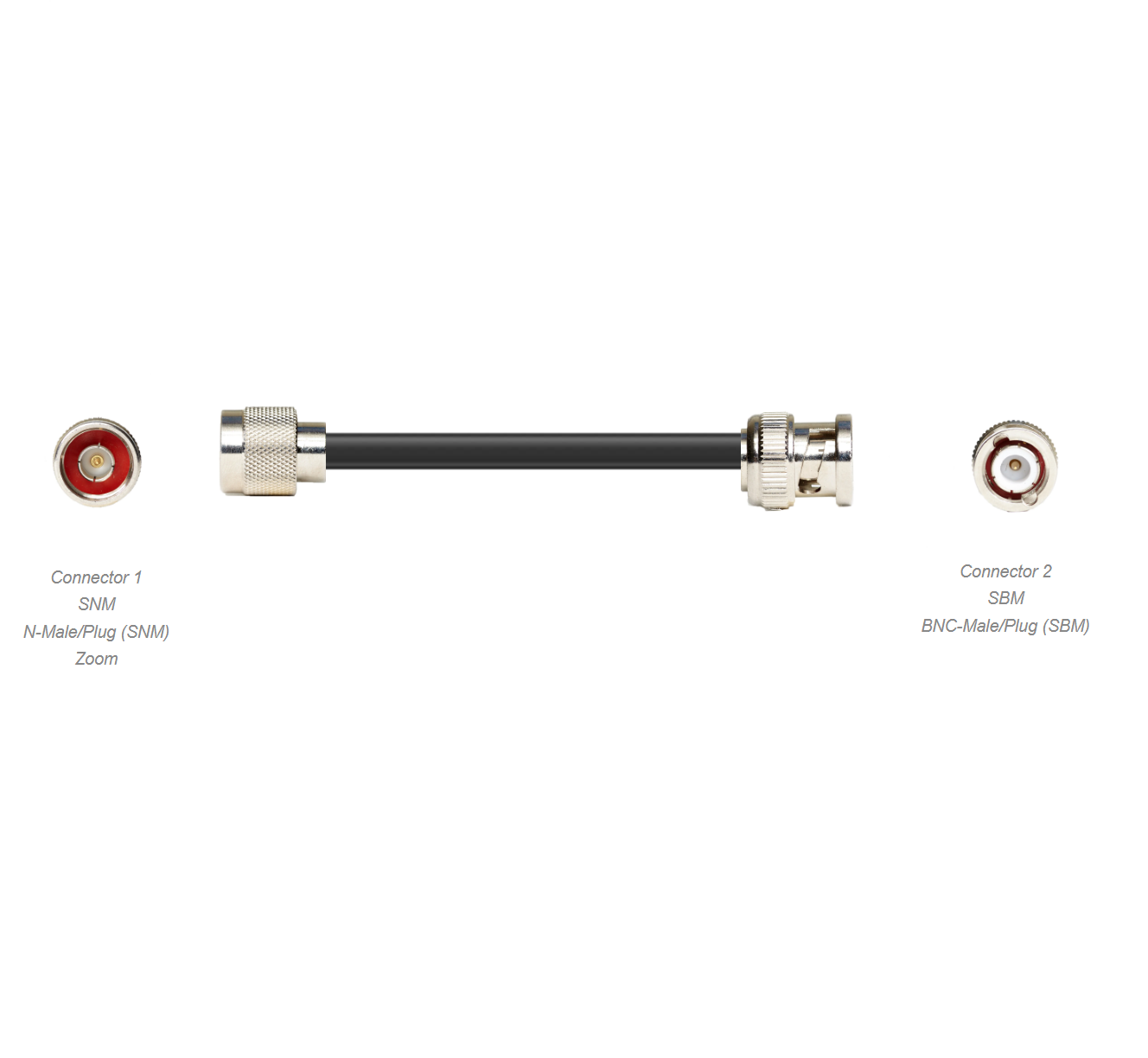

Los cables coaxiales se venden por separado. Consulte Artículos relacionados.
*Hecho en los EE.UU.*

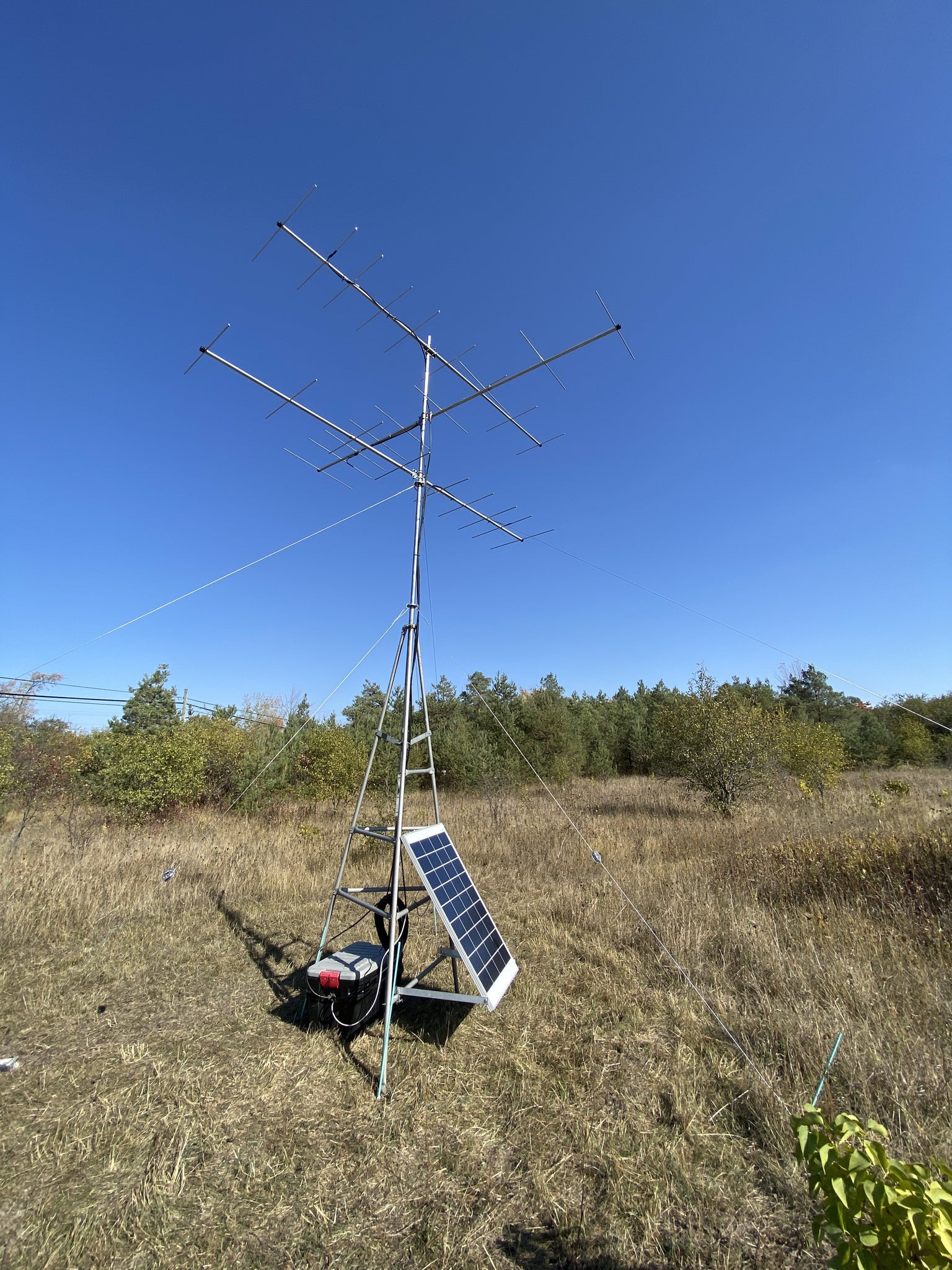

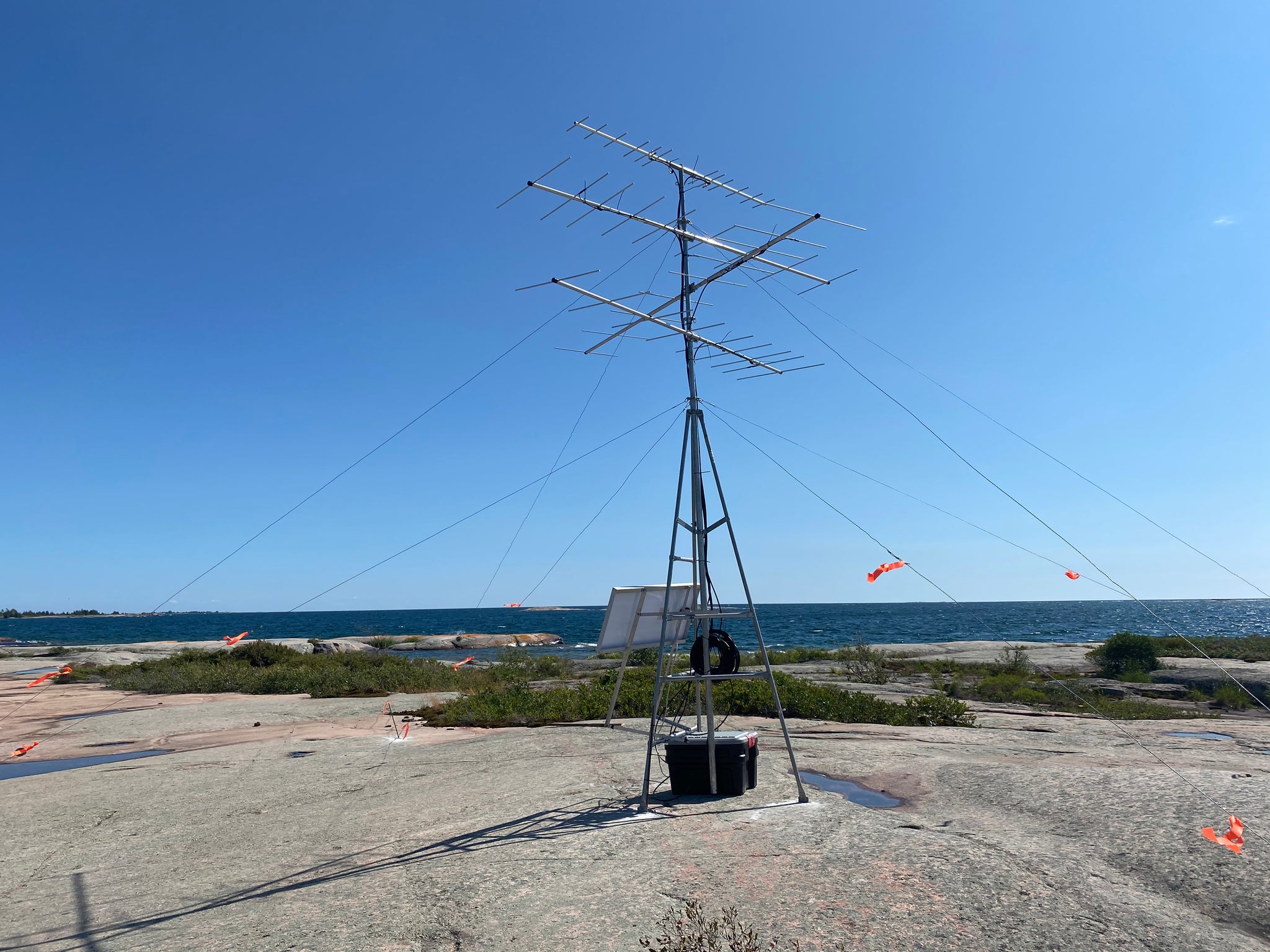

Esta antena está diseñada y utilizada comúnmente para estaciones de control y transmisión de datos VHF, así como para observatorios de aves para rastrear aves migratorias .
More Information
PLC1669-Rev2 is at heavy duty antenna operating within 164-170 MHz frequency range and with a gain of 12.4 dBi. This antenna is designed and commonly used for data transmission, control station operations, as well as by Bird Observatories to track migratory birds.
Features
- Designed for use with Cell Track / MOTUS Systems
- Frequency: 164-170 MHz Gain: 12.4 dBi
- Environmental Rating: Outdoor - IP67
- Power: 250 Watts Max Input
- Wind Load: 1.4sq.ft
- ESD Protection: DC Grounded
- Connector: N Female
- Mounting bracket included
Documents
También recomendamos
Specifications
| SKU | PLC1669rev2 |
|---|---|
| Manufacturer Part Number | PLC1669-Rev2 |
| Manufacturer | RFMAX |
| Antenna Category | VHF (132-220 MHz) |
| Working Frequency | 164-170 MHz |
| Gain | 12.4 dBi |
| Antenna Style | Yagi Antenna |
| Polarity | Dual Polarity |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Directional |
| Max Input Power (W) | 250 |
| VSWR: < X: 1 | 1.5:1 |
| Horizontal/Azimuth Beamwidth | 50 |
| Vertical/Elevation Beamwidth | 43 |
| Height/Length (inches) | 136 |
| Height/Length (mm) | 3460 |
| Weight (lbs) | 6 |
| Weight (grams) | 3000 |
| Connector 1 | N-Female |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Product Condition | New |
