BB4505CNS Antena de bobina de base negra de 32 pulgadas - Resorte NMO - 450-470 MHz NGP
BB4505CNS
BB4505CNS Antena de bobina de base negra de 32 pulgadas - Resorte NMO - 450-470 MHz NGP
More InfoDocumentsSpecifications ReviewsLa Laird BB4505CNS es una antena de látigo UHF móvil con base negra de 32 pulgadas con base NMO y resorte. Esta antena no requiere un plano de tierra metálico. Esta antena omnidireccional ofrece una ganancia de 5 dbi y una potencia máxima de 100 vatios y opera en el rango de 450MHz - 470MHz. Compatible con repetidores GMRS.
*Esta antena requiere un soporte NMO. Haga clic aquí para encontrar todos los soportes NMO con orificio pasante o los soportes NMO magnéticos que tenemos.
More Information

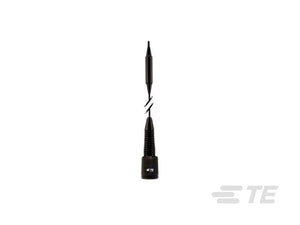

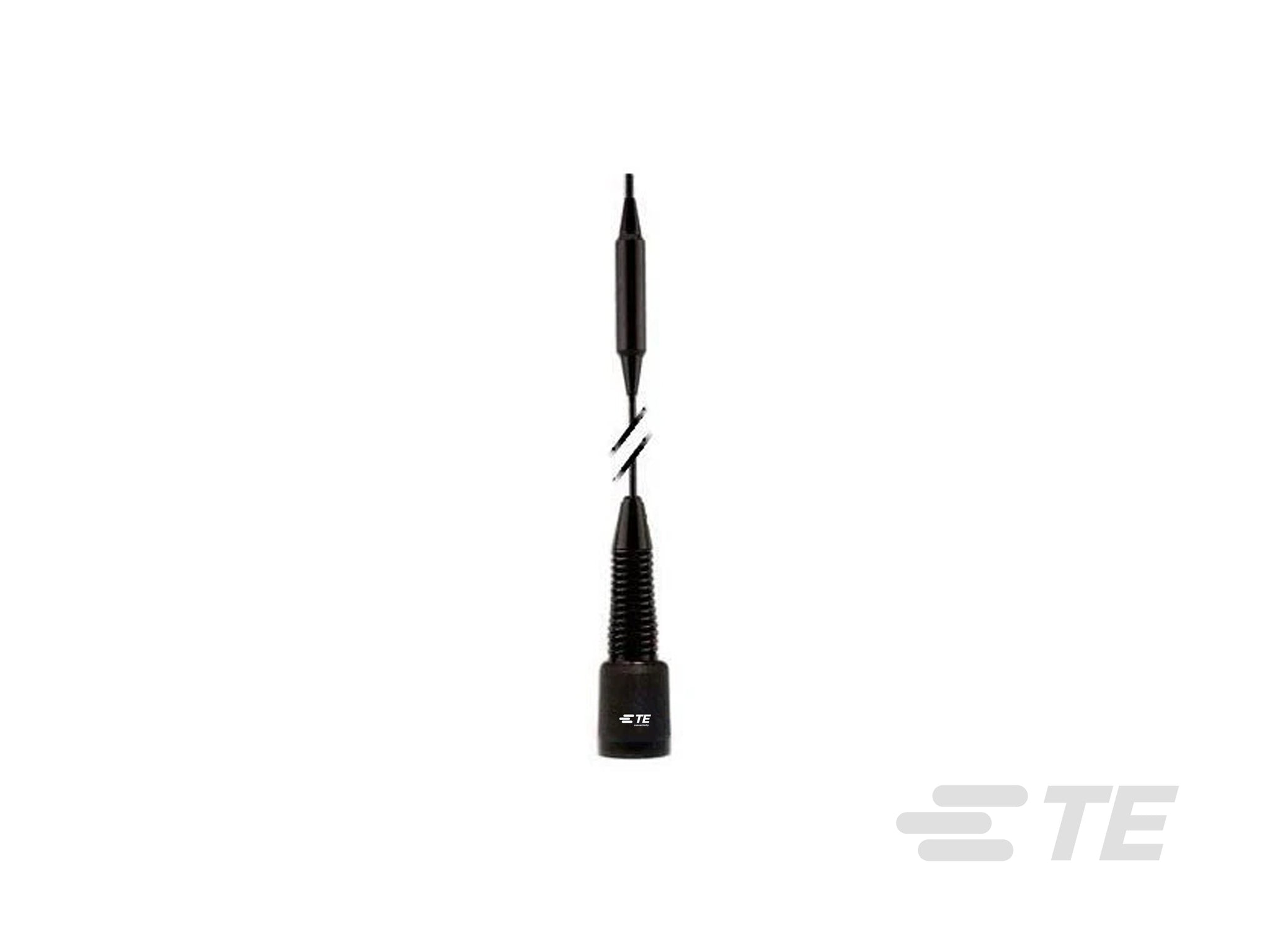

The Laird BB4505CNS is a 32 inch black base loaded mobile UHF whip antenna with NMO base and spring. This antenna does not require a metal ground plane. This omnidirectional antenna offers 5 dbi gain and 100 watts max power and operates in the 450MHz - 470MHz range.
Laird's ongoing commitment to refinement in mechanical and electrical design has resulted in the most technically advanced mobile load coil antennas on the market. Exclusive features such as stainless steel whips, housings constructed with ABS material injected molded around a solid brass insert, and gold plated push pin contacts make Laird Technologies the obvious choice for quality and long lasting value for demanding mobile radio communications.
FEATURES
- Long tuning ferrule allows for greater freedom in frequency adjustment without trimming
- High performance mobile antenna - No ground plane required
- Straight Stainless steel corona ball stays on the rod – no metal interactions
- Easy Installation / NMO mountable
- 100% tested on a network analyzer
APPLICATIONS
- Public Safety
- Transportations/Logistics
- Utilties
- Military
Documents
También recomendamos
Specifications
| SKU | BB4505CNS |
|---|---|
| Manufacturer Part Number | BB4505CNS |
| Manufacturer | Laird |
| Antenna Category | UHF (380-600 MHz) |
| Working Frequency | 450-470 MHz |
| Gain | 5dB |
| Antenna Style | Base Coil Antennas |
| Polarity | Linear |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Max Input Power (W) | 200 |
| VSWR: < X: 1 | 2:01 |
| Height/Length (inches) | 33 |
| Height/Length (mm) | 838.2 |
| Mount Style | NMO Mount |
| Color | Black |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | No |
| Product Condition | New |
