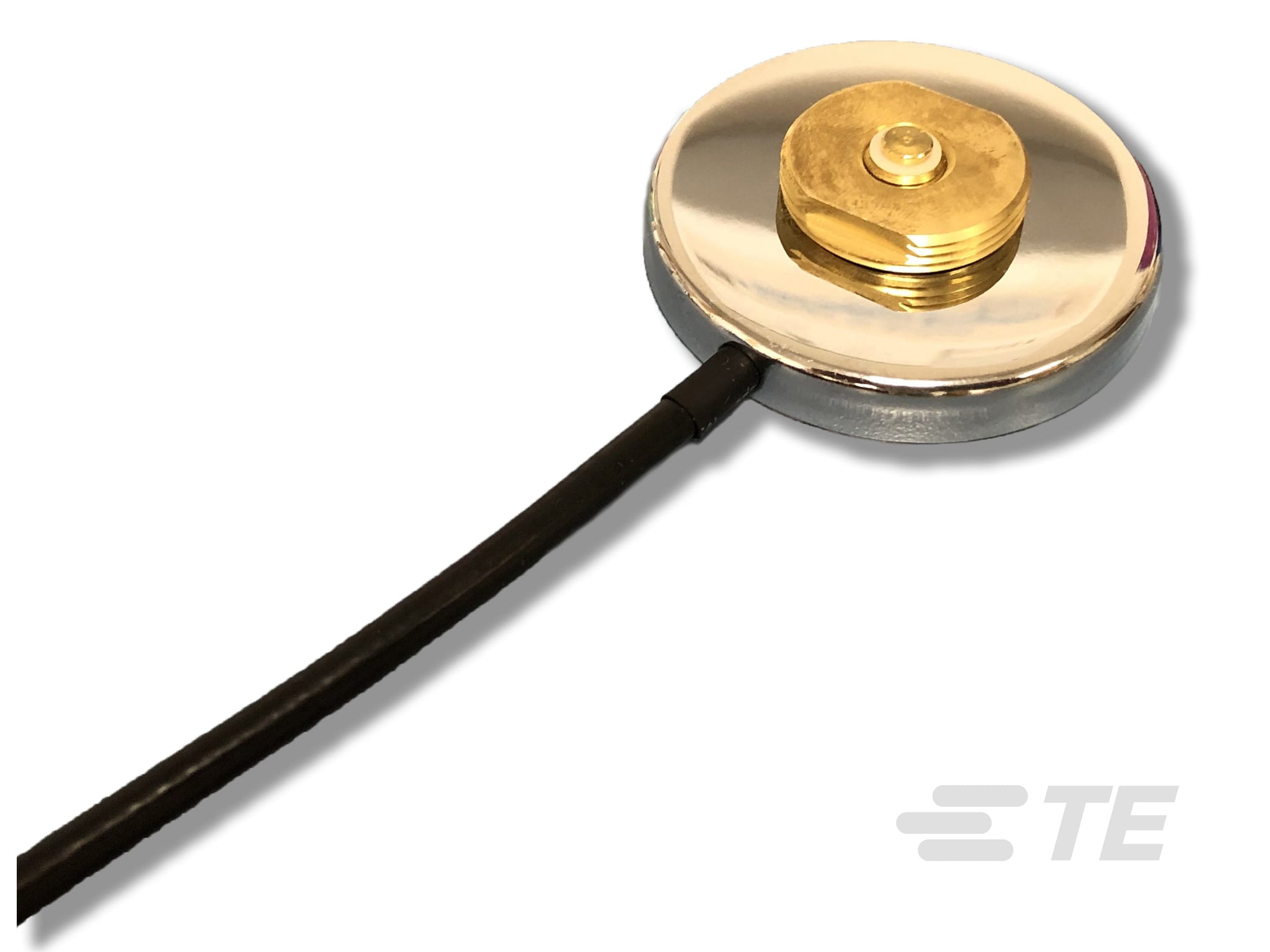

G8XTI: Soporte magnético NMO con 12 pies. Cable RG8X y conector instalado TNC-macho
G8XTI
G8XTI: Soporte magnético NMO con 12 pies. Cable RG8X y conector instalado TNC-macho
More InfoDocumentsSpecifications ReviewsEste soporte magnético NMO de Laird está optimizado para el montaje en techo de vehículos de una antena tipo NMO. Normalmente utilizado con antenas VHF o UHF, el G8XTI incluye una antena de 12 pies. Cable RG8X y TNC-Macho Instalado Instalado
Actualice a TRABAJO PESADO Soportes magnéticos con lengüeta y alivio de tensión.
Si este no es el soporte NMO que está buscando, haga clic aquí para encontrar todos los soportes NMO que tenemos o envíe un correo electrónico a customerservice@arcadianinc.com para comunicarse con uno de los miembros de nuestro equipo de servicio al cliente.
More Information
High Quality NMO cable kits and NMO magnetic mounts were the flagship product of the original Antenex Corporation, founded in Glendale Heights, IL in 1990. The company?s passion and dedication to designing and manufacturing high-performance coaxial cables like G8XTI for Magnetic vehicular mounting of NMO antennas continues to drive the company's success today. Owned by Laird Technologies since 2006, this dedicated group of Land Mobile Radio (LMR) professionals use quality materials and workmanship to produce a superior product.
FEATURES
| Cable Type | Attenuation (dB/100 ft) | ||
| 150 MHZ | 450 MHZ | 900 MHZ | |
| RG-58/U | 5.40 | 10.20 | 16.10 |
| RG-58A/U | 6.20 | 12.50 | 20.00 |
| RG8X | 3.60 | 6.80 | 10.70 |
| Solid Teflon Cable | 4.80 | 9.00 | 13.50 |
Documents
Specifications
| SKU | G8XTI |
|---|---|
| Manufacturer Part Number | G8XTI |
| Manufacturer | Laird |
| NMO Mount Type | Magnetic NMO Mount |
| Mount Style | Magnetic NMO Mount |
| Connector 1 | TNC-Male Installed |
| Cable Length (Mounts) | 12 Feet |
| Cable Type | RG8X |
| Cable Length (inches) | 144 |
| Cable Length (mm) | 43891.2 |
| Height/Length (inches) | 17 ft. / 204 inches |
| Thickness/Diameter (inches) | 3.2 |
| Thickness/Diameter (mm) | 81.28 |
| Weight (lbs) | 1 |
| Weight (grams) | 454.55 |
| Color | Chrome |
| Includes | Pre-Installed Connector |
| Vehicular | Yes |
| OK for Outdoor Use | Yes |
| Product Condition | New |
