Antena para computadora montada en vehículo Zebra Symbol VC5090 o VC10

  • Regular price $128.70 Sale price $81.25
    Precio unitario por

VC50902450GHZ


+ -
¡Solo 36 restantes!
Volume Price Breaks
Quantity: Unit Price:
10 $64.99
25 $64.99
Plazo de entrega para cantidades superiores a 36 :  Ships in 4-6 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

Antena para computadora montada en vehículo Zebra Symbol VC5090 o VC10

More InfoDocumentsSpecifications Reviews

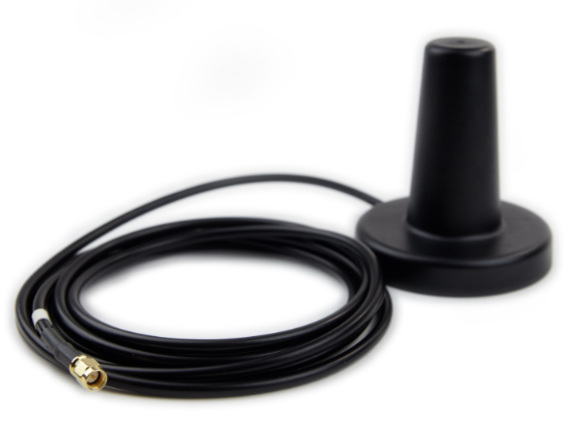

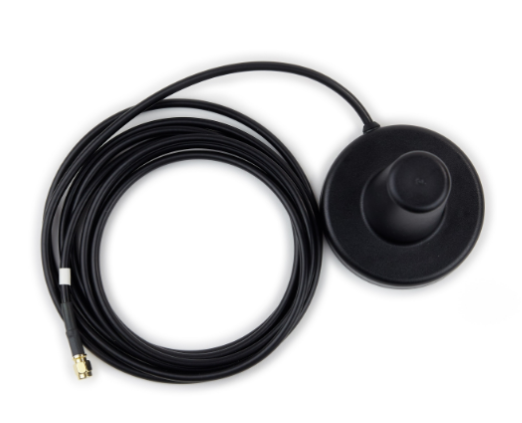

Kit de antena externa RFMAX VC5090: ¡¡¡NUEVO DISEÑO Y PRECIO MÁS BAJO!!! Este kit extensor de rango WiFi VC5090 es una combinación de antena y soporte magnético de una sola pieza para computadoras móviles resistentes montadas en vehículos Symbol / Motorola / Zebra VC5090 o VH10. Estas antenas externas para montacargas aumentan el alcance de la conectividad Wi-Fi de su VH10 o VC5090 al permitirle instalar la antena en la parte superior de su montacargas, eliminando cualquier interferencia causada por el techo protector. El kit incluye una antena de doble banda de 2,4/5 GHz, soporte magnético, cable y conector. Durante la instalación, *DEBE* configurar la configuración predeterminada de su computadora para la antena externa.


More Information

New Design & Lower Price!!! RFMAX External Antenna Kits for the Zebra VC5090 or VH10 Rugged Mobile Computers provide a significant boost of Wi-Fi connectivity to your WLAN. This kit is typically used mounted on top of a Forklift, or truck-mounted to connect your VC5090 or VH10 to the wireless network in the warehouse or distribution center.

The antenna operates at both 2.4 and 5.0 GHz with a gain of 4.5/5.5 dBi for 802.11 A,B,G,N. The ONE-PIECE antenna & magnetic NMO mount features a powerful magnet designed to mount outside the vehicle cabin or roll cage for maximum performance. During installation, you *MUST* set your computer's settings to default to the external antenna.


Documents


Specifications

SKU RSGBWMM10RSM
Manufacturer Part Number VC50902450GHZ
Manufacturer RFMAX
Antenna Category WiFi (2.4 & 5.0 GHz)
Working Frequency 2.4 - 2.5 GHz
Gain 4.5 dBi
Working Frequency 2 4.9 - 5.9 GHz
Gain 2 5.5 dBi
Antenna Style Low Profile Antenna
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
VSWR: < X: 1 2.0:1
Height/Length (inches) 3.75
Mount Style High Strength Magnetic Mount
Color Black
Connector Type Cable - Side Entry
Cable Type RG-58/U
Number of Cables 1
Cable Length (inches) 12 feet
Connector 1 RP SMA-Male
Includes antenna, mag mount, cable and connector
OK for Outdoor Use Yes
Vehicular Yes
Product Condition New



5
Out of 5.0
A graph showing this site's review totals.
Overall Rating
100%
of customers that
buy this product give
it a 4 or 5-Star rating.
VC5090 antenna kit greatly improves range
August 22, 2015 by JACQUES D.
“I've seen Motorola Zebra recommend the WTS2450-RPSMA antenna for use on the external antenna port of the VC5090, and repeatedly users get very little to no performance improvement. Why? Because when the VC5090, VC70, MH10 or any other mobile PC is used on a forklift, the roof, or overhead guard acts as a "Faraday Cage" trapping the wireless signal inside or severely distorting it. Installing a WTS2450-RPSMA antenna does not solve that problem. However, if you use an antenna kit that installs ABOVE the overhead guard, that eliminates all interference, and provides the antenna with a clear path to the WAP / wireless access point.

I have seen this VC5090 range extender antenna kit used SUCCESSFULLY for many years. The kit is comprised of an indoor / outdoor rated, high-powered antenna (for both 2.4 & 5 Ghz) a magnetic mounting base, a 12 foot coaxial cable and an RPSMA connector. When using this, or any other external antenna, it is critical that you configure your unit to "persistent" external antenna settings, or else when you re-start the unit, it will default back to using the internal antenna, thus nullifying the gains you achieve with the external antenna kit.

GIve it a try, and I think you'll agree it greatly improves the range of your VC5090 mobile PC.”
