Antena 3 en 1, 1 GPS/GNSS, 2 5G/4G LTE (MiMo), cables de 17 pies de largo | RBDM-G55-17-SSS-B
RBDM-G55-17-SSS-B
Los gastos de envío se calculan en la pantalla de pagos.
Antena 3 en 1, 1 GPS/GNSS, 2 5G/4G LTE (MiMo), cables de 17 pies de largo | RBDM-G55-17-SSS-B

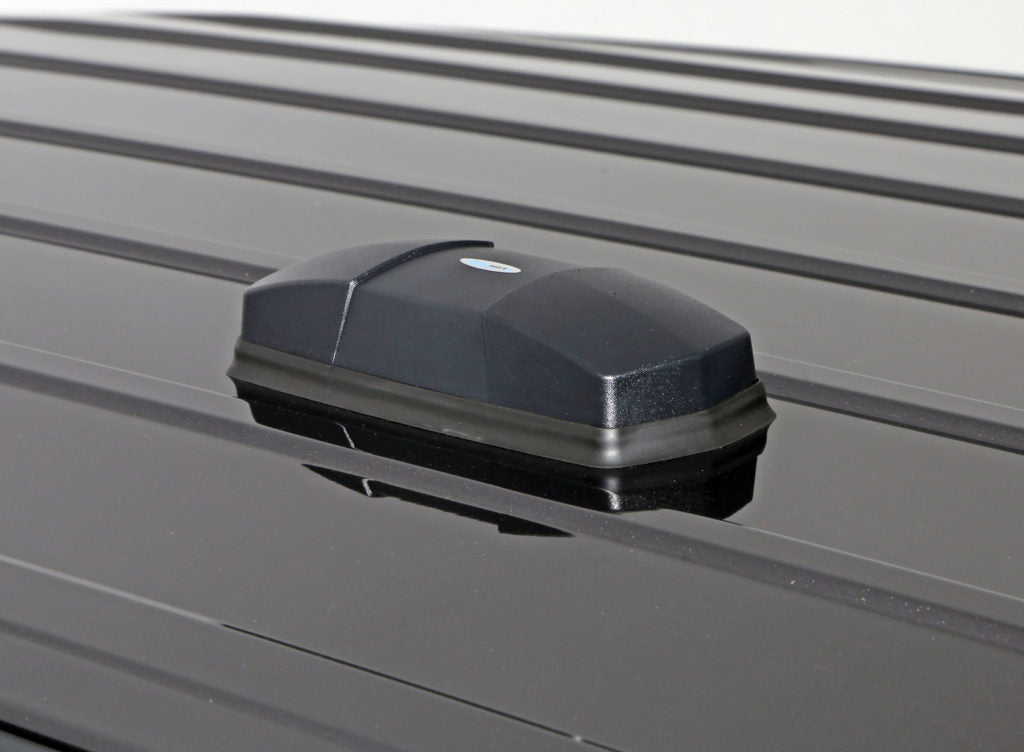

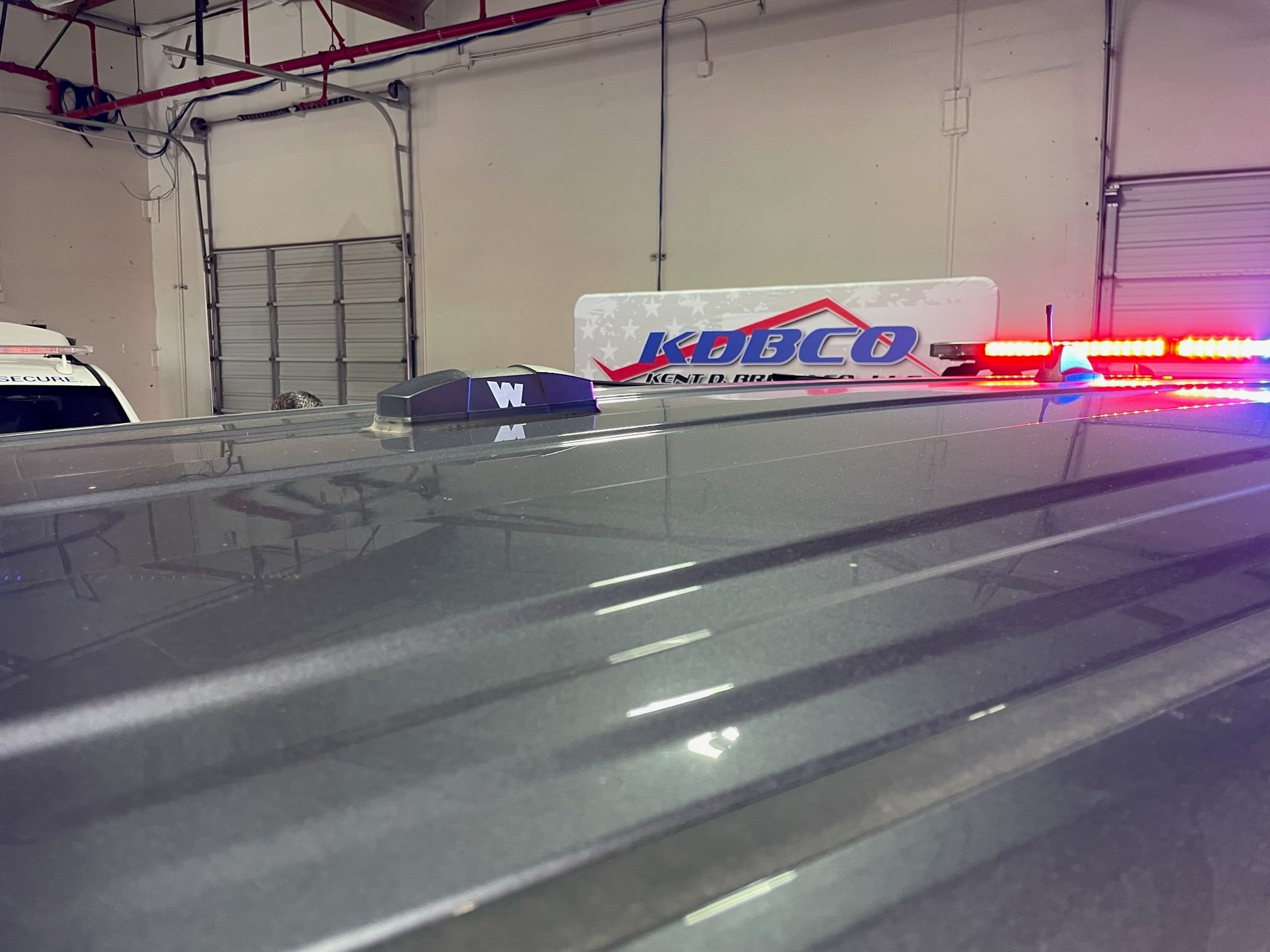

More InfoDocumentsSpecifications ReviewsLa antena RFMAX "Brick" # RBDM-G55-17-SSS-B es una antena compacta, de perfil bajo y ultrarresistente de montaje directo diseñada para aplicaciones M2M de máquina a máquina. La unidad mide 7,9 x 3,5 pulgadas, con una altura de sólo 1,8 pulgadas. Esta antena fue diseñada para superar todas las especificaciones 3G/4G/LTE/5G de los principales operadores de telefonía celular de América del Norte, incluidos AT&T, Verizon, Sprint y T-Mobile. Esta antena es la elección perfecta para recintos NEMA, vehículos utilitarios o vehículos de seguridad pública, incluido el Ford Explorer/Police Interceptor.
Optimizado para: Sierra RV50, RV55, Cradlepoint IBR200
More Information
This antenna is a drop-in replacement to the Whelan VSG. 3 in 1 (GPS & 2 Cell) antennas. 17 foot long cables with SMA male connectors.
Documents
También recomendamos
RBDM-G55WW-17-SSSRR-B
Antena 4G/5G, 5 en 1 para enrutadores celulares móviles con cables de 17 pies (Banda 71, CBRS, WiFi6) RBDM-G55WW-17-SSSRR-B
$291.00
$291.00
View Details
RBDM-G55WW-17-SSSRR-W
Antena 4G/5G, 5 en 1 para enrutadores celulares móviles con cables de 17 pies (Banda 71, CBRS, WiFi6), blanca RBDM-G55WW-17-SSSRR-W
$291.00
$291.00
View Details
RBMM-55-SS-6
Antena celular 2x2 MiMo 5G, compatible con Band 71 (4G-LTE) para comunicación de máquina a máquina, montaje magnético, negro. RBMM-55-SS-6
$105.00
$105.00
$99.00
$99.00
View Details
RDA-4G/5G-1-SSM
Antena dipolo de hoja giratoria 5G y 4G/LTE. Alta eficiencia para AT&T, Verizon, T-Mobile y Sprint Incluye Band 71 y CBRS, RDA-4G/5G-1-SSM
$20.22
$20.22
View Details
Specifications
| SKU | RBDMG5517SSSB |
|---|---|
| Manufacturer Part Number | RBDM-G55-17-SSS-B |
| Manufacturer | RFMAX |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 600-960 MHz |
| Gain | 2.5 dBi |
| Working Frequency 2 | 1710-2690 MHz |
| Gain 2 | 3.1 dBi |
| Working Frequency 3 | 2400-2500 MHz |
| Gain 3 | 3.2 dBi |
| Working Frequency 4 | 5150-5925 MHz |
| Gain 4 | 3.1 dBi |
| Working Frequency 5 | 1561-1602 MHz GPS/GNSS |
| Gain 5 | 30 dB |
| Antenna Style | "Brick" Multi-Element Antenna |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | <2:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Plenum/Fire Rating | UV Stable, UL94 Radome |
| No Of Elements | 3 |
| Height/Length (inches) | 7.9 |
| Height/Length (mm) | 202 |
| Width (inches) | 3.4 |
| Width (mm) | 88 |
| Thickness/Diameter (inches) | 1.8 |
| Thickness/Diameter (mm) | 45 |
| Weight (lbs) | 2 |
| Material | UV Stable, UL94 Radome (Black) |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | Direct Mount |
| Color | Black |
| Number of Cables | 3 |
| Cable Length (inches) | 204 |
| Connector 1 | SMA-Male |
| Connector 2 | SMA-Male |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | No |
| Product Condition | New |
