TRA6927M3PB-001 | Antena: 698-2700 MHz 3G/4G-LTE - N hembra - Requiere plano de tierra
TRA6927M3PB-001
TRA6927M3PB-001 | Antena: 698-2700 MHz 3G/4G-LTE - N hembra - Requiere plano de tierra

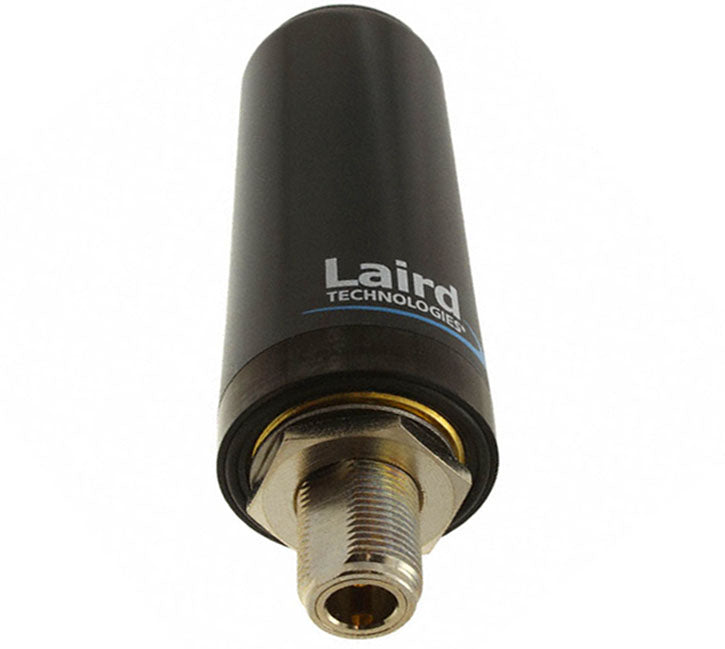

More InfoDocumentsSpecifications ReviewsEsta unidad es una antena omnidireccional estilo 'Phantom' negra con soporte N-Hembra permanente de 5/8 pulgadas que funciona en un rango de 698-2700 MHz. Esta antena ofrece una potencia potente con hasta 3 dBi de ganancia. Tenga en cuenta que este modelo REQUIERE montaje en un plano de tierra metálico para un mejor rendimiento. La serie Phantom ofrece una construcción ABS ultrarresistente que es prácticamente indestructible y tiene un historial comprobado de resistencia en el campo durante muchos años en cualquier condición. Los kits de cables y accesorios de montaje para esta antena se pueden comprar por separado.
Equivalente a la pieza PCTEL # BMLPVMB/LTE-VP.
Haga clic aquí para obtener más opciones de antena fantasma 3G/4G/LTE
More Information
The low profile, omni-directional, Phantom Antenna product line, was originally introduced by Antenex, and later acquired by Laird Technologies. The Phantom Antenna's patented technology is beneficial when high performance is desired and extreme ruggedness and low profile is required. The antenna's revolutionary design features field diversity with both vertical and horizontal polarization components. This gives the antenna diversity, frequency agility, low visibility, wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications.
Documents
También recomendamos
Specifications
| SKU | TRA6927M3PB001 |
|---|---|
| Manufacturer Part Number | TRA6927M3PB-001 |
| Manufacturer | Laird |
| Antenna Category | 4G/LTE (698-2700 MHz) |
| Working Frequency | 698-960 MHz |
| Gain | 3.5 dBi |
| Working Frequency 2 | 1710-1990 MHz |
| Gain 2 | 5.5 dbi |
| Working Frequency 3 | 2100-2700 MHz |
| Gain 3 | 4.6 dBi |
| Antenna Style | Low Profile Antenna |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohms |
| Max Input Power (W) | 100 Watts |
| Height/Length (inches) | 3.3 Inches |
| Height/Length (mm) | 83.8 mm |
| Width (inches) | 1.44 |
| Width (mm) | 36.6 |
| Weight (lbs) | 0.38 |
| Weight (grams) | 172.7 |
| Operating Temp (celsius) | (-40 C) to 85 C |
| Mount Style | N-Female-permanent 5/8 Inch mount |
| Color | Black |
| Connector Type | Connector - Bottom |
| Connector 1 | N-Female |
| Includes | Or-Ring, Star Washer, Hex Nut |
| OK for Outdoor Use | Yes |
| Vehicular | No |
| Ground Plane Required | Yes |
| Product Condition | New |
