SLPT698/2170DMNW: Antena de tránsito directo Shadow, blanca, 4,5/5,6/4 dBi, 698-960/1710-2170 2400/2700 MHz

Cantidad

0 en existencia. Sujeto al tiempo de entrega de fábrica

Tiempo de espera: Ships in 14-16 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

More Info Documents Specifications Reviews

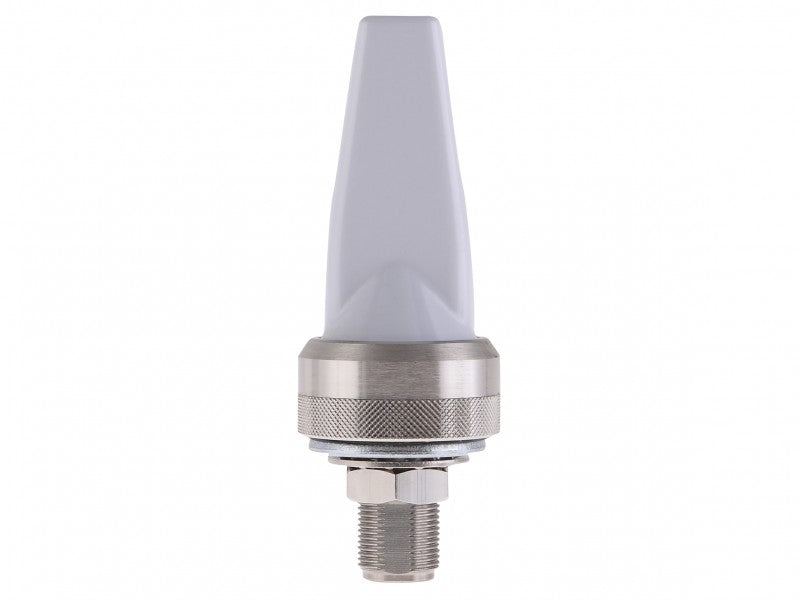

Antena Shadow Direct Transit, Blanca, 4,5 / 5,6 / 4 dBi, 698-960 / 1710-2170 2400/2700 MHz

Shadow Direct Transit Antenna, White, 4.5 / 5.6 / 4 dBi, 698-960 / 1710-2170 2400/2700 MHz

SKU	SLPT6982170DMNW
Manufacturer Part Number	SLPT698/2170DMNW
Manufacturer	Pulse
Antenna Category	4G/LTE (698-2700 MHz)
Working Frequency	698 - 960 MHz
Gain	4.5dbi
Working Frequency 2	1710 - 2400 MHz
Gain 2	5.6dBi
Working Frequency 3	2500 - 2700 MHz
Gain 3	4dBi
Antenna Style	Low Profile Antenna
Polarity	Linear
Bands	Single
Directional or Omni	Omnidirectional
Impedance	50 ohms
Max Input Power (W)	10
VSWR: < X: 1	3.0:1/ 2.0:1/ 2.2:1
Horizontal/Azimuth Beamwidth	360
Height/Length (inches)	2.5
Thickness/Diameter (inches)	1.5
Weight (lbs)	0.28
Weight (grams)	130
Material	PC+ABS Plastic
Operating Temp (celsius)	-40 to +85
Mount Style	Direct: N-Female
Color	White
Connector 1	N-Female
IP Rating	IP67
Vehicular	No
Product Condition	New
