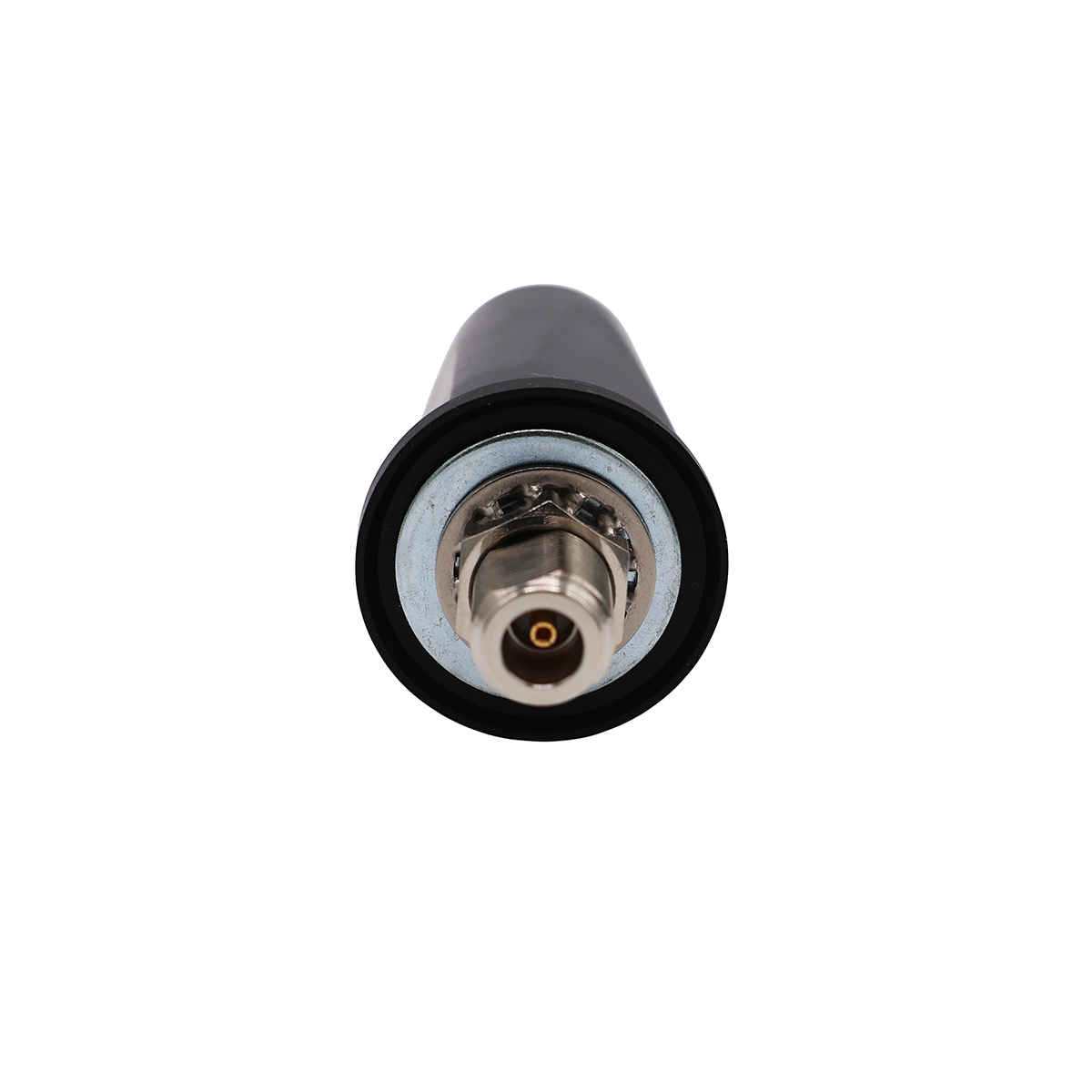

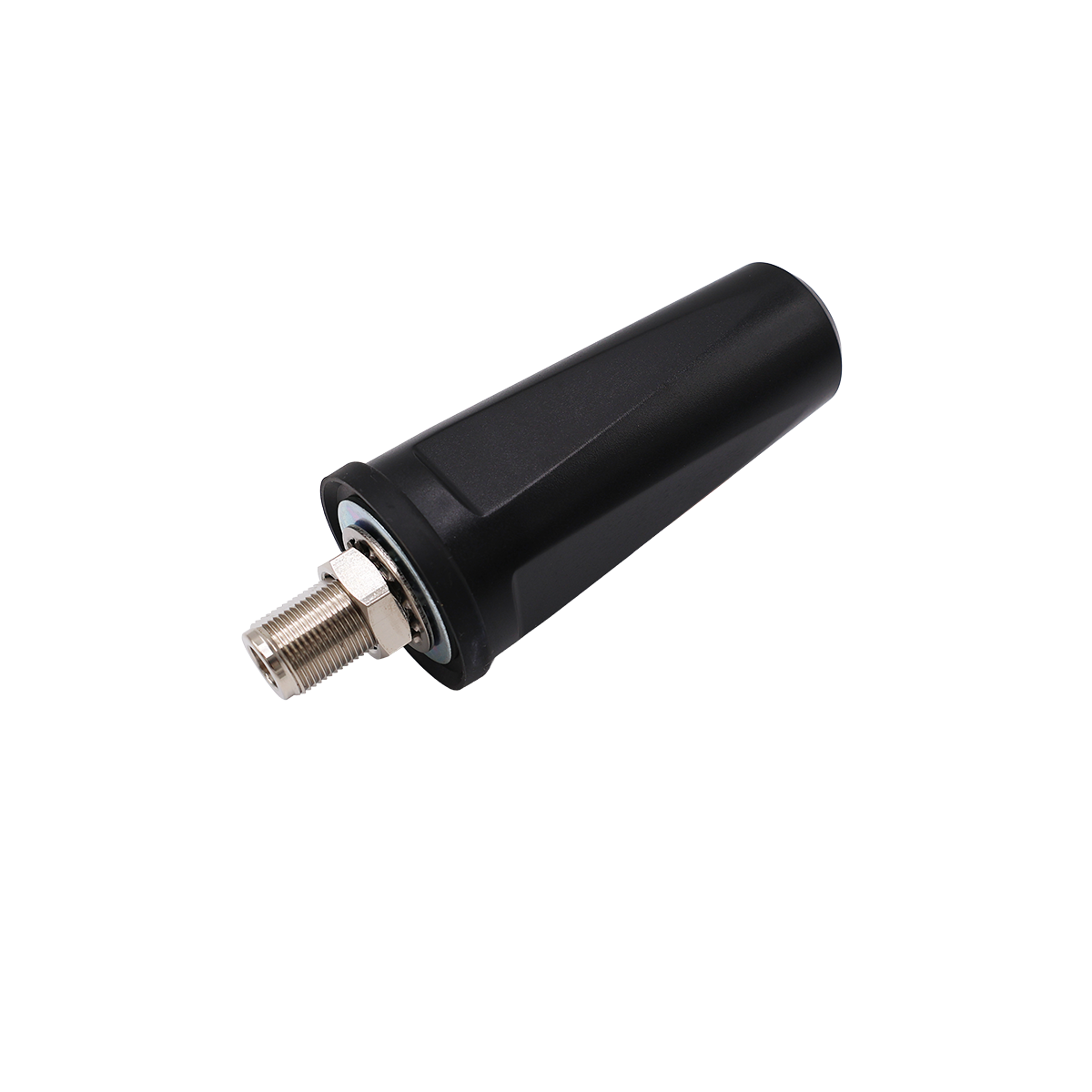

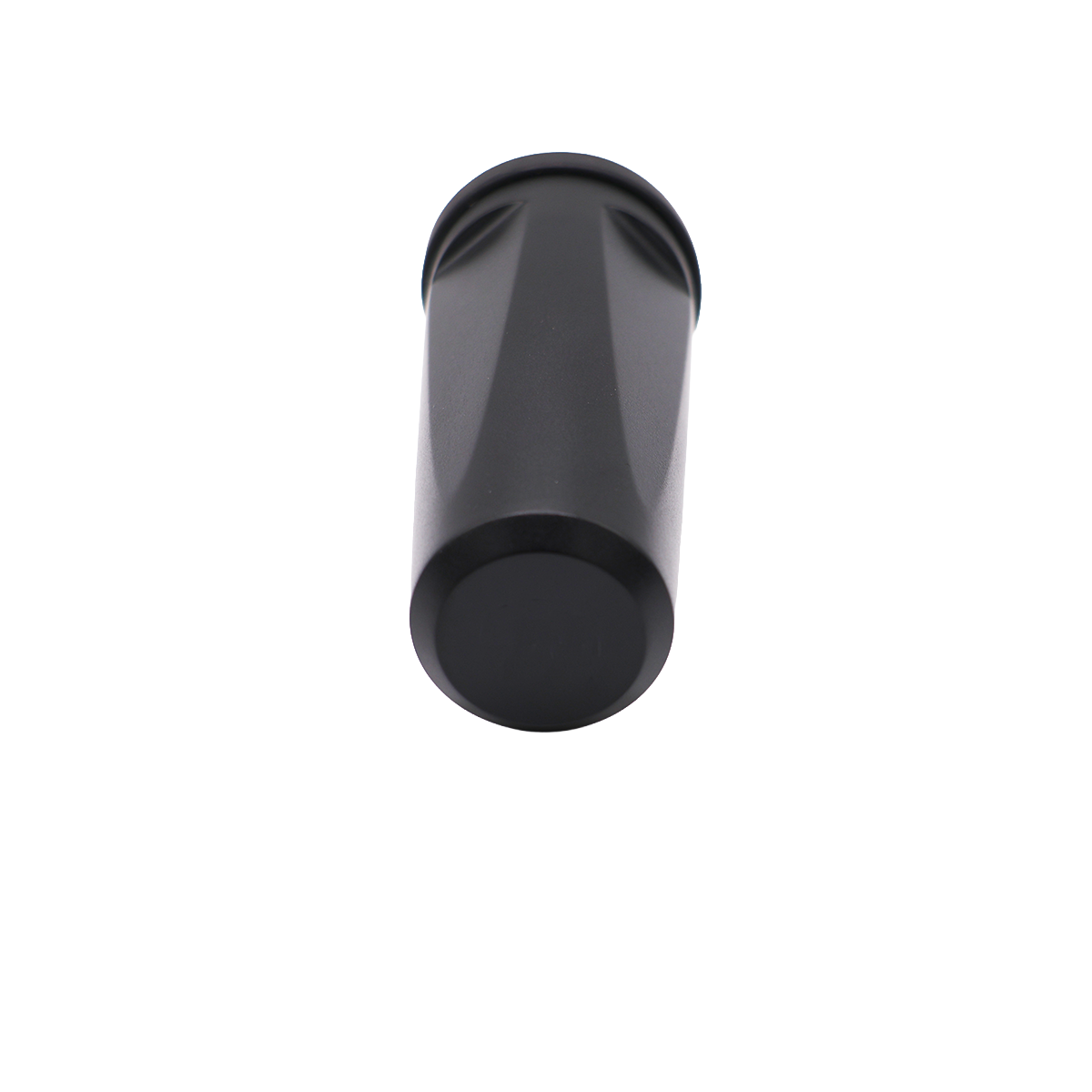

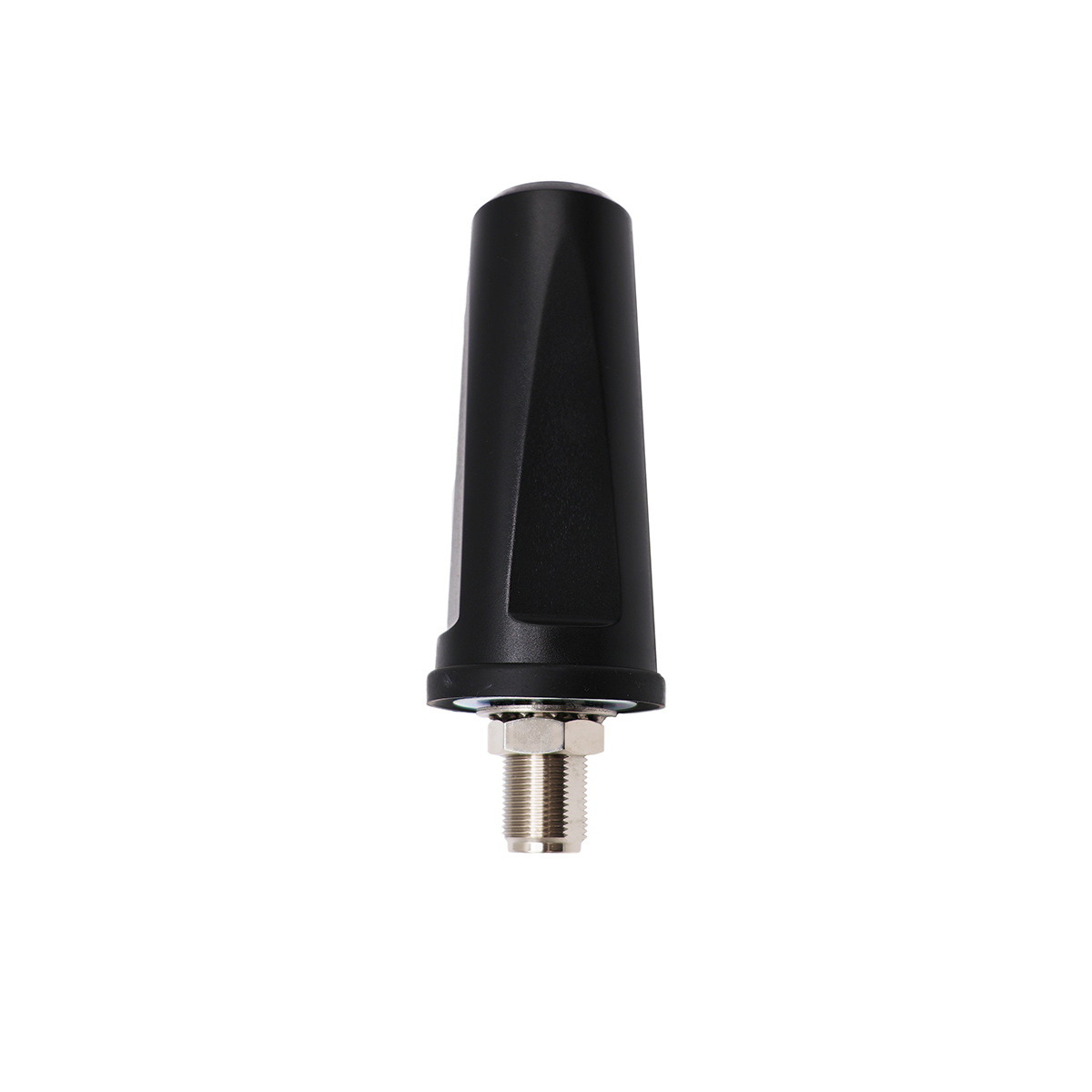

Antena Shotglass Omni Para ISM: 900 MHz, 902-928 MHz, Helio, Radio Troncal Terrestre, TETRA, LORA, LORA LAN, SCADA, 33 cm. N-Hembra Montaje Permanente IP67. RSGB-MB7K-3-NF
RSGB-MB7K-3-NF
Antena Shotglass Omni Para ISM: 900 MHz, 902-928 MHz, Helio, Radio Troncal Terrestre, TETRA, LORA, LORA LAN, SCADA, 33 cm. N-Hembra Montaje Permanente IP67. RSGB-MB7K-3-NF
More InfoDocumentsSpecifications ReviewsLa RSGB-MB7K-3-NF es una antena celular resistente, de alto rendimiento y a prueba de vandalismo de RFMAX. Esta antena IP67 de montaje directo y perfil bajo se utiliza principalmente para comunicaciones de máquina a máquina (M2M) en vehículos en las bandas ISM: 900 MHz, 902-928 MHz, helio, radio troncalizada terrestre, TETRA, LORA, LORA LAN, SCADA, 33 cm. Perfecto para aplicaciones vehiculares e industriales cuando se monta en un gabinete o quiosco. Si alta calidad a bajo costo es clave para su diseño OEM, ¡entonces esta es la antena que debe usar!
- Frecuencia: 900 MHz, 902-928 MHz
- Potencia promedio: 45 vatios
- Tamaño (diámetro x alto): 1,61 x 3,77 pulgadas
- Conector: N Hembra Montaje Permanente
- Clasificación: IP67
- De color negro
More Information
The RSGB-MB7K-3-NF is a heavy-duty, high-performance, vandal proof cellular antenna from RFMAX. This low profile, direct mount, IP67 antenna is primarily used for vehicular machine to machine (M2M) communications across the ISM bands: 900 MHz, 902-928 MHz, Helium, Terrestrial Trunked Radio, TETRA, LORA, LORA LAN, SCADA, 33 cm. Perfect for vehicular and industrial applications when mounting to a car, van, SUVs, metallic enclosure or kiosk which allows it to connect easily to the Verizon, AT&T, T-Mobile, Rogers, and Telus networks. If high quality at low cost is key to your OEM design, then this is the antenna you should be using!
- Frequency: 900 MHz, 902-928 MHz
- Gain: 3.9 - 5.4 dBi
- Average Power: 45 Watts
- Size (Dia x H): 1.61 x 3.77 Inches
- Connector: N Female Permanent Mount
- Rating: IP67
- Color: Black
Documents
También recomendamos
Specifications
| SKU | RSGBMB7K3NF |
|---|---|
| Manufacturer Part Number | RSGB-MB7K-3-NF |
| Manufacturer | RFMAX |
| Antenna Category | 900 MHz |
| Working Frequency | 902-928 MHz |
| Gain | 2 dBi |
| Gain 2 | 4 dBi |
| Antenna Style | Low Profile Antenna |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 60 Watts |
| VSWR: < X: 1 | 3:1 - 2.5:1 |
| Horizontal/Azimuth Beamwidth | 360 omni |
| Vertical/Elevation Beamwidth | 43-25 degrees |
| Height/Length (inches) | 3.77 inches (plus N-Female Connector) |
| Thickness/Diameter (inches) | 1.61 inches |
| Weight (lbs) | 0.36 Lbs |
| Weight (grams) | 163 grams |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | Direct Mount |
| Color | Black |
| Connector Type | Connector - Bottom |
| Connector 1 | N-Female |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | Yes |
| Product Condition | New |
