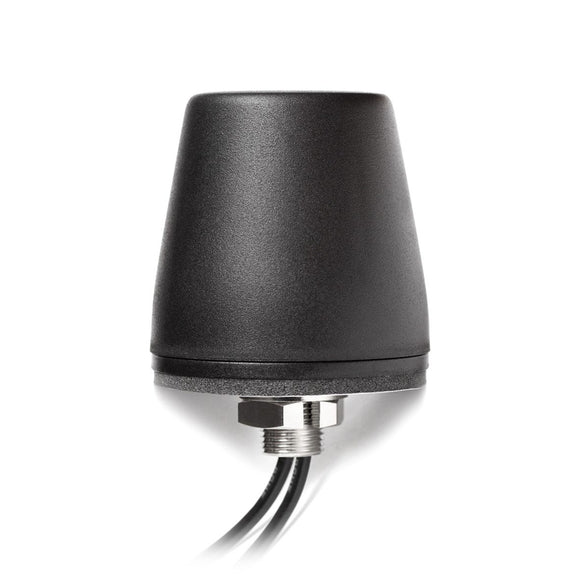

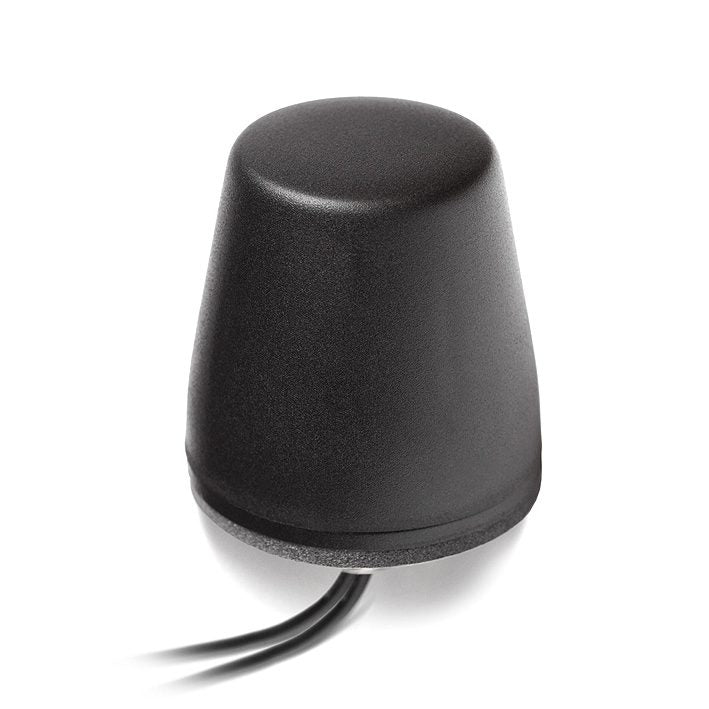

RFMAX 2-in-1 Mini Shot Glass Antenna, 1x 5GNR & 1x GNSS, 10 Feet LL-100 cable with SMA Male Connectors | RMSB-G5-10-SS-B

  • $71.50
    Precio unitario por

RMSB-G5-10-SS-B


+ -
¡Solo 3 restantes!
Plazo de entrega para cantidades superiores a 3 :  Ships in 10-12 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

RFMAX 2-in-1 Mini Shot Glass Antenna, 1x 5GNR & 1x GNSS, 10 Feet LL-100 cable with SMA Male Connectors | RMSB-G5-10-SS-B

More InfoSpecifications Reviews

RFMAX 2-in-1 Mini Shot Glass Antenna, 1x 5GNR & 1x GNSS, 10 Feet LL-100 cable with SMA Male Connectors. Small, IP67/69 rated, robust form factor ideal for IoT, IIoT, M2M, ATM, Transit & Digital Signage applications.



More Information

RFMAX 2-in-1 Mini Shot Glass Antenna, 1x 5GNR & 1x GNSS, 10 Feet LL-100 cable with SMA Male Connectors. Small, IP67/69 rated, robust form factor ideal for IoT, IIoT, M2M, ATM, Transit & Digital Signage applications.

  • Wideband 5G NR Frequency Range: 617-5925 MHz
  • GPS/Glonass Included
  • High Performance Antenna Design
  • Small Footprint for Aesthetically Pleasing Installations
    • 2" Diameter x 2" Height
  • Vandal Resistant, Screw Mount

Specifications

SKU RMSBG510SSB
Manufacturer Part Number RMSB-G5-10-SS-B
Manufacturer RFMAX
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 617-960
Gain 2.9 dBi
Working Frequency 2 1427-2690
Gain 2 2.1 dBi
Working Frequency 3 3300-5000
Gain 3 .5 dBi
Working Frequency 4 5150-5925
Gain 4 1.0 dBi
Working Frequency 5 1575/1602 - GNSS
Antenna Style Low Profile Antenna
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohms
Max Input Power (W) 25W
VSWR: < X: 1 <2:1
No Of Elements 2
Height/Length (inches) 2
Height/Length (mm) 50.8
Width (inches) 1.96
Width (mm) 50
Weight (lbs) 1
Material ASA
Operating Temp (celsius) -40 to +85
Color Black
Connector Type SMA Male, custom configuration upon request
Cable Type LL-100
Number of Cables 2
Cable Length (inches) 120
Connector 3 SMA-Male
IP Rating IP67, IP69
OK for Outdoor Use Outdoor
Vehicular Yes, 0.5" mounting hole required
Ground Plane Required Yes
Product Condition New
