WA700/2700SMA: Antena omnidireccional celular Mimo 4G-LTE 2x2 con ventosas y clips para computadora portátil o montaje en ventana
WA700/2700SMA
WA700/2700SMA: Antena omnidireccional celular Mimo 4G-LTE 2x2 con ventosas y clips para computadora portátil o montaje en ventana
More InfoDocumentsSpecifications ReviewsLa antena Pulse LTE/MIMO 2x2 (WA700-2700) es perfecta para usar como computadora portátil o como antena MIMO celular 4G LTE multibanda 2x2 montada en ventana. Esta antena opera en todo el espectro 3G/4G/LTE para todos los proveedores (AT&T, Verizon, Sprint, etc.) desde 700 MHz hasta 2700 MHz. La antena es ideal para mejorar la recepción de voz y datos móviles y también funcionará para aplicaciones de seguridad pública vehicular con los populares módems LTE actuales.
Además, se ha demostrado que esta antena es una gran combinación con el sistema en módulo (SOM) PicoZed SDR 2x2 basado en Xilinx Z-7035 y Analog Devices AD9361.
More Information

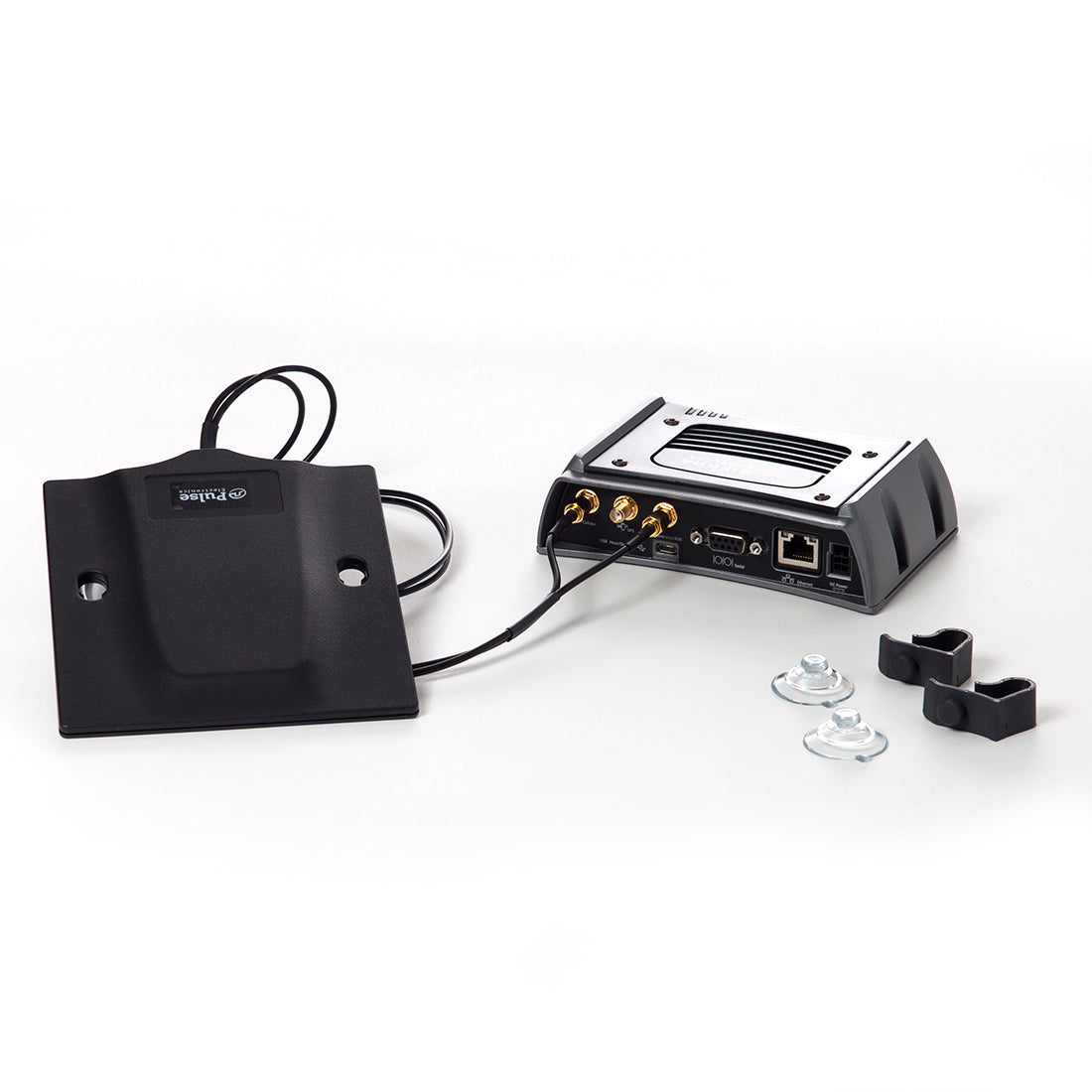

The WA700/2700SMA from Pulse/Larsen is perfect for use as a laptop or window mount 2x2 multiband 4G LTE cellular MIMO antenna. This antenna operates through the entire 3G/4G/LTE spectrum for modems from all cariers (AT&T, Verizon, Sprint, etc) from 700 MHz through 2700 MHz. The antenna is ideal for enhancing reception for voice, mobile data and will work for vehicular public safety applications with today's popular LTE modems.

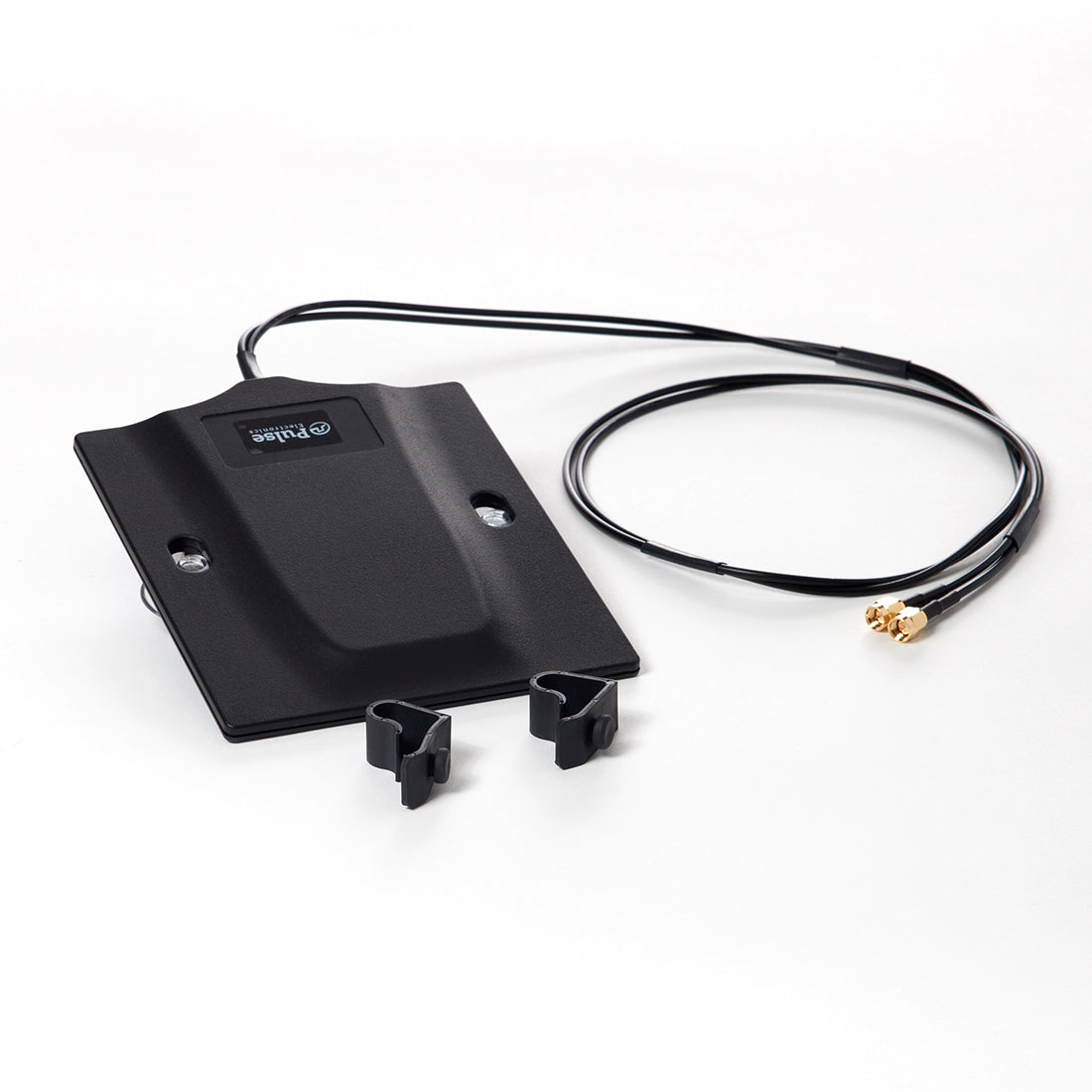

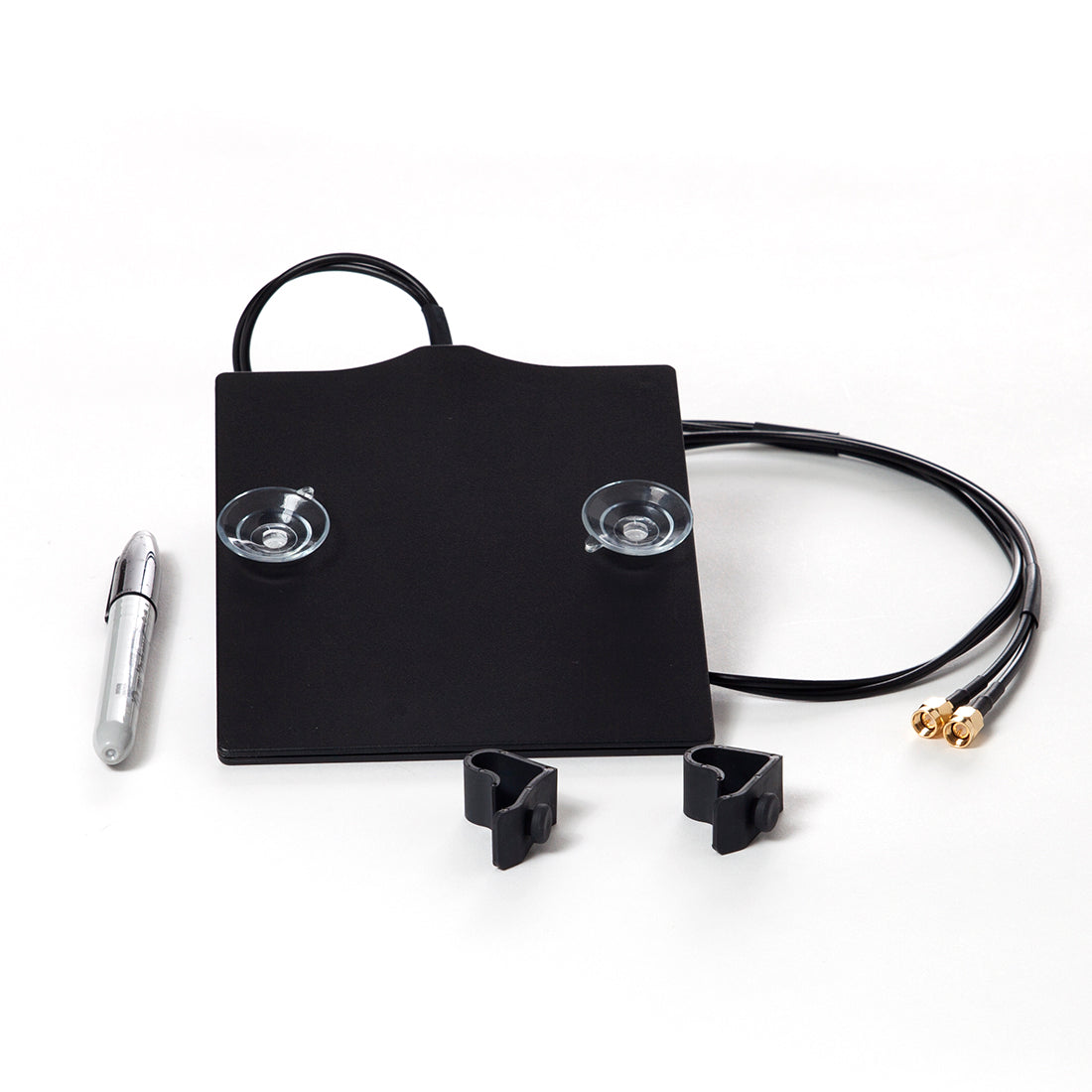

The antenna can be mounted above a laptop screen or hung on a home window or vehicle window using the provided clips or heavy duty suction cups. Standard connector is SMA Male with 40 inches of cable length.
Features
- 2x2 MIMO antenna configuration for maximum connection speed
- Covers all 3G/4G/LTE frequencies (700-960/1710-1990/2110-2170/ 2500-2700 MHz)
- Omnidirectional coverage pattern - easy to position.

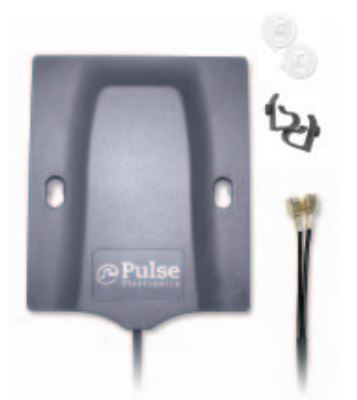

- Comes with Clip mount connectors and Suction Cup mounts
- Ships with two 40 inch cables, each with standard SMA male connector
- Small size, Big Performance: Measures only 5.85 x 5 x 0.2 inches (149 x 127 x 5.1 mm)
- RoHS compliant product
Documents
Specifications
| SKU | WA7002700SMA |
|---|---|
| Manufacturer Part Number | WA700/2700SMA |
| Manufacturer | Pulse |
| Antenna Category | 4G/LTE (698-2700 MHz) |
| Working Frequency | 700-960 MHz |
| Gain | 2.5 dBi |
| Working Frequency 2 | 1710-2700 MHz |
| Gain 2 | 3.5 dBi |
| Antenna Style | Multi Element/Band Antenna |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 2 Watts |
| VSWR: < X: 1 | 2.5:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 5.85 |
| Height/Length (mm) | 149 |
| Width (inches) | 5 |
| Width (mm) | 127 |
| Thickness/Diameter (inches) | 0.2 |
| Thickness/Diameter (mm) | 5.1 |
| Weight (lbs) | 0.3 |
| Weight (grams) | 132 |
| Material | PC/ABS |
| Mount Style | Suction Cup or Clip Mounted |
| Color | Black |
| Cable Type | RG-174 |
| Number of Cables | 2 |
| Cable Length (inches) | 40 |
| Connector 1 | SMA-Male |
| Includes | Two Clips & Two Suction Cups |
| Vehicular | Yes |
| Product Condition | New |
