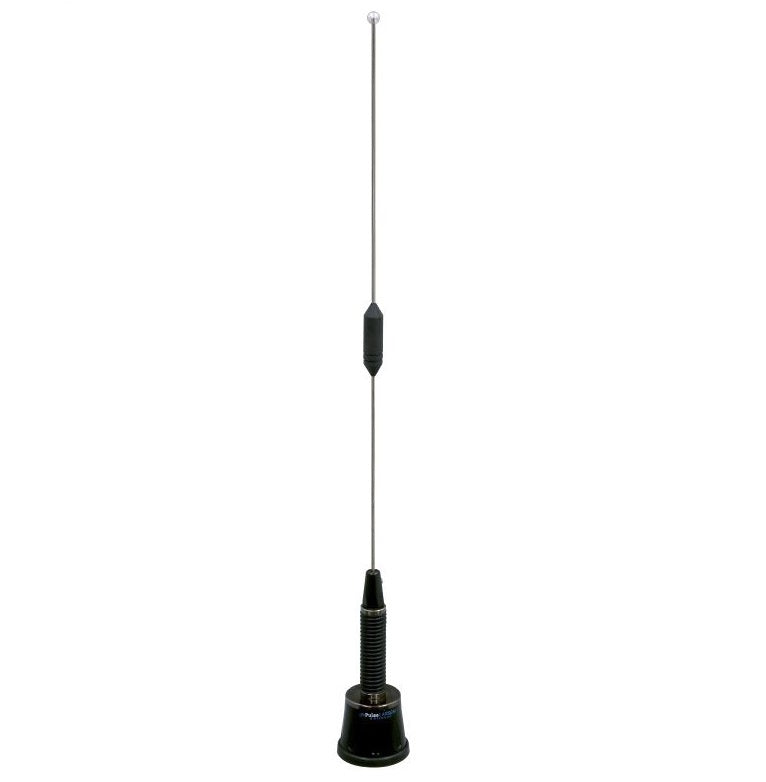

NMO150/450/758SF Antena Tribanda 150/450/758, 0dBi/5dBi/4dBi

  • $68.14
    Precio unitario por

NMO150/450/758SF


+ -
¡Solo 134 restantes!
Plazo de entrega para cantidades superiores a 134 :  Ships in 12-14 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

NMO150/450/758SF Antena Tribanda 150/450/758, 0dBi/5dBi/4dBi

More InfoDocumentsSpecifications Reviews

NMO150/450/758SF funciona en 150-174 MHz, 430-520 MHz y 750-870 MHz VHF, UHF y 700/800 MHz. Las especificaciones de ganancia son 0dBi/5dBi/4dBi respectivamente.



    More Information


    Specifications

    SKU NMO150450758SF
    Manufacturer Part Number NMO150/450/758SF
    Manufacturer Pulse
    Antenna Category Tri-band (VHF-UHF-700/800 MHz)
    Working Frequency VHF:150-174 MHz
    Gain Unity 0 dBi
    Working Frequency 2 UHF: 430-520 MHz
    Gain 2 5 dBi
    Working Frequency 3 P25: 700/800: 750-870 MHz
    Gain 3 4 dBi
    Antenna Style Base Coil Antennas
    Polarity Vertical
    Bands Multi
    SISO or MIMO SISO
    Directional or Omni Omnidirectional
    Impedance 50 Ohms
    Max Input Power (W) 100 Watts
    VSWR: < X: 1 <2:1 at 150-165, 430-490 & 750-870 MHz. <2.5:1 at 165-174 & 490-520 MHz
    Spring Loaded Yes
    Height/Length (inches) 17.81 inches
    Height/Length (mm) 452.5 mm
    Thickness/Diameter (inches) 1.61 inches
    Thickness/Diameter (mm) 40.9 mm
    Weight (lbs) 0.45 lbs.
    Weight (grams) 205 grams
    Material Stainless Steel
    Operating Temp (celsius) -40 to +85 C
    Mount Style NMO
    Color Black
    Connector 1 NMO
    IP Rating IP67
    OK for Outdoor Use Yes
    Vehicular Yes
    Product Condition New
