DASUTCCR5004310 Soporte de techo serie Clarity para 2g, 3g, 4g(lte) y banda Wifi con conector DIN hembra (reflector incluido)

  • Regular price $445.48 Sale price $267.59
    Precio unitario por

DASUTCCR5004310


+ -
0 en existencia. Sujeto al tiempo de entrega de fábrica
Tiempo de espera:  Ships in 14-16 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

DASUTCCR5004310 Soporte de techo serie Clarity para 2g, 3g, 4g(lte) y banda Wifi con conector DIN hembra (reflector incluido)

More InfoDocumentsSpecifications Reviews

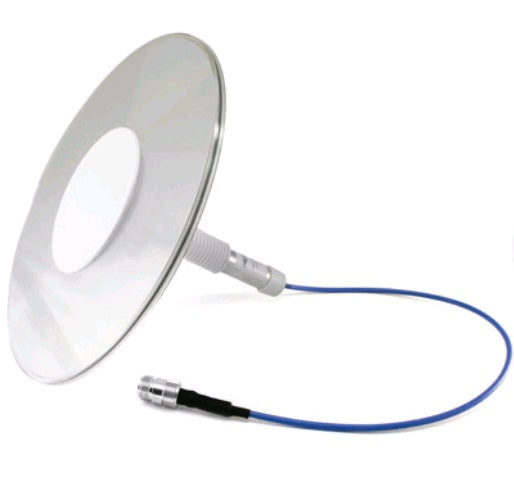

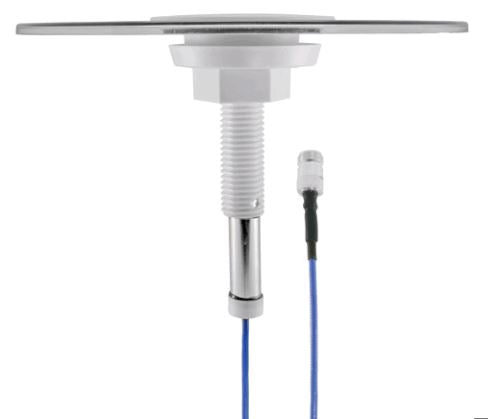

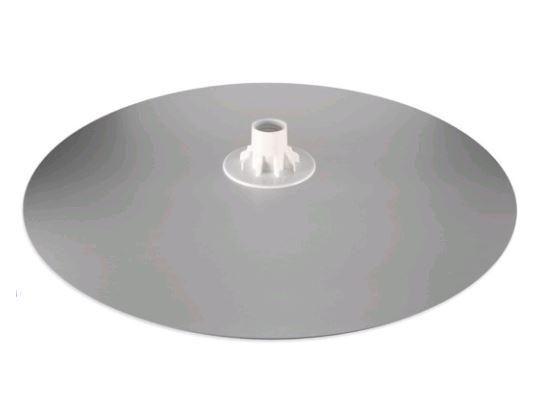

Soporte de techo ultrafino translúcido serie Clarity para banda 2g, 3g, 4g(lte) y wifi con conector hembra 4.3-10 DIN (reflector incluido)

-Antena omnidireccional interior de montaje en techo para banda T-Mobile 600 MHz 4G/LTE (610-698 MHz)



More Information

Clarity series translucent ultra thin ceiling mount for 2g, 3g, 4g(lte) and wifi band with 4.3-10 DIN female connector (reflector included)

Documents


Specifications

SKU DASUTCCR5004310
Manufacturer Part Number DASUTCCR5004310
Manufacturer Pulse
Antenna Category iDAS
Working Frequency 608-960 MHz
Gain 7dBi
Working Frequency 2 1695-2200 MHz
Gain 2 7dBi
Working Frequency 3 2300-2700 MHz
Gain 3 5dBi
Antenna Style iDAS Antennas
Polarity Linear
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohm
Max Input Power (W) 40
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth 360
Vertical/Elevation Beamwidth 100
Pim Rating (@ 2x20 W) -155
Height/Length (inches) 6.78
Height/Length (mm) 172.2
Width (inches) 9.41
Width (mm) 239
Weight (lbs) 1.65
Weight (grams) 750
Cable Length (inches) 19.7
Cable Length (mm) 500
Connector 1 4.3-10 DIN Female
Product Condition New
