N703LTSTM: Antena integrada multibanda (698-960 MHz, 1710-2170 MHz, 2300-2690 MHz) para bandas LTE optimizadas con montaje SMT
N703LTSTM
N703LTSTM: Antena integrada multibanda (698-960 MHz, 1710-2170 MHz, 2300-2690 MHz) para bandas LTE optimizadas con montaje SMT
More InfoDocumentsSpecifications ReviewsN703LTSTM: Antena integrada multibanda (698-960MHz, 1710-2170MHz, 2300-2690MHz) para bandas LTE. La antena LTE montada en superficie modelo N703LTSTM incorpora una huella de soporte estable utilizando conexiones de pines SMT, lo que simplifica el uso en nuevos diseños de PCB.
N703LTSTM están empaquetados en una bandeja . Cada bandeja tiene 200 unidades.
More Information

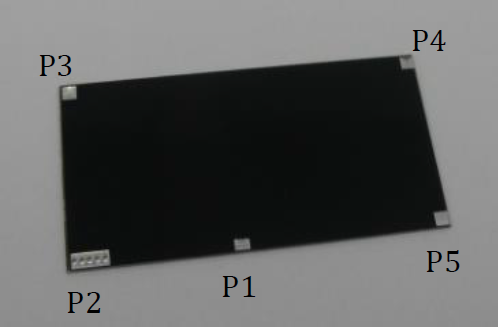

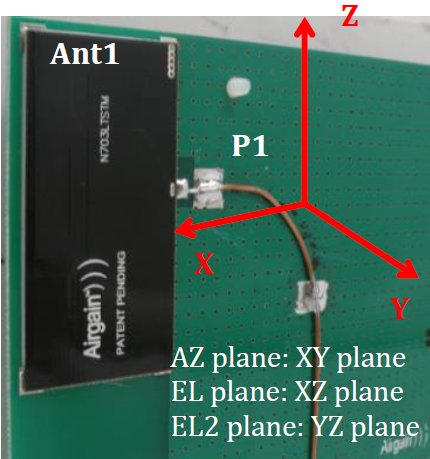

The Model N703LTSTM Embedded multiband LTE Antenna provides a wide band and high efficiency, embedded antenna solution for low power applications in the LTE bands. As efficient, embedded antenna solutions become the focus of next generation wireless product design, the Model N703LTSTM antenna provides the combination of low cost and small size with top performance. The antenna was designed to accommodate wireless communication device applications, such as AP/Router, Cellular Phone, Tablet computer and etc. The N703LTSTM is optimized for SMT mounting on a printed circuit board utilizing a micro strip-line RF interface. It is easily integrated into a PCB design.
The N703LTSTM Embedded LTE Antenna is defined by the following features:
- LTE bands (698-960MHz, 1710-2170MHz, 2300-2690MHz)

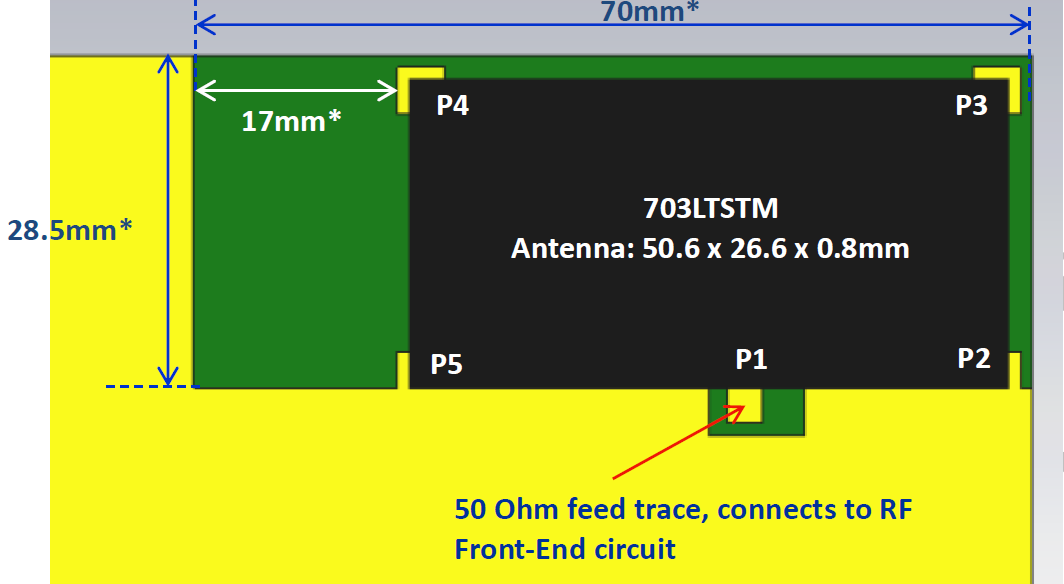

- Optimized for PCB SMT mounting in applications

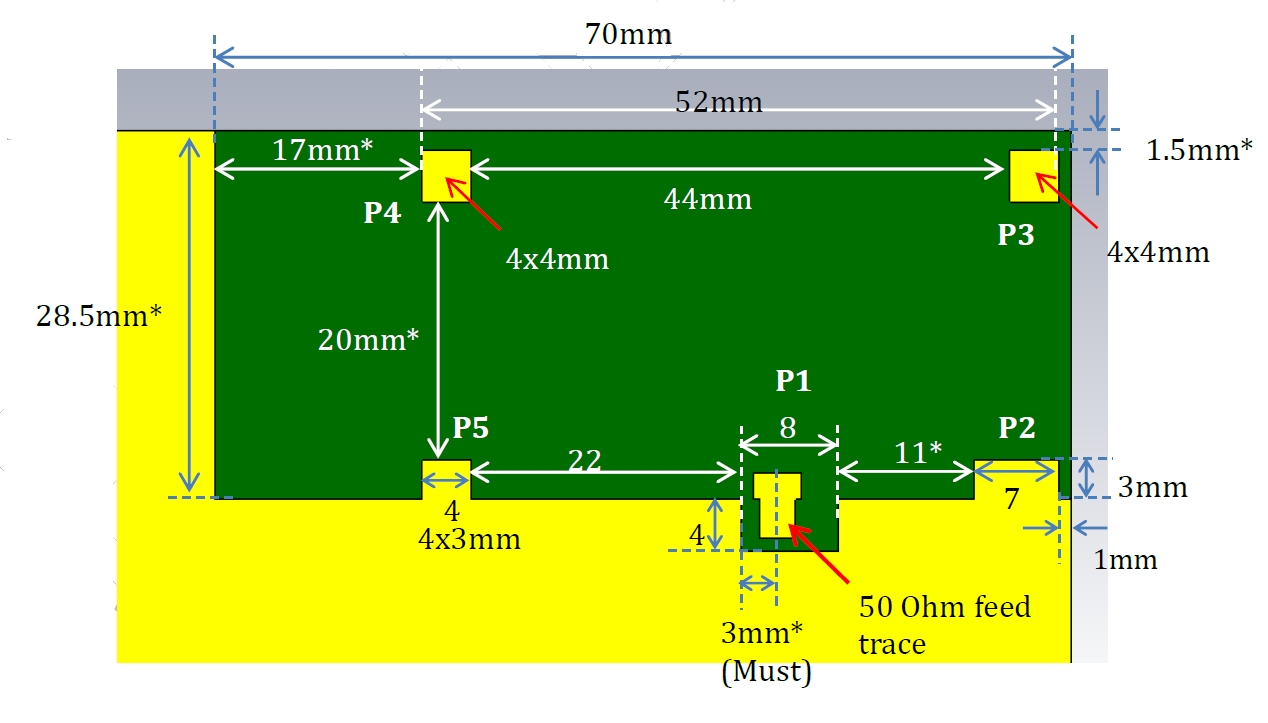

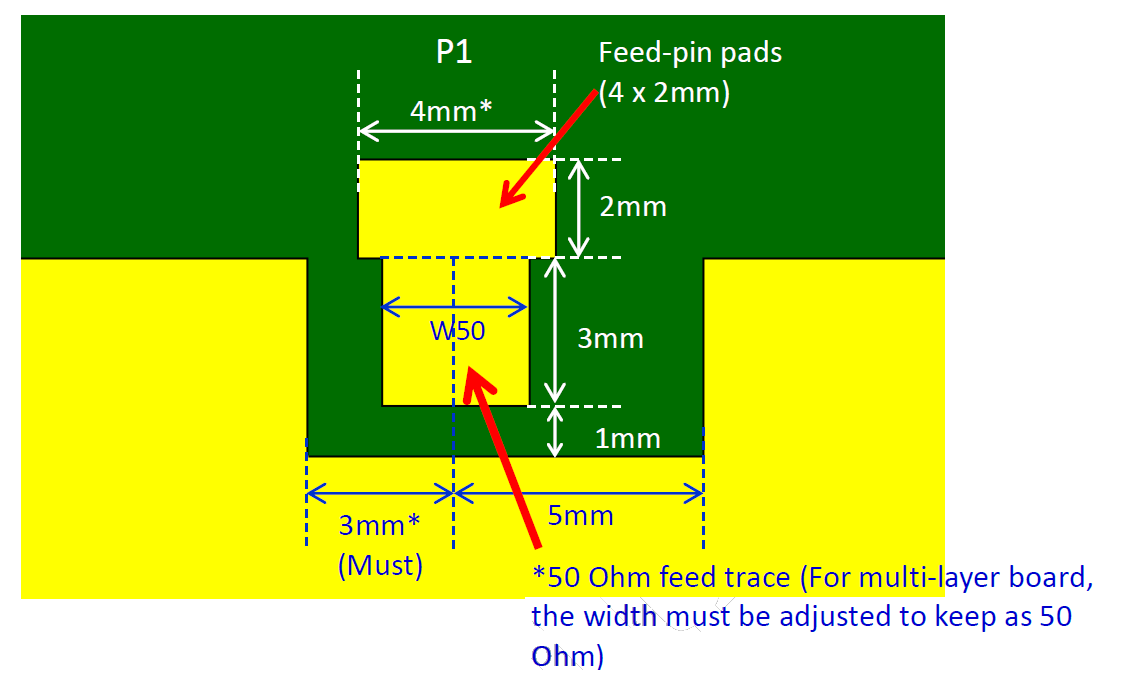

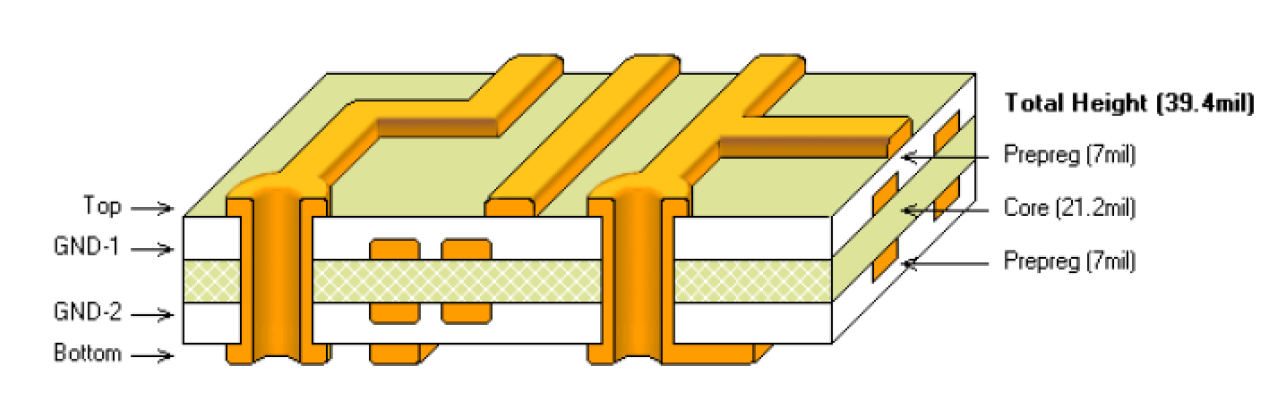

- PCB Micro-strip line RF interface

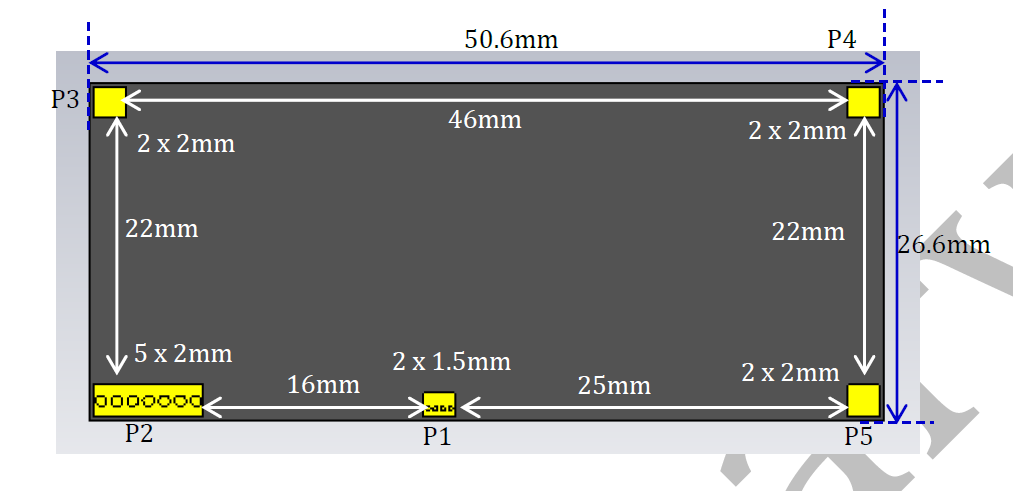

- Low Profile, 0.8 mm high

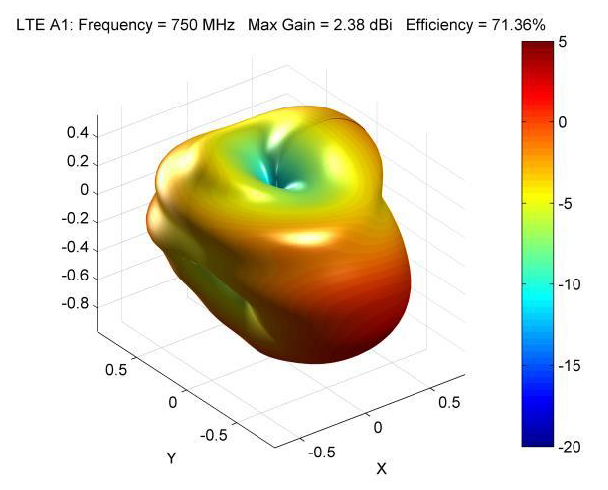

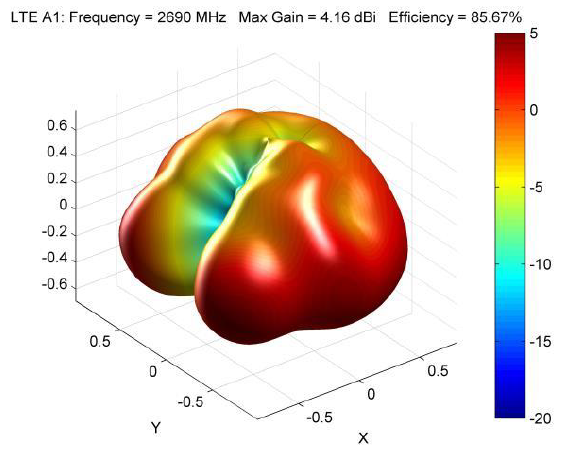

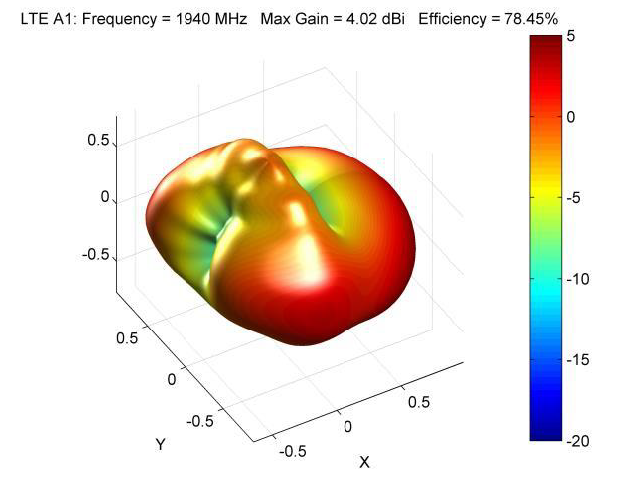

- Peak gain +2.4dBi@750MHz, +4.0dBi@1940MHz, +4.2dBi@ 2690MHz
- High efficiency (>45% for 698-960MHz, >60% for 1710-2170MHz and 2300-2690MHz)
- Quick integration
Documents
Specifications

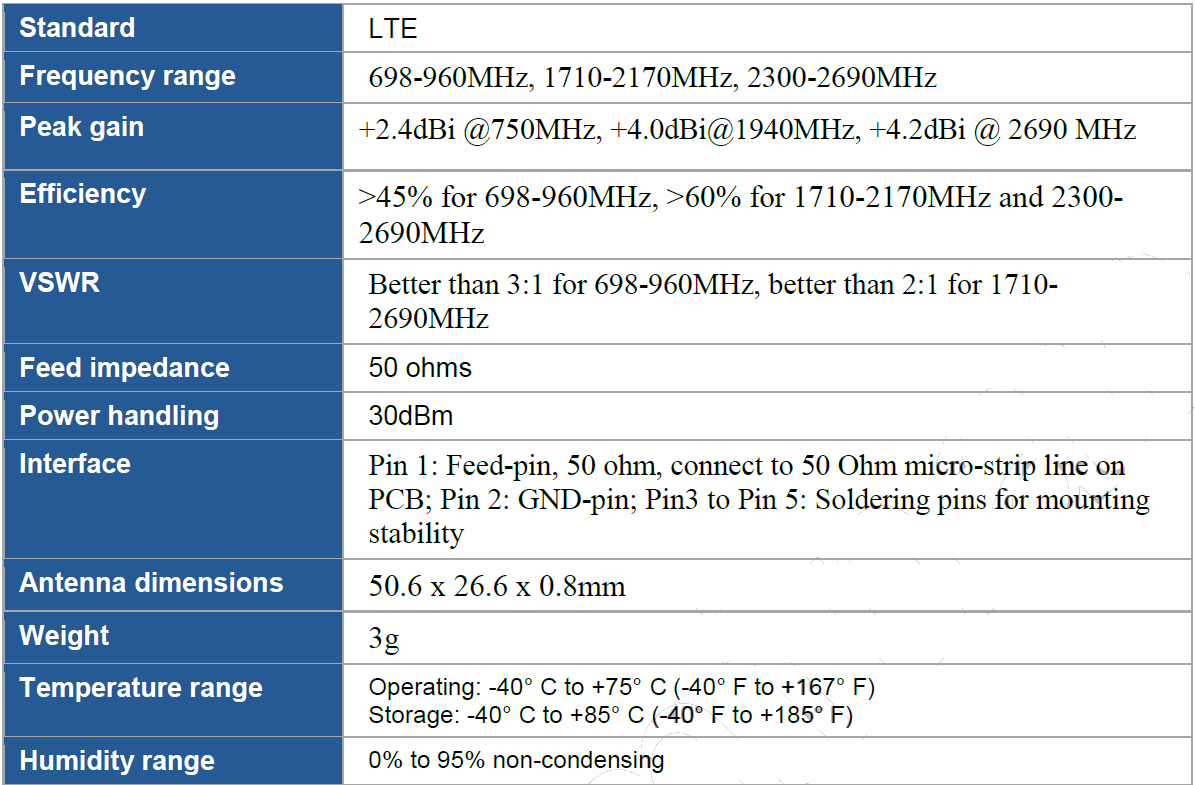

| SKU | N703LTSTM |
|---|---|
| Manufacturer Part Number | N703LTSTM |
| Manufacturer | Airgain |
| Antenna Style | Internal / Embedded |
| Antenna Category | 4G/LTE (698-2700 MHz) |
| Bands | Multi |
| SISO or MIMO | SISO |
| Frequency | 698-960 MHz |
| Gain 1 | 2.4 dBi |
| Frequency 2 | 1710-2170 MHz |
| Gain 2 | 4.0 dBi |
| Frequency 3 | 2300-2690 MHz |
| Gain 3 | 4.2 dBi |
| Connector 1 | SMT Soldering Pads/Pins |
| Impedance | 50 Ohm |
| Max Input Power (W) | 1 |
| VSWR: < X: 1 | 2:01 |
| Height/Length (inches) | 1.99 |
| Height/Length (mm) | 50.6 |
| Width (inches) | 1.05 |
| Width (mm) | 26.6 |
| Thickness/Diameter (inches) | 0.03 |
| Thickness/Diameter (mm) | 0.8 |
| Weight (lbs) | 0.007 |
| Weight (grams) | 3 |
| Material | Plastic |
| Operating Temp (celsius) | -40° C to +75° C |
| Color | Black |
| Product Condition | New |
