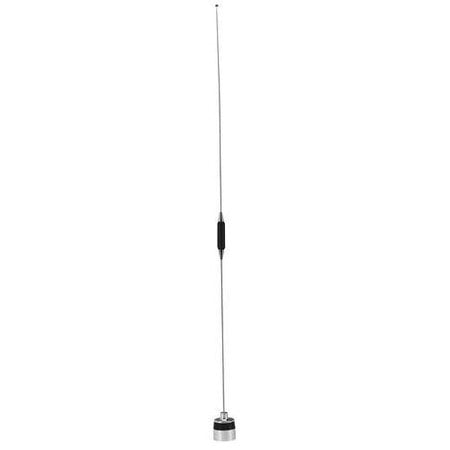

MUF4505NGP: Bobina cromada con carga base PCTEL / Maxrad resistente 450-470 MHz - No se requiere plano de tierra

  • Regular price $78.72 Sale price $51.01
    Precio unitario por

MUF4505NGP


+ -
¡Solo 20 restantes!
Volume Price Breaks
Quantity: Unit Price:
10 $49.18
25 $47.50
100 $45.91
250 $43.73
500 $41.11
Plazo de entrega para cantidades superiores a 20 :  Ships in 8-10 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

MUF4505NGP: Bobina cromada con carga base PCTEL / Maxrad resistente 450-470 MHz - No se requiere plano de tierra

More InfoDocumentsSpecifications Reviews

Diseñadas para instalaciones que carecen de un plano de tierra adecuado, estas antenas PCTEL cuentan con una cubierta de bobina de carga cónica con accesorios cromados y un resorte de acero inoxidable de alta resistencia opcional. La red coincidente cargada por la base soporta las secciones de varilla colineales o trilineales superiores sin la necesidad de un plano de tierra.
Esta antena requiere un soporte NMO. Por favor haga clic aquí para encontrar todos NMO de orificio pasante monturas o NMO magnético Monturas que llevamos.


More Information

Designed for installations that lack a suitable ground plane, these PCTEL antennas feature a tapered loading coil jacket with chrome plated fittings and an optional heavy-duty stainless steel spring. The base loaded matching network supports the collinear or trilinear rod sections above without the need of a ground plane.

Features
  • No ground plane required
  • Rugged construction; optional heavy-duty shock spring
  • Sleek, sturdy, sealed phasing coil design
  • Mates with all 1-1/8”-18 thread mounts, including 3/4” mounts

Documents


Specifications

SKU MUF4505NGP
Manufacturer Part Number MUF4505NGP
Manufacturer PCTEL
Antenna Category UHF (380-600 MHz)
Working Frequency 450-470 MHz
Gain 5 dB/3 dB
Antenna Style Base Coil Antennas
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohm
Max Input Power (W) 200
VSWR: < X: 1 < 1.5:1
Material UV-Stable Polymer
Operating Temp (celsius) -40°C to +85°C
Mount Style Permanent
Color Chrome
OK for Outdoor Use Yes
Vehicular Yes
Product Condition New
