CVW-LTE-2C2C-BLK-120: Antena de montaje adhesivo GPS y 4G/LTE. Montado en tablero/parabrisas, cable de 10 pies y conector macho SMA.

  • $101.97
    Precio unitario por

CVW-LTE-2C2C-BLK-120


+ -
0 en existencia. Sujeto al tiempo de entrega de fábrica
Volume Price Breaks
Quantity: Unit Price:
10 $96.82
25 $91.67
100 $82.40
250 $74.16
Tiempo de espera:  Ships in 4-6 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

CVW-LTE-2C2C-BLK-120: Antena de montaje adhesivo GPS y 4G/LTE. Montado en tablero/parabrisas, cable de 10 pies y conector macho SMA.

More InfoDocumentsSpecifications Reviews

CVW-LTE-2C2C-BLK-120: Antena negra estilo banda encubierta combinada 2 en 1 LTE/Celular+GPS. LTE/Celular: Antena 694-960/1700-2700 MHz con cable RG174 de 10 pies y conector macho SMA. GPS de 1575,42 MHz con antena LNA de 26 dB con cable RG174 de 10 pies y conector macho SMA.


More Information

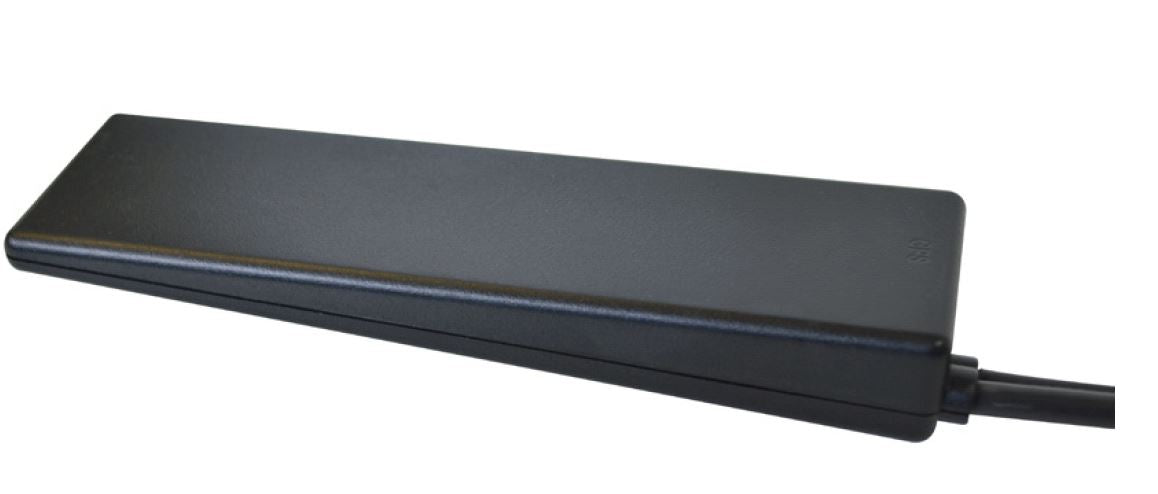

The Mobile Mark is a 2-in-1 combination antenna for active 3.3 or 5 volt GPS & 4G/LTE. This unit is meant to be used when the typical roof mount antennas are not practical due to mounting considerations, or when there is a desire for the antenna to be "covert." The unit has adhesive for mounting the antenna to a dashboard, or windshield.

  • 3G/4G/LTE Cellular Frequencies: 695-960 & 1700-2700 Mhz
  • Cellular Antenna Gain: 2.5 dBi (2:1 VSWR)
  • GPS Frequency: 1575.42 MHz
  • GPS Antenna :LNA Gain: 26 db
  • Size: L=5.5 x W=1.5 Inches
  • Max Power: 10 Watts
  • Operating Temp: -40 to +85 C
  • Cables/Connectors: (2x) 10 foot RG174 wtih SMA Male






Documents

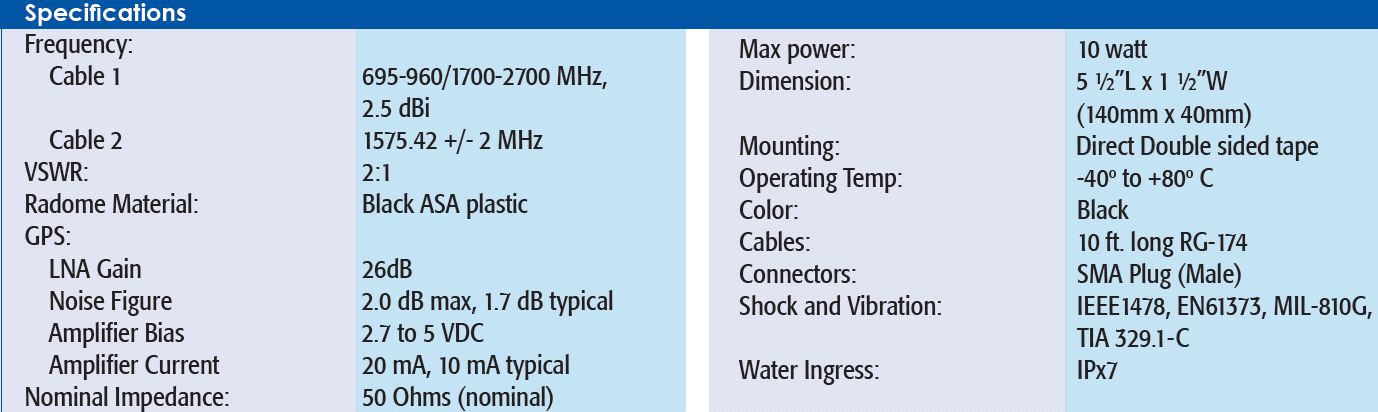

Specifications

SKU CVWLTE2C2CBLK120
Manufacturer Part Number CVW-LTE-2C2C-BLK-120
Manufacturer Mobile Mark
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 695-2700 MHz (3G/4G/LTE)
Gain 2.5 dBi
Working Frequency 2 1575.42 (GPS)
Gain 2 26 dB (LNA Gain)
Antenna Style Covert Antennas
Polarity Linear
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohms
Max Input Power (W) 10
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 5.5
Height/Length (mm) 140
Width (inches) 1.5
Width (mm) 40
Weight (lbs) 0.15
Material Black ASA Plastic
Operating Temp (celsius) -40 to +85 C
Mount Style Wedge/Adhesive
Color Black
Cable Type RG-174
Number of Cables 2
Cable Length (inches) 120
Connector 1 SMA-Male
Connector 2 SMA-Male
Includes Direct-Double Side Tape
IP Rating IPx7
Vehicular Yes
Product Condition New
