FG9023: Antena omnidireccional de estación base de fibra de vidrio de 900 mhz para exteriores Laird / Antenex con conector N-hembra fijo, 5 dBi

  • $114.00
    Precio unitario por

FG9023


0 en existencia. Sujeto al tiempo de entrega de fábrica
Volume Price Breaks
Quantity: Unit Price:
10 $103.36
25 $95.77
100 $91.73
Tiempo de espera:  Ships in 4-6 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

FG9023: Antena omnidireccional de estación base de fibra de vidrio de 900 mhz para exteriores Laird / Antenex con conector N-hembra fijo, 5 dBi

More InfoDocumentsSpecifications Reviews

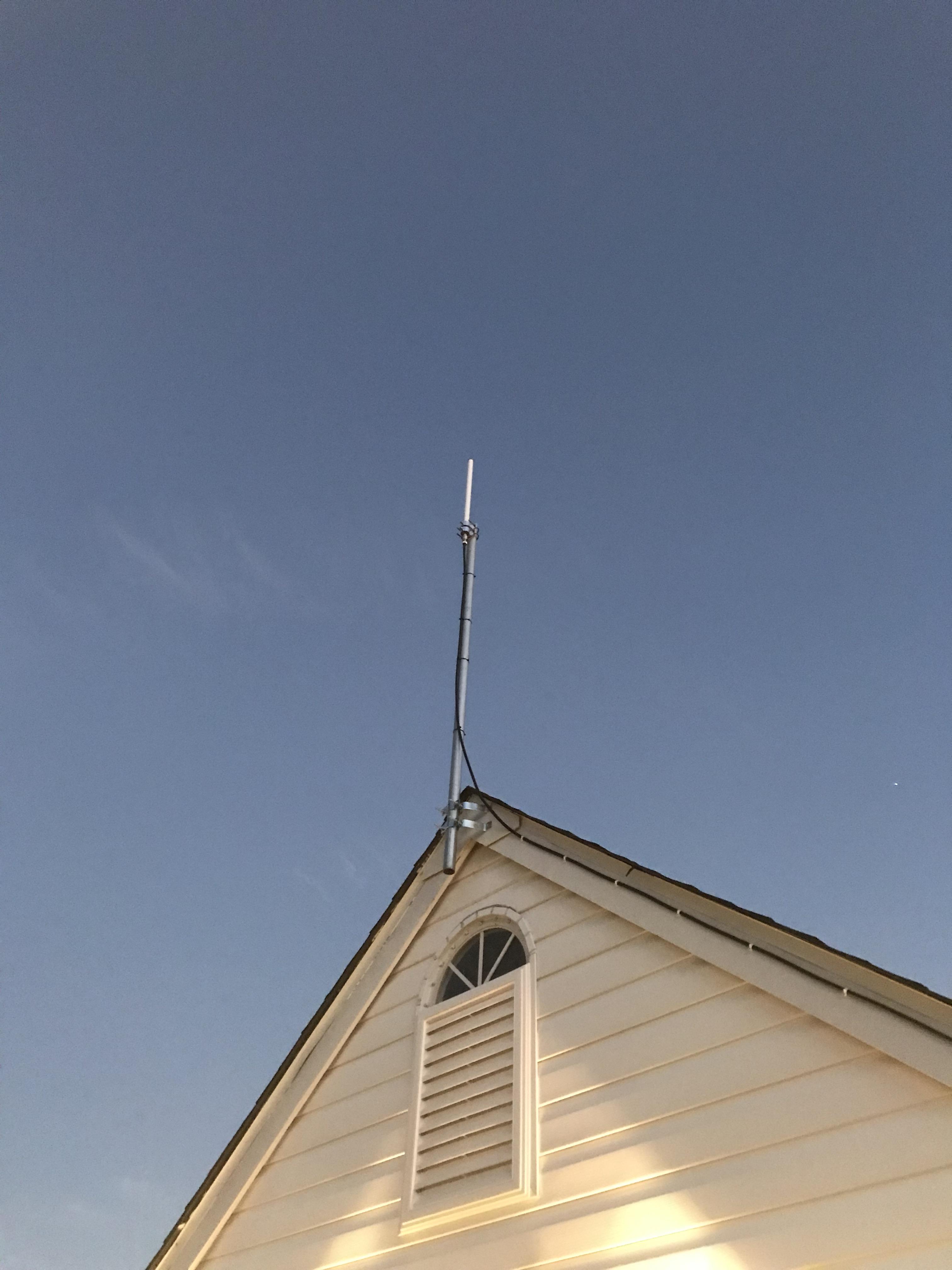

La Laird / Antenex FG9023 es una antena de palo omnidireccional de fibra de vidrio para exteriores que ofrece una ganancia de 3 dBd / 5 dBi en la banda ISM de 900 MHz. La unidad es ultrarresistente y perfectamente adecuada para 900 MHz para comunicaciones punto a punto/máquina a máquina. Normalmente, la antena se utiliza junto con radios de DIGI, FreeWave, Avalan o MOXA. La longitud total es de solo 24 pulgadas, incluido el conector N-Hembra fijo. Equivalente a Antenex Parte# 14221.

*Nota: Esta antena NO se envía con accesorios de montaje. Recomendamos el soporte de montaje Heavy Duty *



More Information

FIBERGLASS BASE STATION ANTENNAS FEATURE INDUSTRY-LEADING DESIGN COMPONENTS THAT PERFORM IN EXTREME CONDITIONS

*Note: The ROSA-HDM1 mounting bracket is NOT included with the antenna*

Laird Technolgies’ fiberglass base station antennas are collinear designs enclosed in a high density fiberglass, which is covered with a protective ultraviolet inhibiting coating.

The radiating elements are made from high efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a “cold” sleeve allowing great freedom in mounting. This high quality and well-focused beam provides the highest gain and best efficiency.

FEATURES AND BENEFITS:

  • Every FG fiberglass base antenna is tested on a network analyzer before shipping to assure the best performance.
  • Special UV Treated - stands up to the sun
  • Durable gold anodized sleeve and cap with N Female connector
  • Custom tuning available

APPLICATIONS:

  • Omnidirectional (circular) outdoor antenna applications used by private organizations and government agencies around the globe.
  • Typical applications include land based and marine radio and data transmissions for public safety agencies, commercial organizations, and the military.

Documents


Specifications

SKU FG9023
Manufacturer Part Number FG9023
Manufacturer Laird
Antenna Category 900 MHz
Working Frequency 902-928
Gain 5
Working Frequency 2 915
Gain 2 5
Antenna Style Omnidirectional Base Station Antenna
Polarity Linear
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50
Max Input Power (W) 100
VSWR: < X: 1 2
Horizontal/Azimuth Beamwidth 360
Vertical/Elevation Beamwidth 70
Height/Length (inches) 23.5
Height/Length (mm) 597
Thickness/Diameter (inches) 1.31
Thickness/Diameter (mm) 33
Weight (lbs) 0.5
Weight (grams) 227
Material Fiberglass
Operating Temp (celsius) -40 TO +85
Mount Style Screw On
Color White
Connector Type Connector - Bottom
Connector 1 N-Female
OK for Outdoor Use Yes
Ground Plane Required No
Product Condition New
