FG4603: Antena de estación base omnidireccional de fibra de vidrio para exteriores de 460-470 MHz, 3 dBd/ 5,15 dBi con conector N-hembra
FG4603
FG4603: Antena de estación base omnidireccional de fibra de vidrio para exteriores de 460-470 MHz, 3 dBd/ 5,15 dBi con conector N-hembra
More InfoDocumentsSpecifications ReviewsLa FG4603 de Laird (anteriormente Antenex) es una antena de estación base de fibra de vidrio omnidireccional de alta resistencia que funciona a 460-470 MHz y proporciona 3 dBd/5,15 dBi de ganancia lineal.

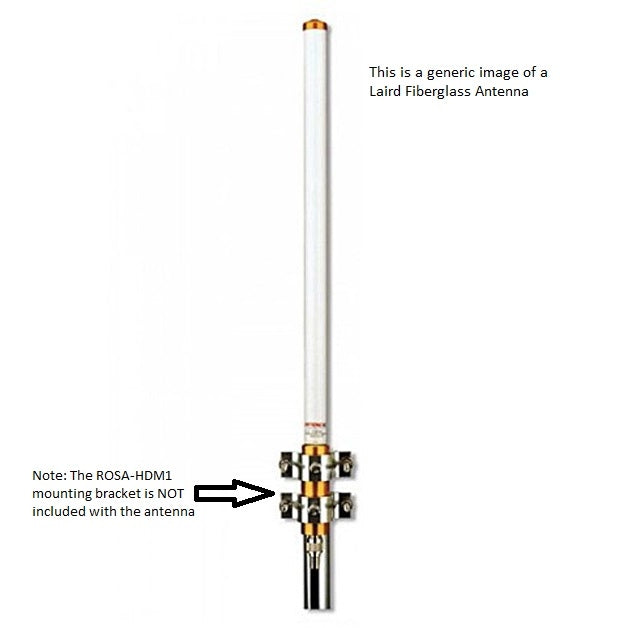

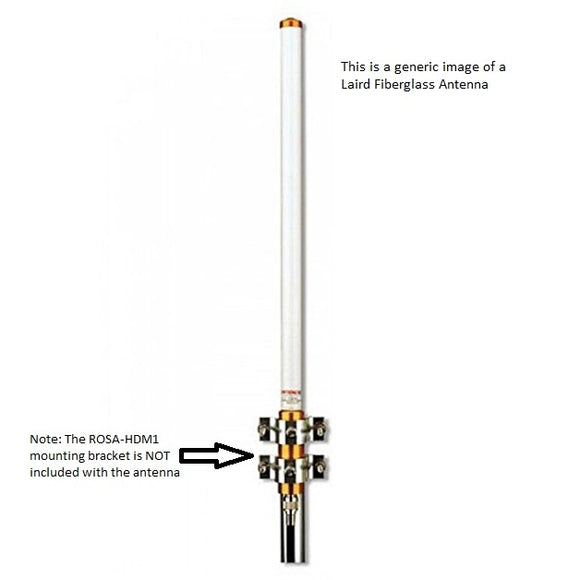

*Nota: Esta antena NO se envía con accesorios de montaje. Recomendamos el soporte de montaje ROSA-HDM1 *
More Information
Laird – Antenex Outdoor Rated Omnidirectional Fiberglass Base Station Antennas Are Designed To Perform For Many Years Under Extreme Conditions. Every Antenna Is Covered By A Five-Year Factory Warranty.
*Note: This antenna DOES NOT ship with mounting hardware. We recommend the ROSA-HDM1 mounting bracket*
The FG4603 from Laird (formerly Antenex) is a heavy duty, omni-directional fiberglass base station antenna. It has a collinear design enclosed in high density fiberglass, which is covered with a protective ultraviolet inhibiting coating.
The radiating elements are tuned for the 460-470 MHz and made from high efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a cold sleeve allowing great freedom in mounting. This high quality and well-focused beam provides the highest gain and best efficiency.
FEATURES AND BENEFITS:
- Frequency: 460-470 MHz
- Gain: 3 dBd/ 5.15 dBi
- Length: 44 inches
- 100% tested on a network analyzer before shipping to assure the best performance.
- Special UV Treated - stands up to the sun over years of service.
- Durable gold anodized sleeve and cap with N Female connector.
- Five Year Factory Warranty.
Documents
También recomendamos
Specifications
| SKU | FG4603 |
|---|---|
| Manufacturer Part Number | FG4603 |
| Manufacturer | Laird |
| Antenna Category | UHF (380-600 MHz) |
| Working Frequency | 460-470 MHz |
| Gain | 3 dBd/ 5.15 dBi |
| Center Tuned Frequency 1 | 465 MHz |
| Antenna Style | Omnidirectional Base Station Antenna |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 44 |
| Height/Length (mm) | 1117.6 |
| Thickness/Diameter (inches) | 1.31 |
| Thickness/Diameter (mm) | 33.27 |
| Weight (lbs) | 4 |
| Weight (grams) | 1814.37 |
| Material | Fiberglass |
| Operating Temp (celsius) | (-40) to 85 C |
| Color | White |
| Connector 1 | N-Female |
| OK for Outdoor Use | Yes |
| Ground Plane Required | No |
| Product Condition | New |
