QWB144: Antena de látigo de cuarto de onda negra de 144-152 MHz con base NMO. Se requiere plano de tierra metálico.
QWB144
QWB144: Antena de látigo de cuarto de onda negra de 144-152 MHz con base NMO. Se requiere plano de tierra metálico.
More InfoSpecifications ReviewsLa Laird/Antenex QWB144 es una antena de látigo omnidireccional de cuarto de onda de acero inoxidable de 19 pulgadas de largo con acabado negro para operación en el rango de frecuencia de 144-152 MHz, con base NMO. Se requiere un plano de tierra de metal.
*Esta antena requiere un soporte NMO. Haga clic aquí para encontrar todos los soportes NMO con orificio pasante o los soportes NMO magnéticos que tenemos.
More Information

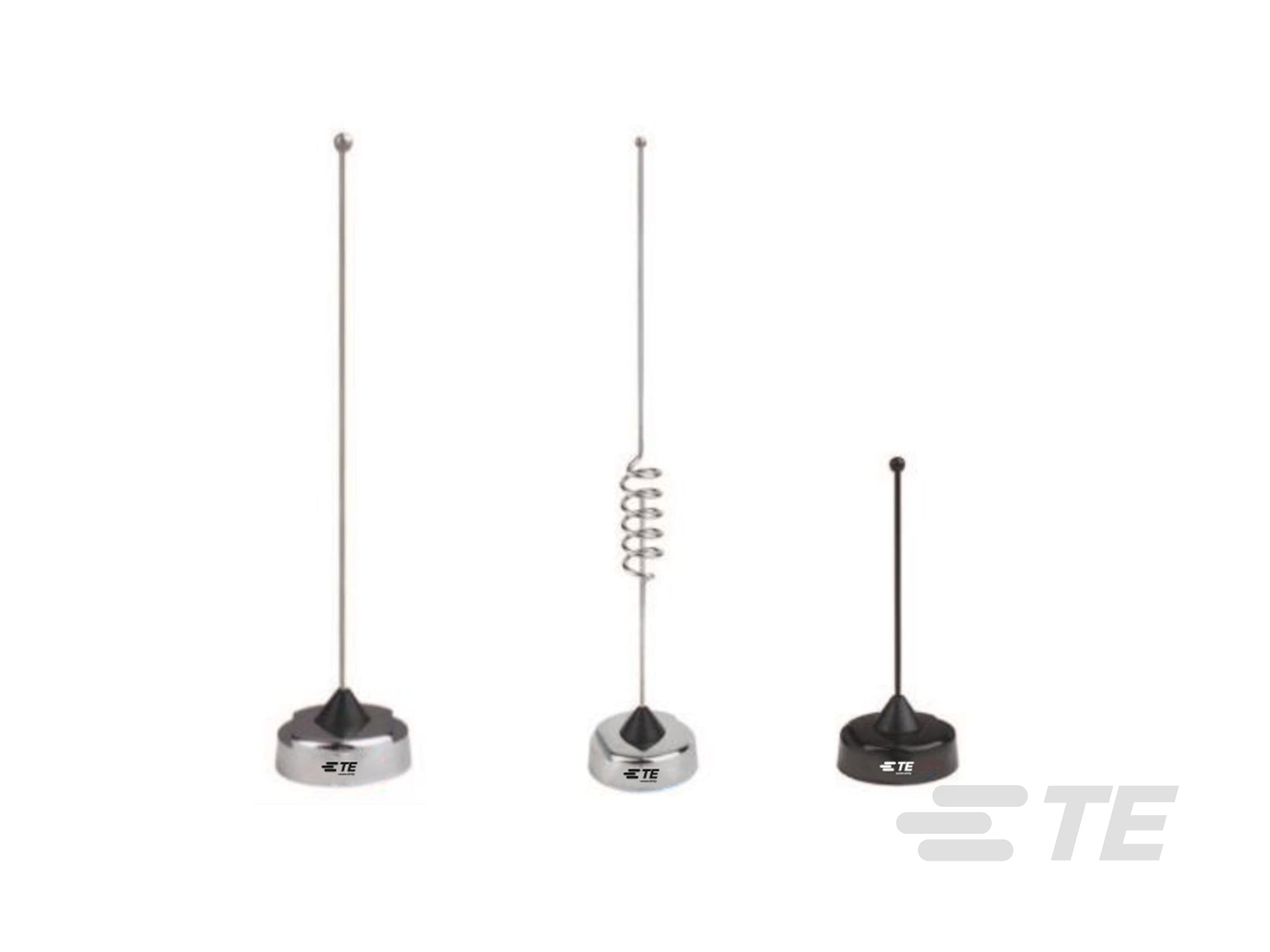

The Laird / Antenex QWB144 is an 19 inch long, chrome, ¼ wave whip antenna with NMO base. This antenna requires a metal ground plane, is omnidirectional, offers Unity/2.15 dBi gain and accepts up to 200 watts max power and operates in the 144-152 MHz MHz range.
Laird Technology’s family of Quarter Wave Whip antennas all built with stainless steel materials and feature gold plated contacts for corrosion resistance and best power transfer.
FEATURES:
- Frequency Range: 144-152 MHz MHz
- Gain: Unity: Unity/2.15 dBi
- Length: 19 inches
- FIVE YEAR FACTORY WARRANTY
Specifications
| SKU | QWB144 |
|---|---|
| Manufacturer Part Number | QWB144 |
| Manufacturer | Laird |
| Antenna Category | VHF (132-220 MHz) |
| Working Frequency | 144-152 MHz |
| Gain | Unity/2.15 dBi |
| Antenna Style | 1/4 Wave Whip |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | 2.0:1 |
| Height/Length (inches) | 19 |
| Height/Length (mm) | 482.6 |
| Material | Stainless Steel |
| Color | Black |
| Connector 1 | NMO |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | Yes |
| Product Condition | New |
