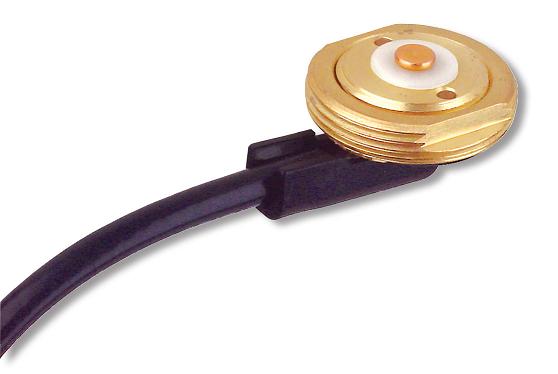

MB8UB: Montaje NMO de orificio pasante de 3/4 con 17 pies. Cable RG-58/U y conector BNC-Macho
MB8UB
MB8UB: Montaje NMO de orificio pasante de 3/4 con 17 pies. Cable RG-58/U y conector BNC-Macho
More InfoDocumentsSpecifications ReviewsSi este no es el soporte NMO que está buscando, haga clic aquí para encontrar todos los soportes NMO que tenemos o envíe un correo electrónico a customerservice@arcadianinc.com para comunicarse con uno de los miembros de nuestro equipo de servicio al cliente.
More Information
High Quality NMO cable kits and NMO magnetic mounts were the flagship product of the original Antenex Corporation, founded in Glendale Heights, IL in 1990. The company?s passion and dedication to designing and manufacturing high-performance coaxial cables like MB8UB for Thru-Hole vehicular mounting of NMO antennas continues to drive the company's success today. Owned by Laird Technologies since 2006, this dedicated group of Land Mobile Radio (LMR) professionals use quality materials and workmanship to produce a superior product.
FEATURES
| Cable Type | Attenuation (dB/100 ft) | ||
| 150 MHZ | 450 MHZ | 900 MHZ | |
| RG-58/U | 5.40 | 10.20 | 16.10 |
| RG-58A/U | 6.20 | 12.50 | 20.00 |
| RG8X | 3.60 | 6.80 | 10.70 |
| Solid Teflon Cable | 4.80 | 9.00 | 13.50 |
Documents
Specifications
| SKU | MB8UB |
|---|---|
| Manufacturer Part Number | MB8UB |
| Manufacturer | Laird |
| NMO Mount Type | Thru Hole NMO mount |
| Mount Style | 3/4 Thru-Hole NMO Mount |

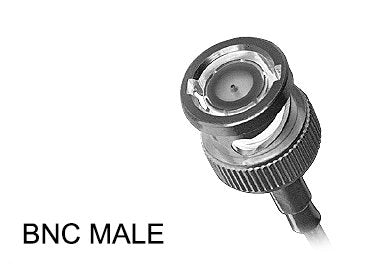

| Connector 1 | BNC-Male |
| Cable Type | RG-58/U |
| Cable Length (inches) | 204 |
| Cable Length (mm) | 62179.2 |
| Weight (lbs) | 0.5 |
| Weight (grams) | 227.27 |
| Color | Black |
| Connector Type | Connector - Rear |
| Vehicular | Yes |
| OK for Outdoor Use | Yes |
| Product Condition | New |
