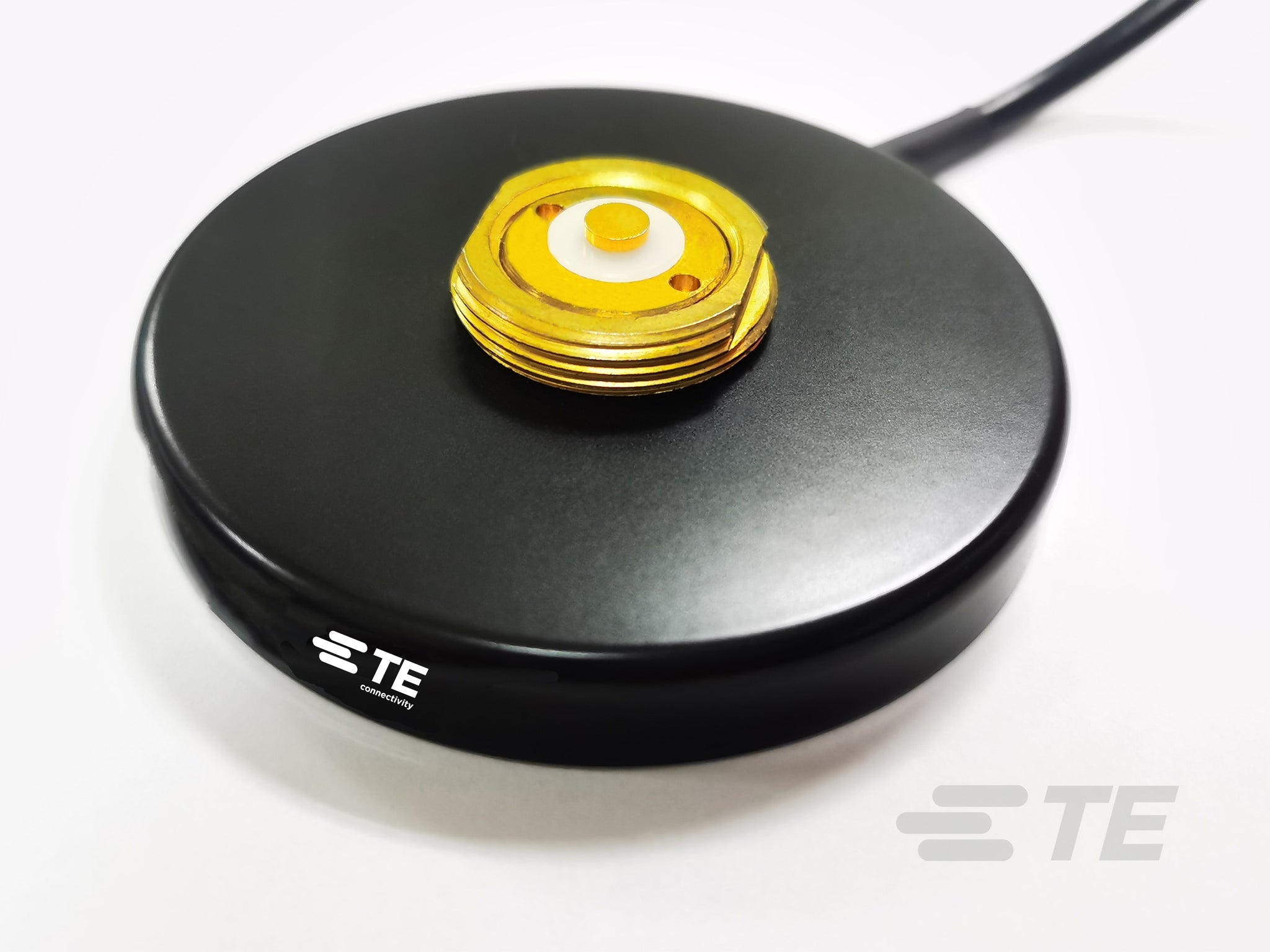

GB195RPSMAI: Soporte magnético NMO con 12 pies. Cable ATX195 y conector macho RP-SMA instalado
GB195RPSMAI
GB195RPSMAI: Soporte magnético NMO con 12 pies. Cable ATX195 y conector macho RP-SMA instalado
More InfoSpecifications ReviewsSi este no es el soporte NMO que está buscando, haga clic aquí para encontrar todos los soportes NMO que tenemos o envíe un correo electrónico a customerservice@arcadianinc.com para comunicarse con uno de los miembros de nuestro equipo de servicio al cliente.
More Information
High Quality NMO cable kits and Magnetic NMO Mount were the flagship product of the original Antenex Corporation, founded in Glendale Heights, IL in 1990. The company's passion and dedication to designing and manufacturing high-performance coaxial cables likeGB1956RPSMI for vehicular mounting of NMO antennas continues to drive the company's success today. Owned by Laird Technologies since 2006, this dedicated group of Land Mobile Radio (LMR) professionals use quality materials and workmanship to produce a superior product.
FEATURES
- Magnetic NMO Mount
- 12 Ft. ATX195 Cable
- RP-SMA Male Installed
- Originally designed by Antenex
- 5 Year Factory Warranty
Cable Type | Attenuation (dB/100 ft) | ||
150 MHZ | 450 MHZ | 900 MHZ | |
RG-58/U | 5.40 | 10.20 | 16.10 |
RG-58A/U | 6.20 | 12.50 | 20.00 |
RG8X | 3.60 | 6.80 | 10.70 |
Solid Teflon Cable | 4.80 | 9.00 | 13.50 |
ATX195 | 4.40 | 7.80 | 11.10 |
RG-174 | 8.60 | 15.20 | 22.00 |
Teflex | 5.80 | 10.00 | 14.50 |
Specifications
SKU | GB195RPSMAI |
---|---|
Manufacturer Part Number | GB195RPSMAI |
Manufacturer | Laird |
NMO Mount Type | Magnetic NMO Mount |
Mount Style | Magnetic NMO Mount |
Cable Length (Mounts) | 12 Feet |
Cable Type | LMR195 |
Cable Length (inches) | 144 |
Cable Length (mm) | 3657.6 |
Thickness/Diameter (inches) | 3.2 |
Thickness/Diameter (mm) | 81.28 |
Weight (lbs) | 1 |
Weight (grams) | 454.55 |
Used for High Frequency (900 MHz +) | No |
Color | Black |
Includes | Installed Connector |
Vehicular | Yes |
OK for Outdoor Use | Yes |
Product Condition | New |
