FG9020: 902-928 MHz, Unity/2,15 dBi Antena de estación base omnidireccional de fibra de vidrio para exteriores con conector N-hembra
FG9020
FG9020: 902-928 MHz, Unity/2,15 dBi Antena de estación base omnidireccional de fibra de vidrio para exteriores con conector N-hembra
More InfoSpecifications ReviewsLa FG9020 de Laird (anteriormente Antenex) es una antena de estación base omnidireccional de fibra de vidrio de alta resistencia que funciona a 902-928 MHz y proporciona Unity/2,15 dBi de ganancia lineal.
*Nota: Esta antena NO se envía con accesorios de montaje. Recomendamos el soporte de montaje ROSA-HDM1 *
More Information
Laird – Antenex Outdoor Rated Omnidirectional Fiberglass Base Station Antennas Are Designed To Perform For Many Years Under Extreme Conditions. Every Antenna Is Covered By A Five-Year Factory Warranty.
*Note: This antenna DOES NOT ship with mounting hardware. We recommend the ROSA-HDM1 mounting bracket*

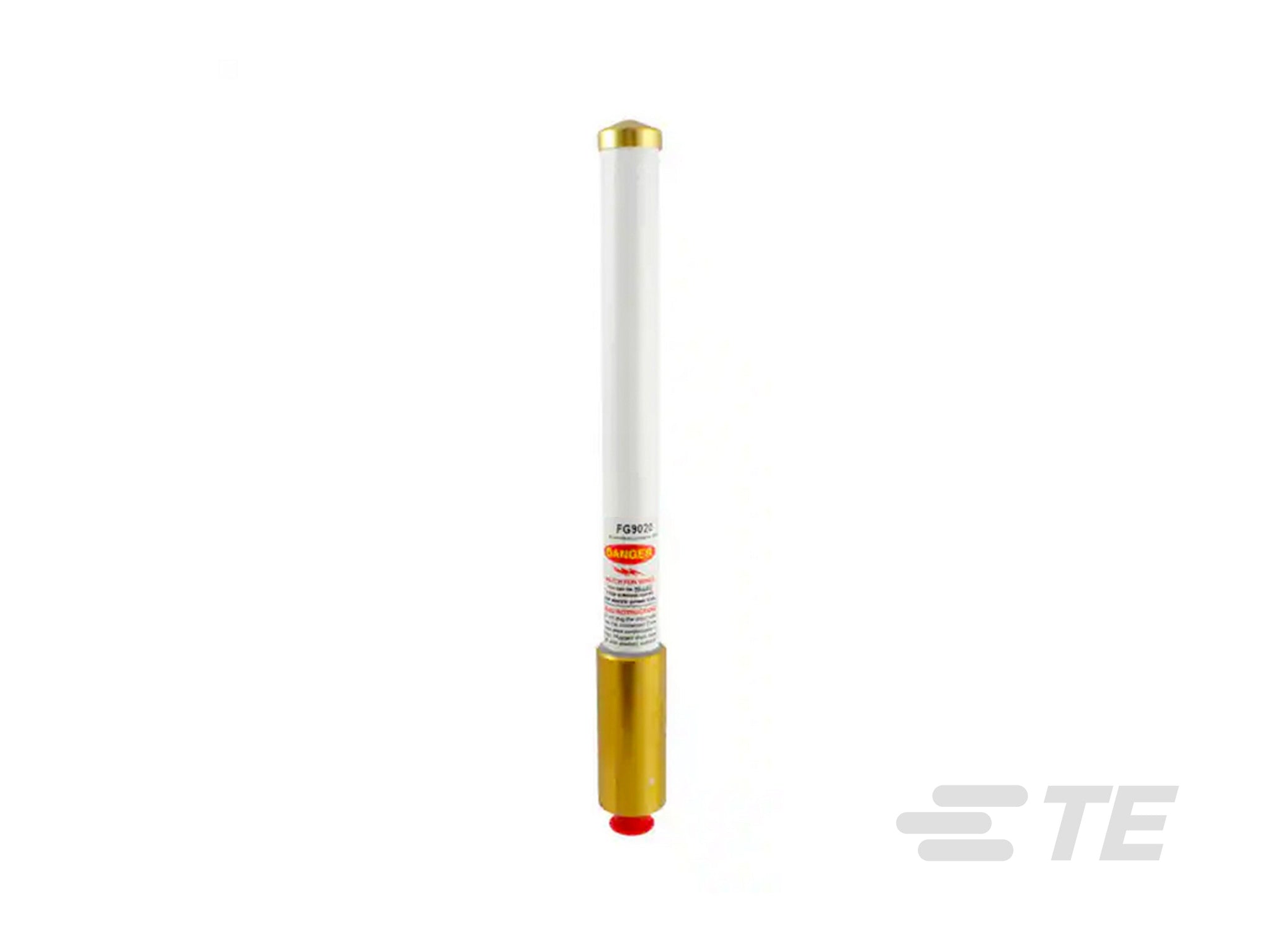

The FG9020 from Laird (formerly Antenex) is a heavy-duty, omnidirectional fiberglass base station antenna. It has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating.
The radiating elements are tuned for the 902-928 MHz and made from high-efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a cold sleeve allowing great freedom in mounting. This high quality and well-focused beam provide the highest gain and best efficiency.
FEATURES AND BENEFITS:
- Frequency: 902-928 MHz
- Gain: Unity/ 2.15 dBi
- Length: 15 inches
- 100% tested on a network analyzer before shipping to assure the best performance.
- Special UV Treated - stands up to the sun over years of service.
- Durable gold-anodized sleeve and cap with N Female connector.
- Five Year Factory Warranty.
También recomendamos
Specifications
| SKU | FG9020 |
|---|---|
| Manufacturer Part Number | FG9020 |
| Manufacturer | Laird |
| Antenna Category | 900 MHz |
| Working Frequency | 902-928 MHz |
| Gain | Unity/ 2.15 dBi |
| Center Tuned Frequency 1 | 915 MHz |
| Antenna Style | Omnidirectional Base Station Antenna |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 15 |
| Height/Length (mm) | 381 |
| Thickness/Diameter (inches) | 1.31 |
| Thickness/Diameter (mm) | 33.27 |
| Weight (lbs) | 1 |
| Weight (grams) | 453.59 |
| Material | Fiberglass |
| Operating Temp (celsius) | (-40) to 85 C |
| Color | White |
| Connector 1 | N-Female |
| OK for Outdoor Use | Yes |
| Ground Plane Required | No |
| Product Condition | New |
