FG8966: Antena de estación base omnidireccional de fibra de vidrio para exteriores de 896-940 MHz, 6 dBd/8,15 dBi con conector N-hembra

  • $256.85
    Precio unitario por

FG8966


+ -
0 en existencia. Sujeto al tiempo de entrega de fábrica
Volume Price Breaks
Quantity: Unit Price:
10 $237.97
25 $227.90
100 $217.22
250 $214.33
500 $212.92
Tiempo de espera:  Ships in 4-6 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

FG8966: Antena de estación base omnidireccional de fibra de vidrio para exteriores de 896-940 MHz, 6 dBd/8,15 dBi con conector N-hembra

More InfoSpecifications Reviews

La FG8966 de Laird (anteriormente Antenex) es una antena de estación base omnidireccional de fibra de vidrio de alta resistencia que funciona a 896-940 MHz y proporciona 6 dBd/8,15 dBi de ganancia lineal.

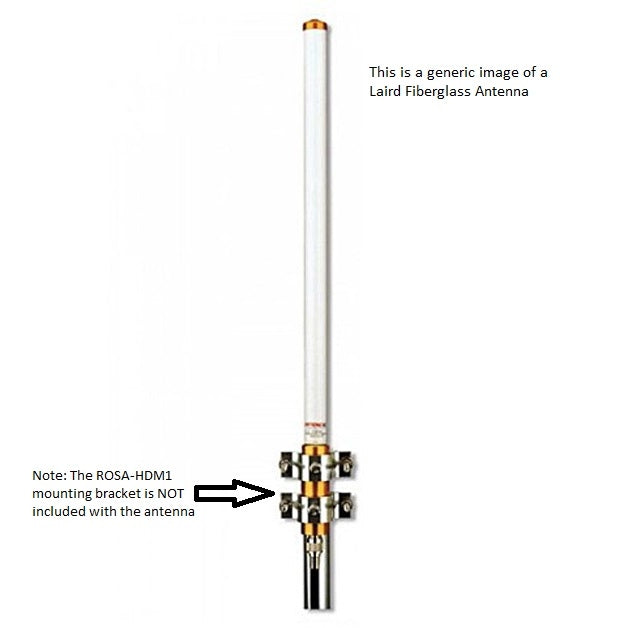

*Nota: Esta antena NO se envía con accesorios de montaje. Recomendamos el soporte de montaje ROSA-HDM1 *

***Este artículo está sujeto a una cantidad mínima de pedido de 3 unidades***



More Information

Laird – Antenex Outdoor Rated Omnidirectional Fiberglass Base Station Antennas Are Designed To Perform For Many Years Under Extreme Conditions.  Every Antenna Is Covered By A Five-Year Factory Warranty.

*Note: This antenna DOES NOT ship with mounting hardware.  We recommend the ROSA-HDM1 mounting bracket*

The FG8966 from Laird (formerly Antenex) is a heavy-duty, omnidirectional fiberglass base station antenna.  It has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating.

The radiating elements are tuned for the 896-940MHz and made from high-efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a cold sleeve allowing great freedom in mounting. This high quality and well-focused beam provide the highest gain and best efficiency.

FEATURES AND BENEFITS:

  • Frequency: 896-940MHz
  • Gain: 6 dBd/ 8.15 dBi
  • Length: 65 inches
  • 100% tested on a network analyzer before shipping to assure the best performance.
  • Special UV Treated - stands up to the sun over years of service.
  • Durable gold-anodized sleeve and cap with N Female connector.
  • Five Year Factory Warranty.

Specifications

SKU FG8966
Manufacturer Part Number FG8966
Manufacturer Laird
Antenna Category 900 MHz
Working Frequency 896-940MHz
Gain 6 dBd/ 8.15 dBi
Center Tuned Frequency 1 898 MHz
Antenna Style Omnidirectional Base Station Antenna
Polarity Vertical
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 65
Height/Length (mm) 1651
Thickness/Diameter (inches) 1.31
Thickness/Diameter (mm) 33.27
Weight (lbs) 6
Weight (grams) 2721.55
Material Fiberglass
Operating Temp (celsius) (-40) to 85 C
Color White
Connector 1 N-Female
OK for Outdoor Use Yes
Ground Plane Required No
Product Condition New
