ETRAB8063: Antena Phantom Elite de 806-866 MHz con NMO: se requiere un plano de tierra metálico de montaje móvil
ETRAB8063
ETRAB8063: Antena Phantom Elite de 806-866 MHz con NMO: se requiere un plano de tierra metálico de montaje móvil
More InfoSpecifications ReviewsLa Laird/Antenex ETRAB8063 es una antena Phantom Elite negra de perfil bajo y alto de 2,7 pulgadas con base NMO - Mobile Mount. Esta antena requiere un plano de tierra metálico, es omnidireccional, ofrece una ganancia de 5,15 dBi y acepta una entrada de potencia máxima de hasta 150 vatios y opera en un rango de frecuencia de 806-866 MHz.
*Esta antena requiere un soporte NMO. Haga clic aquí para encontrar todos los soportes NMO con orificio pasante o los soportes NMO magnéticos que tenemos.
More Information

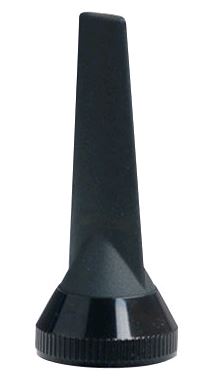

The Laird / Antenex ETRAB8063 is an 2.7 inch high, Black, low profile Phantom Elite antenna with NMO - Mobile Mount base. This antenna does require a metal ground plane, is omnidirectional, offers 5.15 dBi dBi gain and accepts up to 150 watts max input power and operates in the 806-866 MHz range.
Laird Technology’s family of Phantom Elite antennas are made of injection molded ABS material, and feature silver soldered joints for best performance.
FEATURES:
- Frequency Range: 806-866 MHz
- Gain: 5.15 dBi
- Polarization: Dual – Horizontal & Vertical
- NMO - Mobile Mount
- FIVE YEAR FACTORY WARRANTY
Specifications
| SKU | ETRAB8063 |
|---|---|
| Manufacturer Part Number | ETRAB8063 |
| Manufacturer | Laird |
| Antenna Category | 700/800 MHz |
| Working Frequency | 806-866 MHz |
| Gain | 5.15 dBi |
| Antenna Style | Low Profile Antenna |
| Polarity | Dual Polarity |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | 2.0:1 |
| Height/Length (inches) | 2.7 |
| Height/Length (mm) | 68.58 |
| Operating Temp (celsius) | (-40 to 85) |
| Mount Style | NMO - Mobile Mount |
| Color | Black |
| Connector 1 | NMO |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | Yes |
| Product Condition | New |
