ETRA1550: Antena Phantom Elite de 155-160 MHz con NMO: se requiere un plano de tierra metálico de montaje móvil
ETRA1550
Los gastos de envío se calculan en la pantalla de pagos.
ETRA1550: Antena Phantom Elite de 155-160 MHz con NMO: se requiere un plano de tierra metálico de montaje móvil
More InfoDocumentsSpecifications Reviews

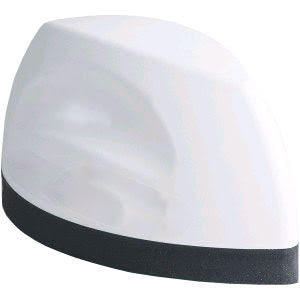

La Laird/Antenex ETRA1550 es una antena Phantom Elite blanca de perfil bajo de 2,38 pulgadas de alto con base NMO - Mobile Mount. Esta antena requiere un plano de tierra metálico, es omnidireccional, ofrece una ganancia de 2,15 dBi y acepta una entrada de potencia máxima de hasta 60 vatios y opera en un rango de frecuencia de 155-160 MHz.
*Esta antena requiere un soporte NMO. Haga clic aquí para encontrar todos los soportes NMO con orificio pasante o los soportes NMO magnéticos que tenemos.
More Information
The Laird / Antenex ETRA1550 is an 2.38 inch high, White, low profile Phantom Elite antenna with NMO - Mobile Mount base. This antenna does require a metal ground plane, is omnidirectional, offers 2.15 dBi dBi gain and accepts up to 60 watts max input power and operates in the 155-160 MHz range.
Laird Technology’s family of Phantom Elite antennas are made of injection molded ABS material, and feature silver soldered joints for best performance.
FEATURES:
- Frequency Range: 155-160 MHz
- Gain: 2.15 dBi
- Polarization: Dual – Horizontal & Vertical
- NMO - Mobile Mount
- FIVE YEAR FACTORY WARRANTY
Documents
Specifications
| SKU | ETRA1550 |
|---|---|
| Manufacturer Part Number | ETRA1550 |
| Manufacturer | Laird |
| Antenna Category | VHF (132-220 MHz) |
| Working Frequency | 155-160 MHz |
| Gain | 2.15 dBi |
| Antenna Style | Low Profile Antenna |
| Polarity | Dual Polarity |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | 2.0:1 |
| Height/Length (inches) | 2.38 |
| Height/Length (mm) | 60.452 |
| Operating Temp (celsius) | (-40 to 85) |
| Mount Style | NMO - Mobile Mount |
| Color | White |
| Connector 1 | NMO |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | Yes |
| Product Condition | New |
