BB8965CN: Antena de montaje NMO con bobina de base móvil de 896-970 MHz, no se requiere plano de tierra metálico
BB8965CN
BB8965CN: Antena de montaje NMO con bobina de base móvil de 896-970 MHz, no se requiere plano de tierra metálico
More InfoSpecifications ReviewsLa Laird / Antenex BB8965CN es una antena de látigo omnidireccional con bobina de base negra de 14 pulgadas de largo para operación en la banda ISM de 896-970MHz, con base NMO. No se requiere plano de tierra metálico.
Esta antena requiere un soporte NMO. Haga clic aquí para encontrar todos NMO de orificio pasante soportes o haga clic aquí para NMO magnético Montajes.
Para montaje NMO magnético de alta resistencia con TNC, utilice: RNMOM-195-STM-B-12I-ST
Para montaje NMO magnético de alta resistencia con RP-TNC, utilice: RNMOM-195-RTM-B-12I-ST
***Este artículo está sujeto a una cantidad mínima de pedido de 11 unidades***
More Information

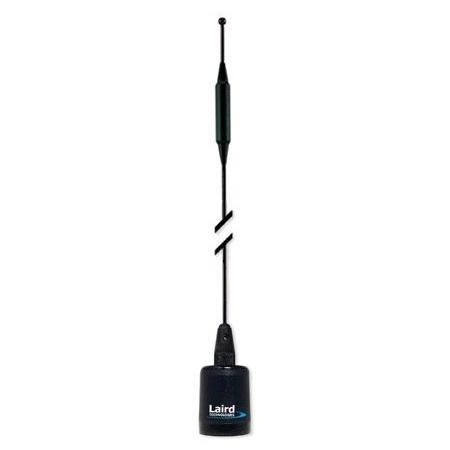

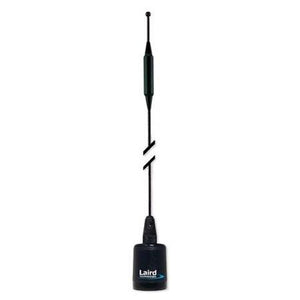

The Laird / Antenex BB8965CN is a 14 inch long, Black, base loaded mobile ISM whip antenna with NMO base. This antenna does NOT require a metal ground plane. It is omnidirectional and offers 5 dBi gain and accepts up to 100-200 watts max power and operates in the 896-970MHz range.
Laird Technology’s ongoing commitment to refinement in mechanical and electrical design has resulted in the most technically advanced mobile load coil antennas on the market. Exclusive features such as stainless steel whips, housings constructed with ABS material injected molded around a solid brass insert, and gold plated push pin contacts make Laird Technologies the obvious choice for quality and long lasting value for demanding mobile radio communications.
FEATURES:
- Frequency Range: 896-970MHz
- Gain: 5 dBi
- Length: 14 inches
- 100% tested on a network analyzer
- FIVE YEAR FACTORY WARRANTY
También recomendamos
Specifications
| SKU | BB8965CN |
|---|---|
| Manufacturer Part Number | BB8965CN |
| Manufacturer | Laird |
| Antenna Category | 900 MHz |
| Working Frequency | 896-970MHz |
| Gain | 5 dBi |
| Antenna Style | Base Coil Antennas |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | 2.0:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Spring Loaded | No |
| Height/Length (inches) | 14 |
| Height/Length (mm) | 355.6 |
| Thickness/Diameter (inches) | 1.375 |
| Thickness/Diameter (mm) | 34.93 |
| Operating Temp (celsius) | (-45 to 85) |
| Color | Black |
| Connector Type | Connector - Bottom |
| Connector 1 | NMO |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | No |
| Product Condition | New |
