GPSMB401: ANT MiMoLTE, DB-WiFi, soporte para vehículo GNSS Blanco
GPSMB401
Los gastos de envío se calculan en la pantalla de pagos.
GPSMB401: ANT MiMoLTE, DB-WiFi, soporte para vehículo GNSS Blanco
More InfoDocumentsSpecifications Reviews

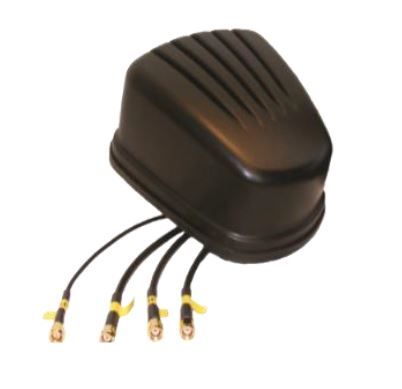

Soporte para vehículo ANT MiMoLTE, DB-WiFi, GNSS Blanco
More Information
También recomendamos
RDA-4G/5G-1-SSM
Antena dipolo de hoja giratoria 5G y 4G/LTE. Alta eficiencia para AT&T, Verizon, T-Mobile y Sprint Incluye Band 71 y CBRS, RDA-4G/5G-1-SSM
$32.35
$32.35
View Details
RSF-DB-G4W-SSS
Antena Sharkfin de montaje en techo 3 en 1 para enrutadores inalámbricos para vehículos Cradlepoint y Sierra. GPS+Celular+WiFi | RSF-DB-G4W-SSS
$232.00
$232.00
View Details
R2G5A-10SSM
Antena GPS y 5G/4G 2 en 1 para tablero/parabrisas Cables de 10 pies y SMA. RF de doble paso. Montaje adhesivo. R2G5A-10SSM
$88.00
$88.00
View Details
RBDM-G55WW-17-SSSRR-B
Antena 4G/5G, 5 en 1 para enrutadores celulares móviles con cables de 17 pies (Banda 71, CBRS, WiFi6) RBDM-G55WW-17-SSSRR-B
$291.00
$291.00
View Details
Specifications
| SKU | GPSMB401 |
|---|---|
| Manufacturer Part Number | GPSMB401 |
| Manufacturer | Pulse |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 698-960 / 1695-2170 MHz |
| Gain | 4 dBi (+/- 2.5) |
| Working Frequency 2 | 2300-2700 / 2900-3600 MHz |
| Gain 2 | 5 dBi (+/- 2) |
| Working Frequency 3 | 2400-2500 MHz |
| Gain 3 | 4.5 dBi (+/- 1.5) |
| Working Frequency 4 | 4900-5900 MHz |
| Gain 4 | 5 dBi (+/- 2) |
| Working Frequency 5 | 1561-1602 MHz (GPS/Glonass) |
| Gain 5 | 30 dBi |
| Antenna Style | Multi Element/Band Antenna |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 20 Watts |
| VSWR: < X: 1 | 1.4 - 1.5 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 6.5 in. long |
| Height/Length (mm) | 165 mm long |
| Width (inches) | 6 in. wide |
| Width (mm) | 152 mm wide |
| Thickness/Diameter (inches) | 3 in. thick |
| Thickness/Diameter (mm) | 76 mm thick |
| Weight (lbs) | 3 lbs |
| Weight (grams) | 1340 grams |
| Material | ABS Plastic / Polycarbonate |
| Operating Temp (celsius) | MIL-STD 810G -40/+85° C |
| Mount Style | Through hole / direct roof mount |
| Color | Black |
| Connector Type | Cable - Bottom Entry |
| Cable Type | RG-58/U |
| Number of Cables | 4 |
| Cable Length (inches) | 17 feet / 204 inches |
| Cable Length (mm) | 5.18 meters / 5182 mm |
| Connector 1 | SMA-Male |
| Connector 2 | RP SMA-Male |
| Connector 3 | SMA Male |
| Includes | Rubber Gasket, Lock Washer & Split Hex Nut |
| IP Rating | IP67 |
| Vehicular | Yes |
| Accessory 1 | Use With Magnetic Mounting Kit, part # GPSMBMM |
| Product Condition | New |
