Antena "Brick" 2x5G, 2x WiFi y 1x GPS/GNSS, cables de 2 pies con SMA Macho | RBDM-G55WW-2-SSSSS-B
RBDM-G55WW-2-SSSSS-B
Los gastos de envío se calculan en la pantalla de pagos.
Antena "Brick" 2x5G, 2x WiFi y 1x GPS/GNSS, cables de 2 pies con SMA Macho | RBDM-G55WW-2-SSSSS-B

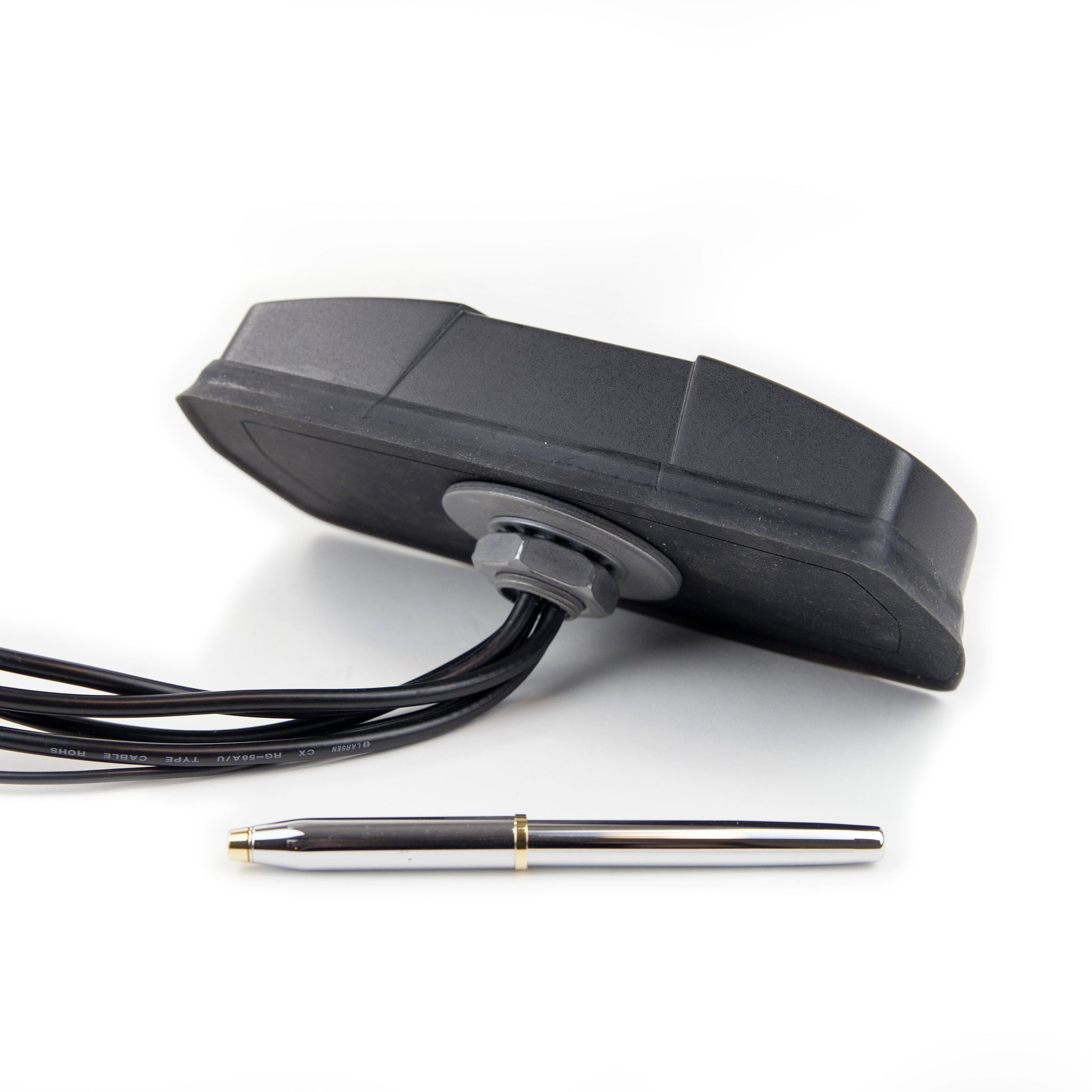

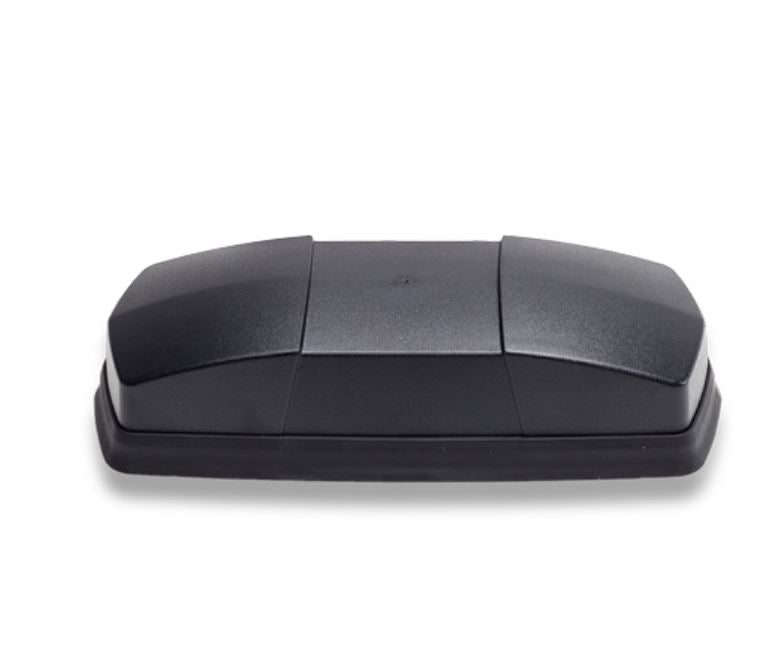

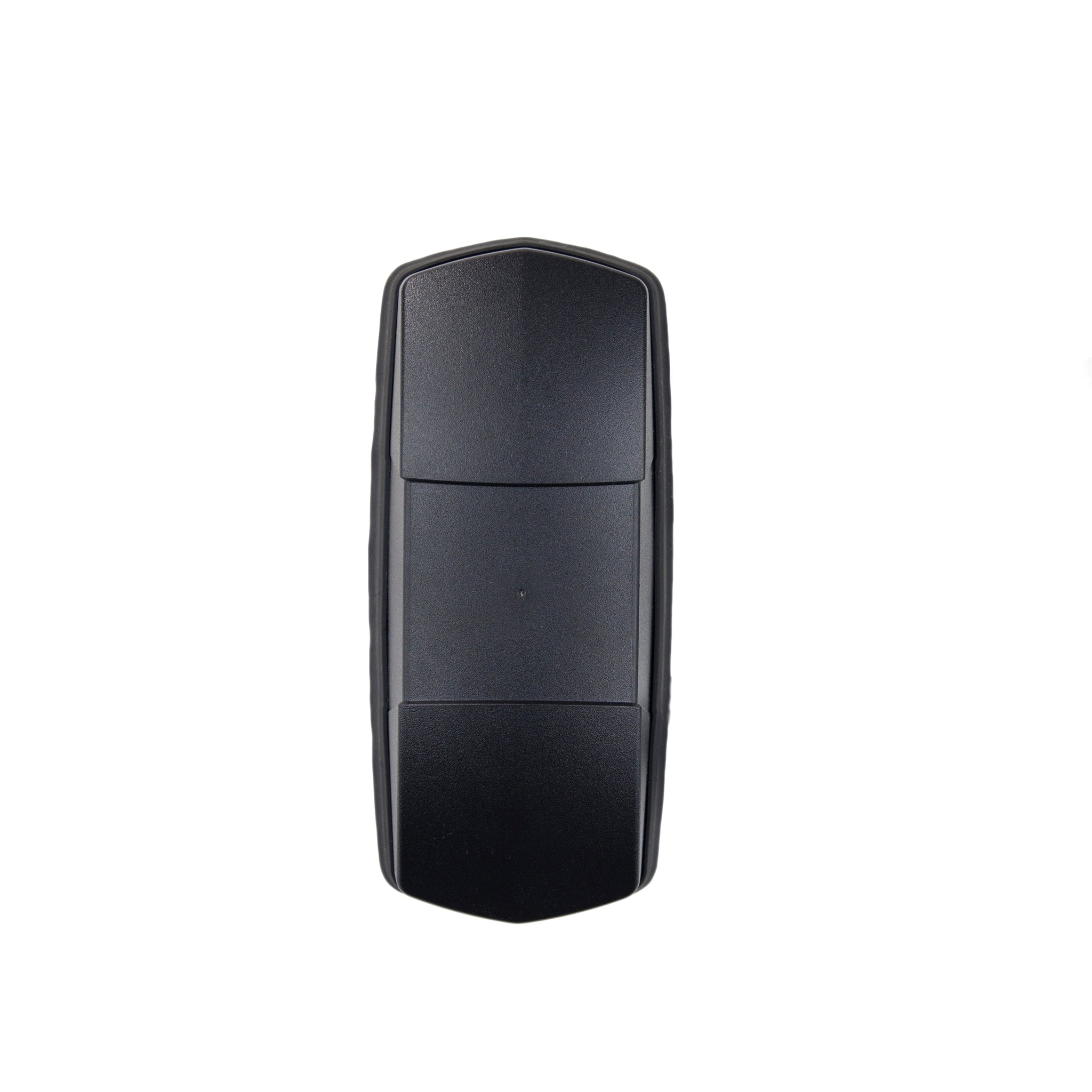

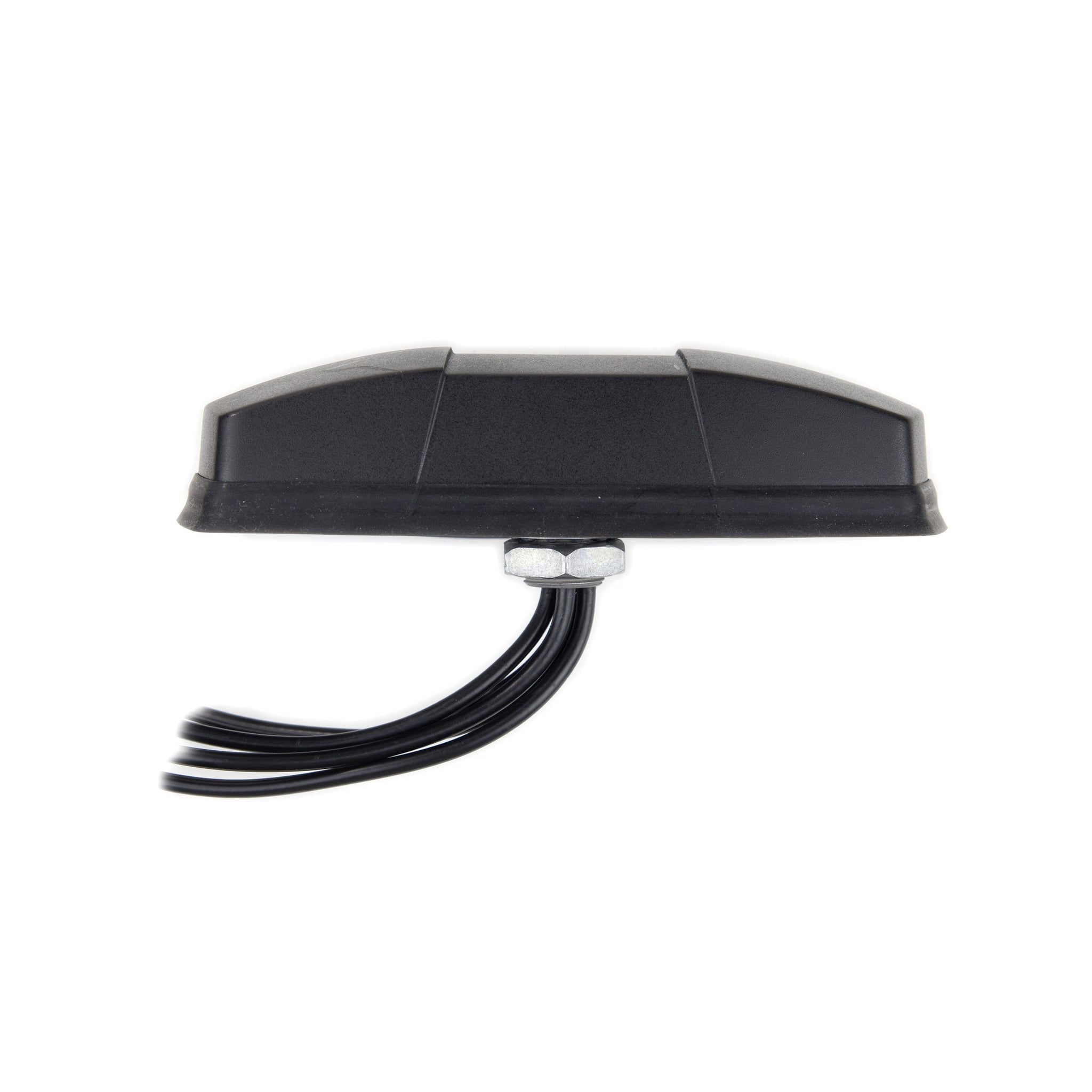

More InfoDocumentsSpecifications ReviewsLa antena RFMAX "Brick" # RBDM-G55WW-2-SSSSS-B es una antena de montaje directo ultrarresistente , de perfil bajo y preparada para 5G con cables de baja pérdida de 2 pies de largo. Está diseñado para aplicaciones de máquina a máquina 4G/LTE o 5G (sub 6) M2M. La unidad mide 7,9 x 3,5 pulgadas, con una altura de sólo 1,8 pulgadas. Esta antena está diseñada para funcionamiento celular de 600 a 6000 Mhz y cumple con todas las especificaciones 5G, así como con las especificaciones 3G/4G/LTE de los principales operadores de telefonía celular de América del Norte, incluidos AT&T, Verizon, Sprint y T-Mobile.
More Information
The best sub-6 antenna 4G/5G on the market today for M2M - machine to machine use. This unit is ultra-rugged!
- Sub-6, 5G Ready RFMAX "Brick" Antenna (Covers, 3G, 4G, LTE, 5G, Band 71, CBRS, FirstNet)
- Size: 7.9 x 3.4 x 1.8 Inches
- Elements: MiMo 5G (backward compatible to 3G/4G/LTE) MiMo WiFi & GPS/GNSS
- High Gain at all frequencies for maximum connection speeds
- Designed for Indoor or Outdoor Installations (IP67 rated)
- Easy to install, Rugged & 100% Vandal Proof
- Approved for use with all major carriers: AT&T, Verizon, Sprint
- Optimized for Cradlepoint, Sierra Wireless, PepWave, Multi-Tech Modems & Routers
Documents
También recomendamos
Specifications
| SKU | RBDMG55WW2SSSSSB |
|---|---|
| Manufacturer Part Number | RBDM-G55WW-2-SSSSS-B |
| Manufacturer | RFMAX |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 617-960 MHz (Cell) |
| Gain | 3.3 dBi |
| Working Frequency 2 | 1710-6000 MHz (Cell) |
| Gain 2 | 5.2 dBi |
| Working Frequency 3 | 2400-2500 MHz (WiFi) |
| Gain 3 | 5.4 dBi |
| Working Frequency 4 | 5150-5925 MHz (WiFi) |
| Gain 4 | 6.3 dBi |
| Working Frequency 5 | 1561-1602 MHz GPS/GNSS/Baido |
| Gain 5 | 30 dB LNA Gain |
| Antenna Style | "Brick" Multi-Element Antenna |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | <2.2:1 (Cell) <2.0:1 (WiFi & GPS) |
| Horizontal/Azimuth Beamwidth | 360 |
| Plenum/Fire Rating | UV Stable, UL94 Radome |
| No Of Elements | 5 |

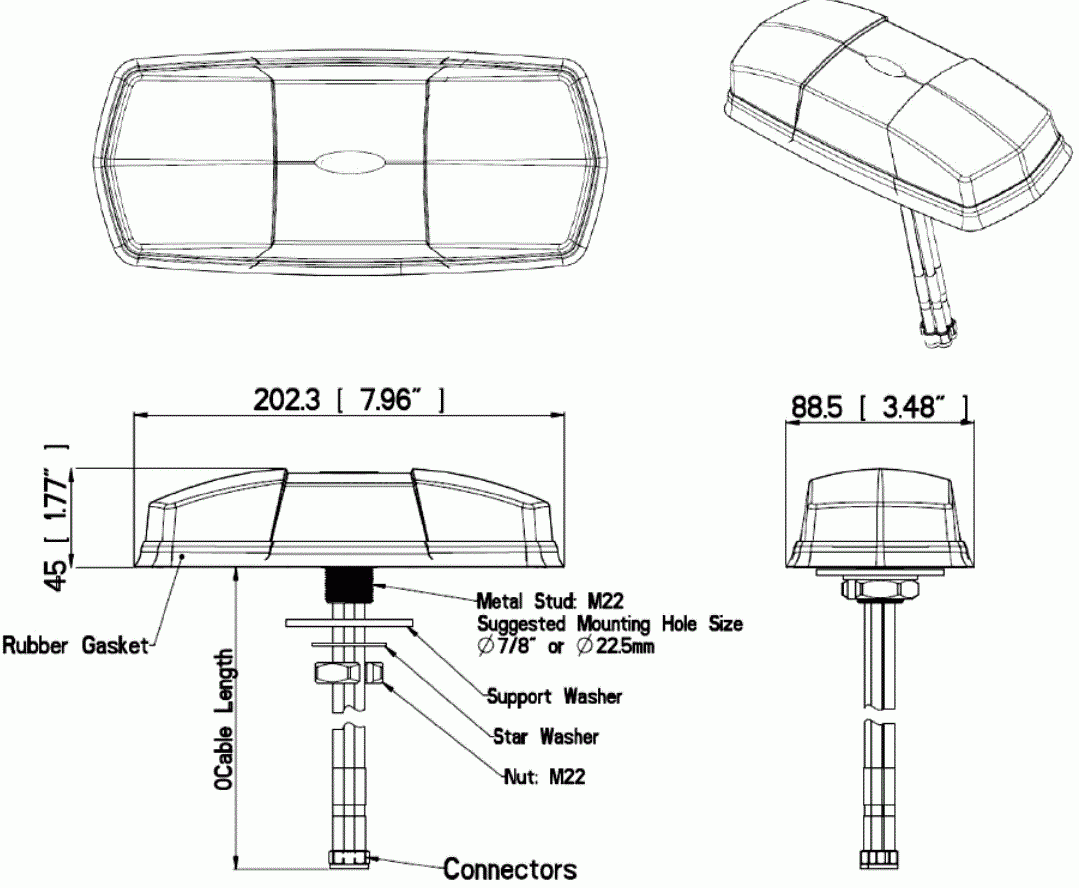

| Height/Length (inches) | 7.9 |
| Height/Length (mm) | 202 |
| Width (inches) | 3.4 |
| Width (mm) | 88 |
| Thickness/Diameter (inches) | 1.8 |
| Thickness/Diameter (mm) | 45 |
| Weight (lbs) | 2 |
| Material | UV Stable, UL94 Radome |
| Operating Temp (celsius) | -40 to +85 C |

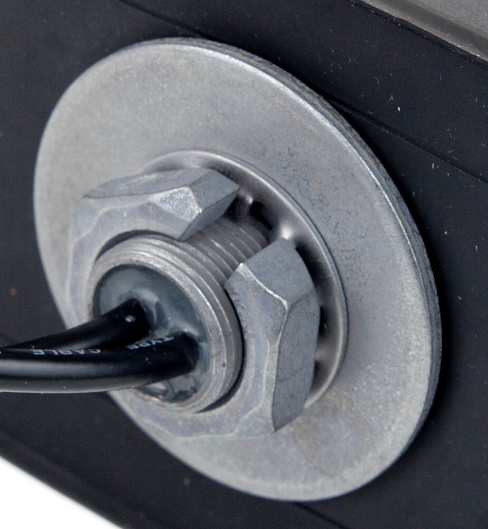

| Mount Style | Direct Mount |
| Color | Black |
| Number of Cables | 5 |
| Cable Length (inches) | 24 |
| Connector 1 | SMA-Male |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Ground Plane Required | No |
| Product Condition | New |
