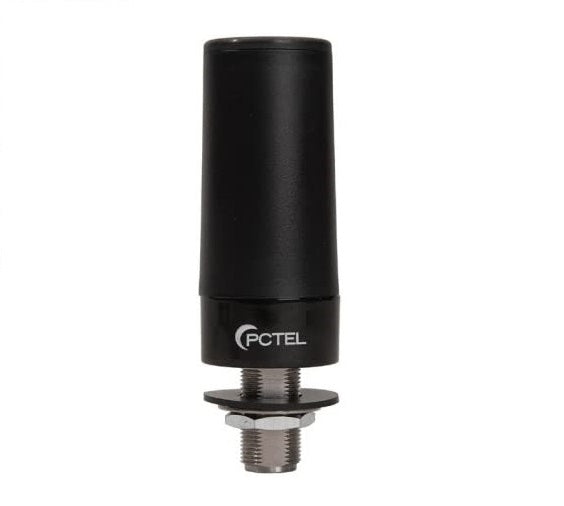

BMLPVMBLTENGP-VP: Antena BMLPV de perfil bajo PCTEL/Maxrad, a prueba de vandalismo, 698-2700 MHz, 3 dBi, negro, conector N-hembra - NO se requiere plano de tierra
BMLPVMBLTENGP-VP
Los gastos de envío se calculan en la pantalla de pagos.
BMLPVMBLTENGP-VP: Antena BMLPV de perfil bajo PCTEL/Maxrad, a prueba de vandalismo, 698-2700 MHz, 3 dBi, negro, conector N-hembra - NO se requiere plano de tierra
More InfoDocumentsSpecifications ReviewsEl BMLPVMBLTENGP-VP cubre el rango de frecuencia de 698-2700 MHz con una ganancia promedio de 3 dBi. NO es necesario montar esta antena en un plano de tierra metálico. Aplicaciones que requieren mínima visibilidad.
More Information
The BMLPVMBLTENGP-VP covers 698-2700 MHz frequency range with an average gain of 3 dBi. This antenna is NOT required to be mounted on a metallic ground plane. Applications requiring minimum visibility.
Features:
- The BLPV antennas feature an attractive, compact package and are ideal for indoor or outdoor.
- Excellent pattern coverage for mobile and base station applications.
- Compatible with all 3/4 in hole mounts for easier installation.
- No tuning required. Allows faster, more reliable installations.
Documents
También recomendamos
PT195-003-SNM-SSM
PT195-003-SNM-SSM: Conjunto de cables LMR 195 de 3 pies con conectores N-Macho y SMA-Macho
$30.23
$30.23
View Details
PT195-006-SNM-SSM
Cable equivalente al tipo LMR195: N-macho estándar a SMA-macho estándar - 6 pies
$33.30
$33.30
View Details
RBDM-55-SS-6
Antena celular 2x2 MiMo 5G, lista para banda 71 (4G-LTE) para comunicación de máquina a máquina. RBDM-55-SS-6
$128.70
$128.70
$119.60
$119.60
View Details
RSGB-4-MM-10SSM
Antena LTE de perfil bajo/disfrazada con montaje magnético (3G/4G/LTE-M, LTE Cat-M1, Banda 25 y Banda 41) para cajeros automáticos, máquinas expendedoras, quioscos, señales digitales, etc. RSGB-4-MM-10SSM
$86.73
$86.73
View Details
Specifications
| SKU | BMLPVMBLTENGPVP |
|---|---|
| Manufacturer Part Number | BMLPVMBLTENGP-VP |
| Manufacturer | PCTEL |
| Antenna Category | 4G/LTE (698-2700 MHz) |
| Working Frequency | 698-2700 MHz |
| Gain | 3 dBi |
| Antenna Style | Low Profile Antenna |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohm |
| Max Input Power (W) | 100 |
| VSWR: < X: 1 | < 2.0:1 |
| Height/Length (inches) | 2.4 |
| Height/Length (mm) | 60.96 |
| Width (inches) | 1.5 |
| Width (mm) | 38.1 |
| Weight (lbs) | 0.29 |
| Material | XENOY 572OU-7014, UV STABLE |
| Operating Temp (celsius) | -40°C to +85°C |
| Mount Style | Permanent |
| Color | Black |
| Connector 1 | N-Female |
| IP Rating | IP67 |
| Vehicular | No |
| Product Condition | New |
