AN2010: Kit extensor de alcance externo para computadoras móviles Motorola/Zebra/Psion VC5090 y VH10
AN2010
AN2010: Kit extensor de alcance externo para computadoras móviles Motorola/Zebra/Psion VC5090 y VH10
More InfoDocumentsSpecifications ReviewsMore Information

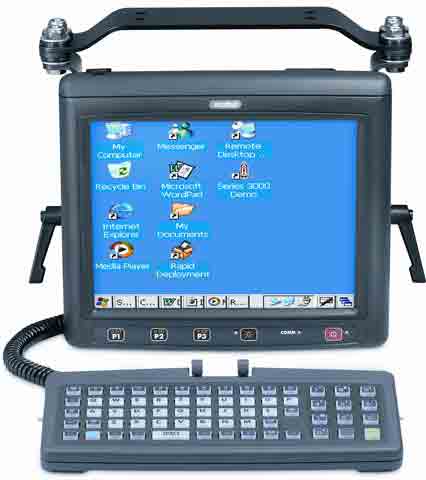

RFMAX Range Extender Kits for the Motorola, Zebra, Psion VC5090 or VH10 Forklikft Mounted Mobile Computers provide a significant boost in RF / Wi-Fi connectivity to your LAN for the VC5090 or VH10. This kit is typically used as a Forklift Antenna, or truck mounted, to connect your VC5090 or VH10 to the wireless network in the warehouse or distribution center.

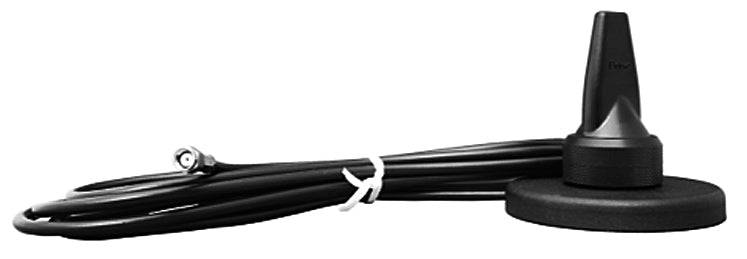

The antenna operates at both 2.4 and 5.0 GHz with a gain of 4.5/5.5 dBi for 802.11 A,B,G,N. The magnetic NMO mount features a powerful magnet and is designed to mount outside the vehicle cabin or roll cage for maximum performance. During installation, you *MUST* set your computer's settings to default to the external antenna.
Documents
Specifications
SKU | AN2010 |
---|---|
Manufacturer Part Number | AN2010 |
Manufacturer | Zebra |
Antenna Category | WiFi (2.4 & 5.0 GHz) |
Working Frequency | 2.4 - 2.5 GHz |
Gain | 4.5 dBi |
Working Frequency 2 | 4.9 - 5.9 GHz |
Gain 2 | 5.5 dBi |
Polarity | Vertical |
Bands | Multi |
SISO or MIMO | SISO |
Directional or Omni | Omnidirectional |
VSWR: < X: 1 | 2.0:1 |
Height/Length (inches) | 2.5 |
Mount Style | 3/4" NMO High Frequency |
Color | Black |
Connector Type | Cable - Side Entry |
Cable Type | RG-58/U |
Number of Cables | 1 |
Cable Length (inches) | 12 feet |
Connector 1 | RP SMA-Male |
Includes | antenna, mag mount, cable and connector |
OK for Outdoor Use | Yes |
Vehicular | Yes |
Ground Plane Required | Yes |
Product Condition | New |
