Montaje NMO con orificio pasante de latón de 3/4 de pulgada con cable RG-58A/U de 17 pies y conectores macho BNC

  • $21.00
    Precio unitario por

RNMOT-58A-SBM-B-17


+ -
¡Solo 20 restantes!
Plazo de entrega para cantidades superiores a 20 :  Ships in 6-8 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

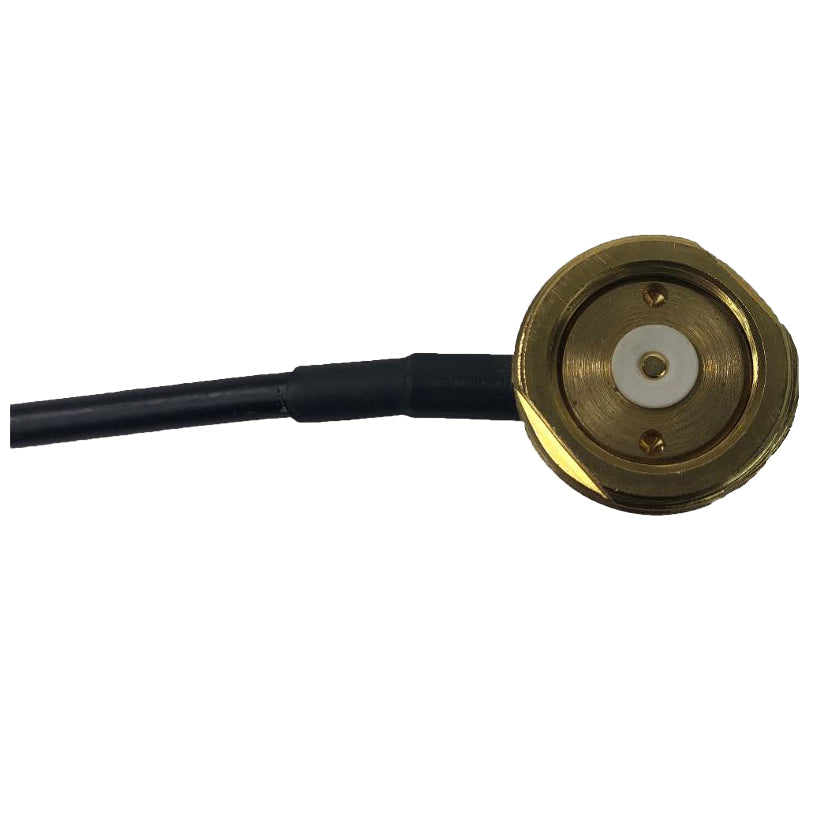

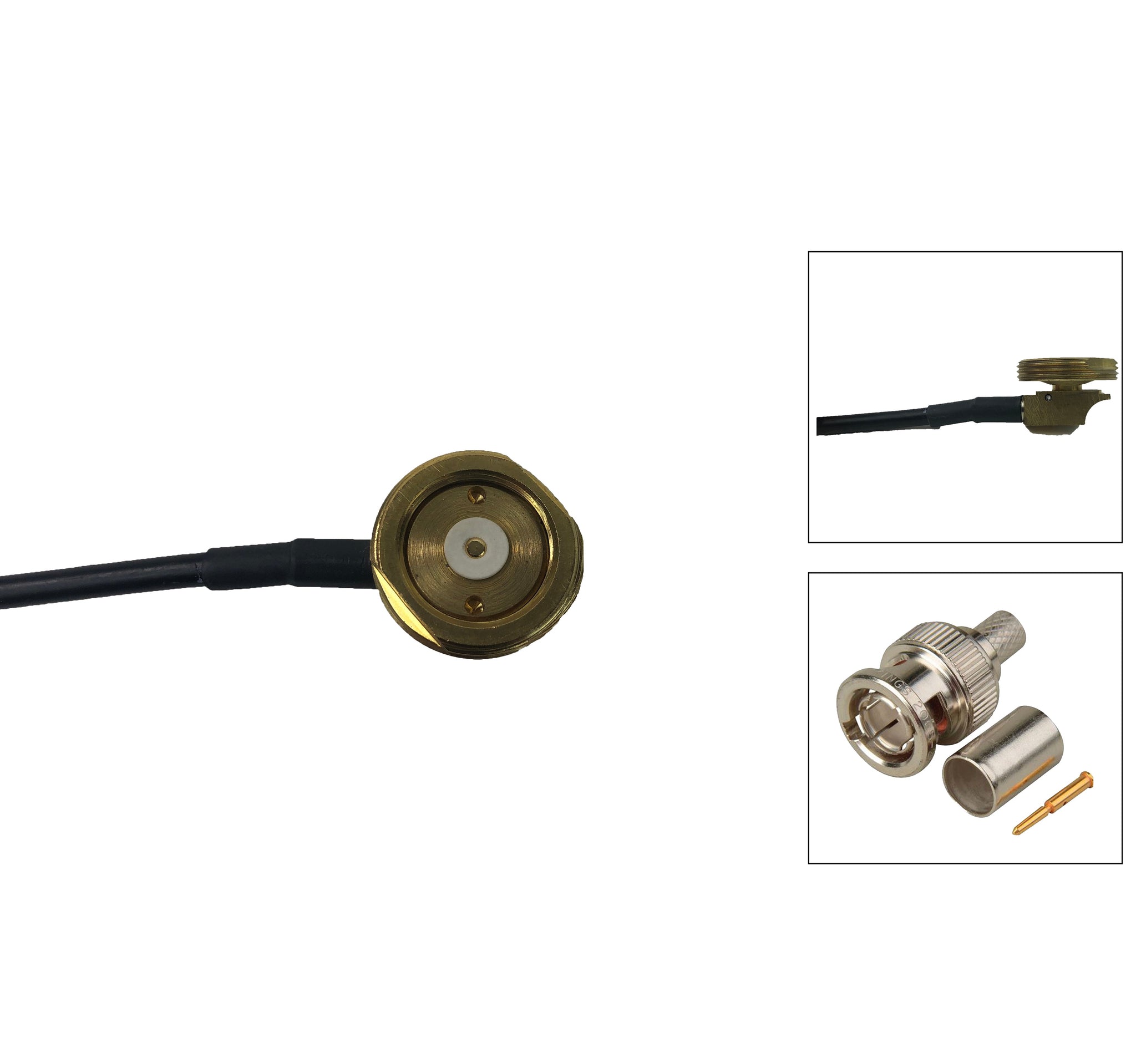

Montaje NMO con orificio pasante de latón de 3/4 de pulgada con cable RG-58A/U de 17 pies y conectores macho BNC

More InfoDocumentsSpecifications Reviews

Este soporte NMO de orificio pasante RFMAX de 3/4 está optimizado para el montaje en techo de vehículos de una antena tipo NMO. Normalmente utilizado con antenas VHF o UHF, el RNMOT-58A-SBM-B-17 incluye una antena de 17 pies. Cable RG-58A/U (conductor de cobre sólido) y BNC-Macho

Si este no es el soporte NMO que está buscando, haga clic aquí para encontrar todos los soportes NMO que tenemos o envíe un correo electrónico a customerservice@arcadianinc.com para comunicarse con uno de los miembros de nuestro equipo de servicio al cliente.

Tenga en cuenta: este soporte NMO requiere un orificio perforado; utilice la pieza n.° HS34 .



More Information

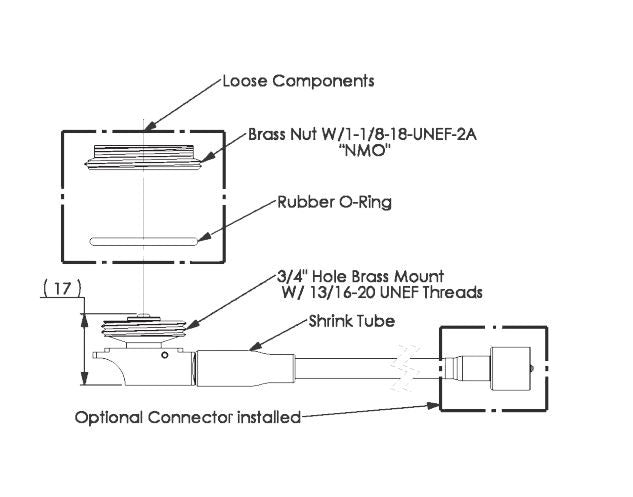

3/4 inch Thru-hole NMO mount with 17 Ft of RG-58A/U cable, BNC Male connector, Brass

FEATURES

  • 3/4 Thru-Hole NMO Mount
  • 17 Ft. RG-58A/U Cable

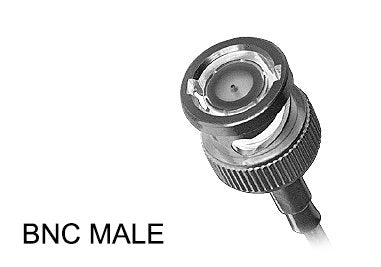

  • BNC-Male Connector Included
  • 5 Year Factory Warranty
Cable TypeAttenuation (dB/100 ft)
 150 MHZ450 MHZ900 MHZ
RG-58/U5.4010.2016.10
RG-58A/U6.2012.5020.00

***Use the chart above to compare the attenuation for these cable types


Documents


Specifications

SKU RNMOT58ASBMB17
Manufacturer Part Number RNMOT-58A-SBM-B-17
Manufacturer RFMAX
Antenna Style Mounts and Brackets
NMO Mount Type Thru Hole NMO mount
Mount Style 3/4 Thru-Hole NMO Mount
Connector 1 BNC-Male
Cable Length (Mounts) 17 Feet
Cable Type RG-58A/U
Cable Length (inches) 204
Cable Length (mm) 5181.6
Weight (lbs) 0.5
Weight (grams) 227.27
Used for Roof Thickness Up to 1/8 inch
Color Brass
Vehicular Yes
OK for Outdoor Use Yes
Product Condition New
