Antena de montaje magnético MiMo WiFi y WiFi6e 2x2 para montacargas Cables de 12 pies y conectores RP-SMA | RBMM-WW-RR-12
RBMM-WW-RR-12
Los gastos de envío se calculan en la pantalla de pagos.
Antena de montaje magnético MiMo WiFi y WiFi6e 2x2 para montacargas Cables de 12 pies y conectores RP-SMA | RBMM-WW-RR-12
More InfoDocumentsSpecifications Reviews

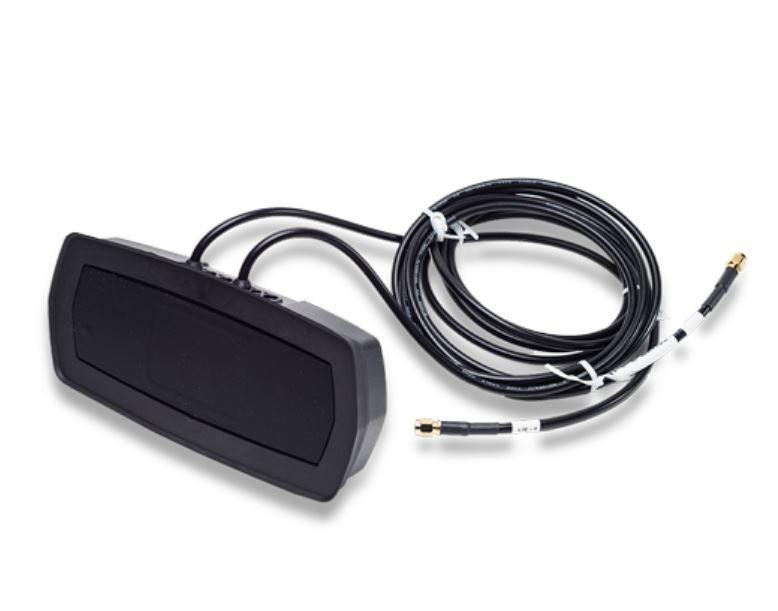

La RFMAX RBMM-WW-RR-12 es una antena externa de montaje magnético con elementos WiFi duales para conectividad MiMo. Este modelo está optimizado para su uso con computadoras resistentes montadas en vehículos en montacargas, camiones de jardín, grúas, etc. Este modelo tiene cables de 12 pies y conectores RP SMA-Macho. Homologado para Zebra: VC80, VC80x, VC8300, etc.
More Information

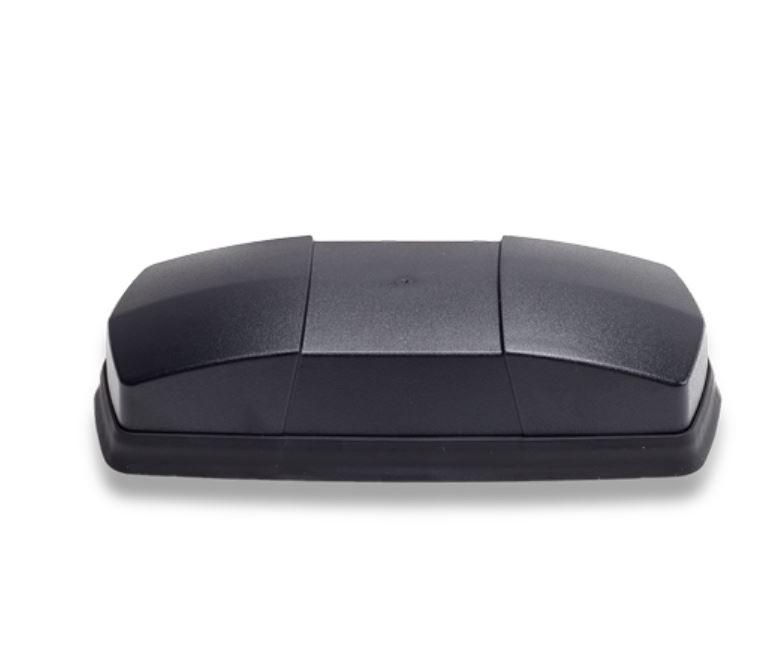

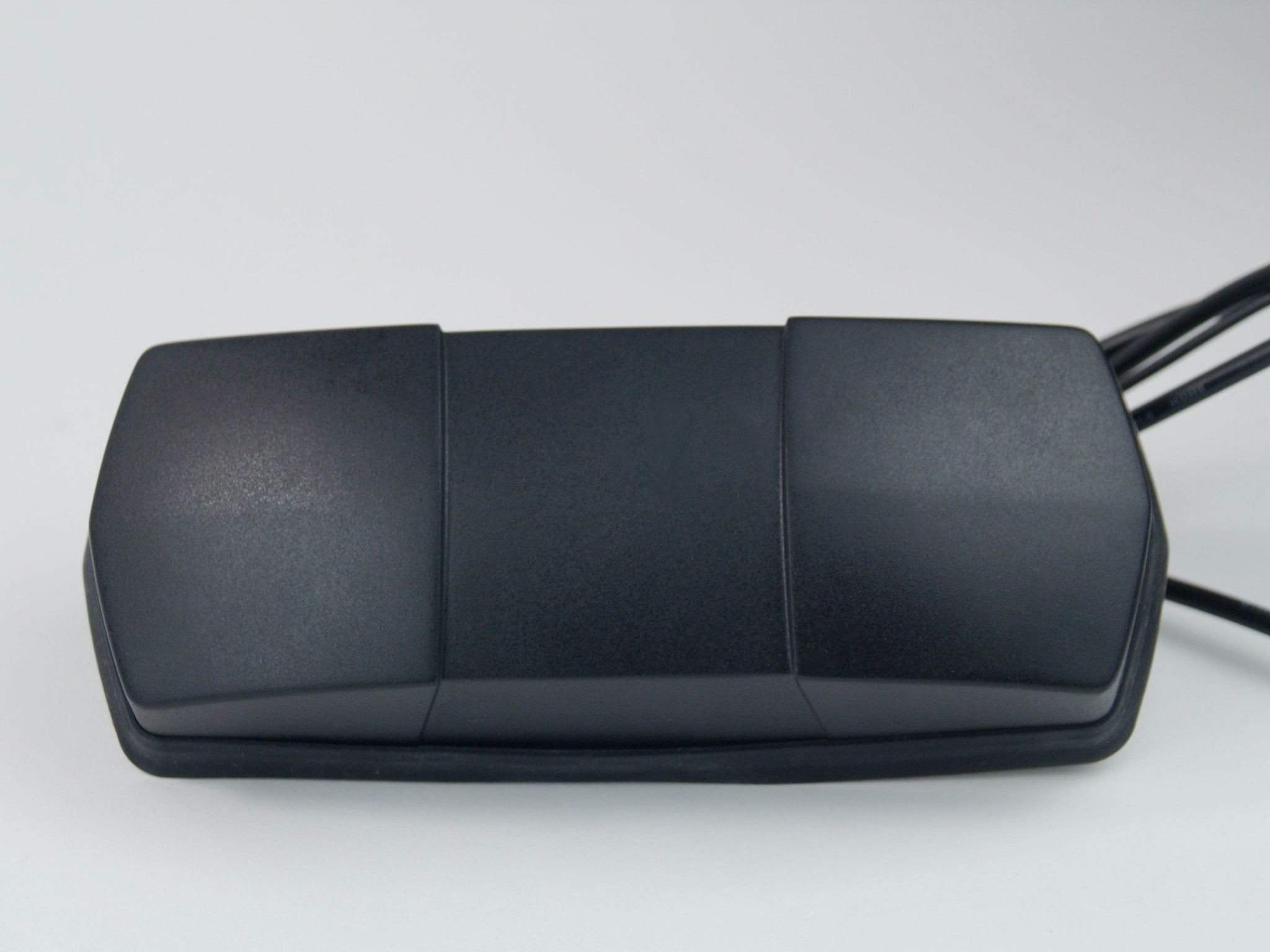

RFMAX "Brick" Antenna
Size: 7.9 x 3.4 x 1.8 Inches
Same footprint as Antenna Plus, but lower profile
Elements: Dual WiFi, WiFi6
High Gain at all frequencies for maximum connection speeds
Designed for Indoor or Outdoor Installations (IP65 rated)
Easy to install Magnetic Mounting, Rugged & Vandal Resistant
Documents
Specifications
| SKU | RBMMWWRR12 |
|---|---|
| Manufacturer Part Number | RBMM-WW-RR-12 |
| Manufacturer | RFMAX |
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Working Frequency | 600-6000 MHz |
| Gain | 1.5 dBi @ 617-960 MHz |
| Gain 2 | 4.5 dBi @ 1710-2690 MHz |
| Gain 3 | 6.3 dBi @ 5150-5925 MHz |
| Antenna Style | "Brick" Multi-Element Antenna |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | <2:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Plenum/Fire Rating | UL-94 |
| No Of Elements | 2 |
| Cable Length - PT195 | 12 Feet |
| Height/Length (inches) | 7.9 |
| Height/Length (mm) | 202 |
| Width (inches) | 3.4 |
| Width (mm) | 88 |
| Thickness/Diameter (inches) | 1.8 |
| Thickness/Diameter (mm) | 45 |
| Weight (lbs) | 2 |
| Material | UV Stable, UL94 Radome |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | Magnetic Mount |
| Color | Black |
| Cable Type | LMR195 |
| Number of Cables | 2 |
| Cable Length (inches) | 144 |
| Connector 1 | RP SMA-Male |
| Connector 2 | RP SMA-Male |
| IP Rating | IP65 |
| Vehicular | Yes |
| Ground Plane Required | no |
| Product Condition | New |
