Antena mimo 4g lte con antena DAS direccional de bajo PIM de montaje en poste MIMO de 2 puertos - N-hembra fija

  • $325.29
    Precio unitario por

PAS69278P-FNF


+ -
0 en existencia. Sujeto al tiempo de entrega de fábrica
Volume Price Breaks
Quantity: Unit Price:
100 $294.10
Tiempo de espera:  Ships in 10-12 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

Antena mimo 4g lte con antena DAS direccional de bajo PIM de montaje en poste MIMO de 2 puertos - N-hembra fija

More InfoDocumentsSpecifications Reviews

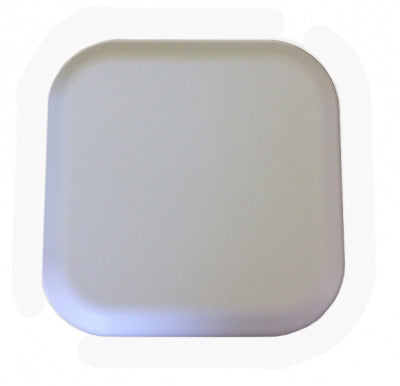

La PAS69278P-FNF es una antena de panel mimo direccional 4g lte de baja PIM y alta ganancia para interior/exterior con clasificación IP55.


More Information

This Patent Pending PAS69278P-FNF antenna is a wide-band dual-port MIMO panel antenna with slant 45 polarization that covers the domestic LTE700/Cellular/PCS/AWS/MDS and global GSM900/GSM1800/UMTS/LTE2600 bands. The antenna is ideal for both indoor and outdoor applications, and features a UV-stable radome enclosure for years of use without degradation to either the mechanical properties or aesthetics.

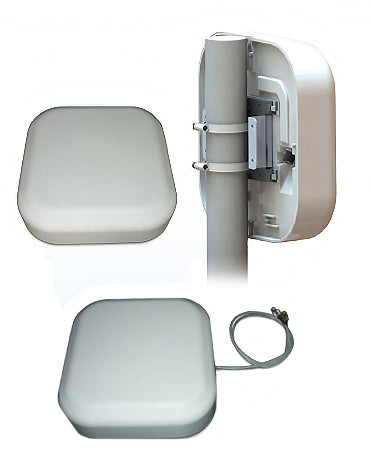

This is a very high performance antenna - at only 12x12 inches it is able to produce between 8-10 dBi gain from 698-2700 Mhz. This unit for was designed for use in 3G/4G-LTE iDAS in-building cellular installations, offering dual polarity (dual slant-45 degrees) for maximum performance. The unit has with dual fixed N-female connectors on the rear, and comes with a standard wall or pole mounting kit. Best of all, the unit is carrier approved. AT&T # ANT.14806

The PAS69278P-FNF features low-PIM for 3G/4G/LTE DAS in-building wireless installations, and is wall or pole mountable with N-female connectors.

FEATURES:

  • Works with 3G/4G, domestic LTE 700, global LTE 2600, WiMax 2300/2500, domestic cellular and global GSM
  • Weatherproof UV stable radome
  • Low Passive Inter-Modulation (PIM)
  • Conformance to RoHS

APPLICATIONS:

  • In-building Wireless Networks
  • 802.11b/g/n
  • DAS/oDAS
  • Wireless Terminal, Point-of- Sale, Machine-to-Machine
  • Automatic meter reading and home security

Documents


Specifications

SKU PAS69278PFNF
Manufacturer Part Number PAS69278P-FNF
Manufacturer Laird
Antenna Category 4G/LTE (698-2700 MHz)
Working Frequency 698-960 MHz
Gain 9
Working Frequency 2 850-900 MHz
Gain 2 10
Working Frequency 3 1800-1900 MHz
Gain 3 8.5
Working Frequency 4 2100-2300
Gain 4 9
Working Frequency 5 2700
Gain 5 10
Antenna Style Panel Antenna
Polarity Dual Polarity
Bands Multi
SISO or MIMO MIMO
Directional or Omni Directional
Impedance 50
Max Input Power (W) 50
VSWR: < X: 1 2
Pim Rating (@ 2x20 W) -150
Plenum/Fire Rating UL94 V-0
Height/Length (inches) 11.6
Height/Length (mm) 295
Width (inches) 11.6
Width (mm) 295
Thickness/Diameter (inches) 3.23
Thickness/Diameter (mm) 82
Weight (lbs) 3.5
Weight (grams) 1460
Material ABS
Operating Temp (celsius) -40 TO +70
Mount Style Mast or Wall
Mount Pattern Includes Kit
Color White
Connector Type Connector - Rear
Connector 1 N-Female
Connector 2 N-Female
Includes Wall / Mast Mount Kit
IP Rating IP55
OK for Outdoor Use Yes
Product Condition New
