170653-001: Antena de montaje adhesivo Cradlepoint 3 en 1 1 x GPS y 2 x LTE
170653-001

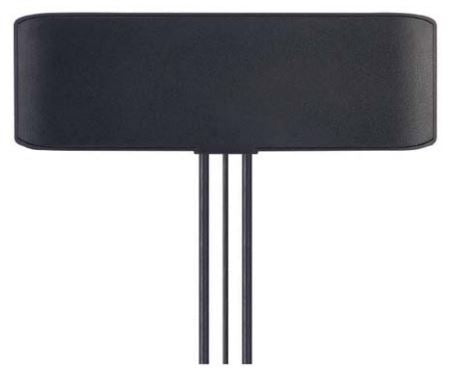

170653-001: Antena de montaje adhesivo Cradlepoint 3 en 1 1 x GPS y 2 x LTE
More InfoSpecifications ReviewsPara usar con todos los productos AER, ARC y COR con módems integrados:
Características
• Antena IP67
• 1x GPS-GLONASS: 2 metros RG-174 SMA(M)
• 2x LTE: 2 metros NFC-200 SMA(M)ST de baja pérdida
• Dimensiones: 205,8 mm x 58 mm x 12,4 mm
• RoHS
Cómo funciona:
La antena de montaje adhesivo 3 en 1 de Cradlepoint recogerá la señal de la torre celular y la enviará a través del cable al módem y enrutador Cradlepoint integrado o integrado. Cuando el módem transmite, la señal se transfiere directamente a la antena y se transmite de regreso a la torre de telefonía celular.
More Information
For use with all AER, ARC, and COR products with integrated modems:
Features
• IP67 Antenna
• 1x GPS-GLONASS: 2 meter RG-174 SMA(M)
• 2x LTE: 2 meter Low loss NFC-200 SMA(M)ST
• Dimensions: 205.8mm x 58mm x 12.4mm
• RoHS Compliant
How It Works:
Cradlepoint’s 3-in-1 adhesive mount antenna will collect the cell tower signal and send it through the cable to the integrated or embedded Cradlepoint modem and router. When the modem transmits, the signal is transferred directly to the antenna and broadcasted back to the cell tower.
Specifications
| SKU | 170653001 |
|---|---|
| Manufacturer Part Number | 170653-001 |
| Manufacturer | Cradlepoint |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Bands | Multi |
| SISO or MIMO | SISO |
| Product Condition | New |
