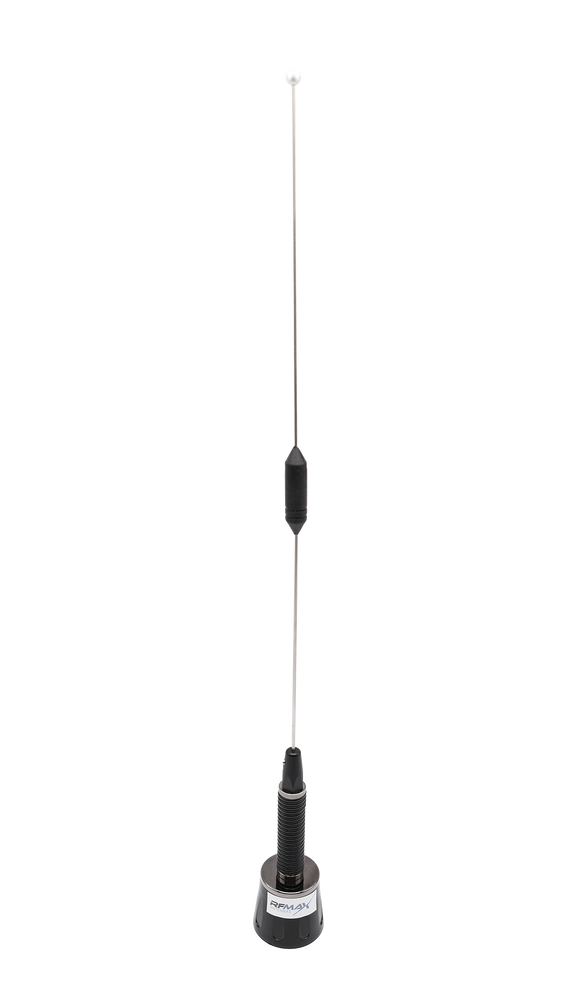

Super Flexible Whip Tri-Band Antenna For Motorola APX8500 (AN000131A01) & Harris All band P25 Radio | RBC150/450/758-FX

  • $75.00
    Unit price per

RBC150/450/758-FX


+ -
135 Can ship immediately
Lead time for qty above 135:  Ships in 10-12 Weeks

Shipping calculated at checkout.

Super Flexible Whip Tri-Band Antenna For Motorola APX8500 (AN000131A01) & Harris All band P25 Radio | RBC150/450/758-FX

More InfoSpecifications Reviews

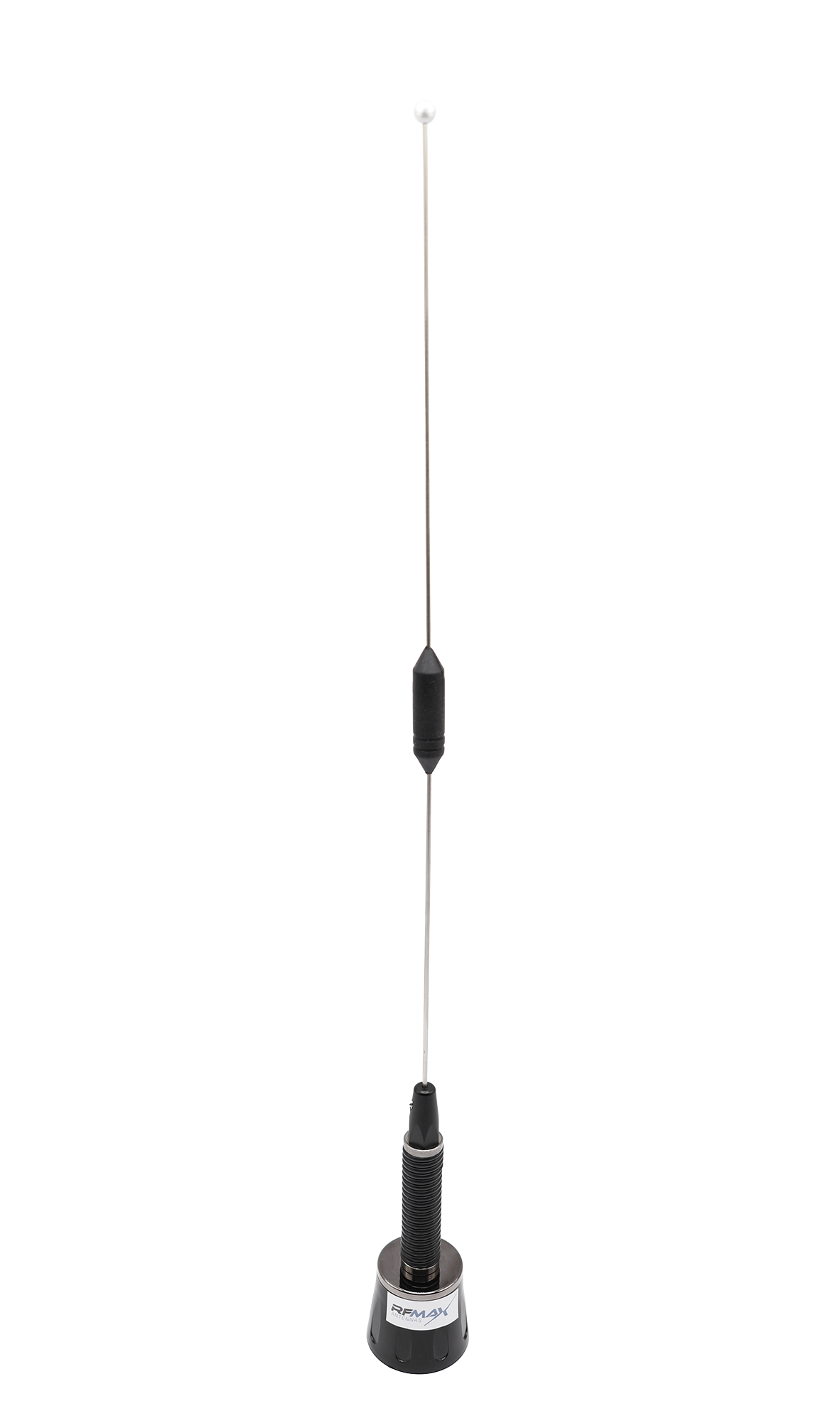

The RFMAX RBC150/450/758 is a Tri-band Whip antenna with a spring base designed for the Motorola’s APX8500™ and Harris Unity XG™, Harris All band & All-band P25 Radios. It is equivalent to the PCTEL PCTWSLMR and Motorola AN000131A01 all-band MONOPOLE antenna and operates over 150-174 MHz (VHF), 430-520 MHz (UHF) & 750-870 MHz (700/800/P25) offering a gain of 0dBi/5dBi/4dBi respectively. These antennas have standard NMO / New Motorola mounting. NMO cable kits must be purchased separately on this website.  This antenna survives low hanging obstacles MUCH better than the AN000131A01 (PCTWSLMR). This antenna requires a ground plane.
Compatible with: Motorola: APX8500, APX6500, Harris: Unity XG, DMR: CS800D



More Information

Arcadian Inc. is pleased to present the RFMAX Triband Whip Antenna, part # RBC150/450/758-FX. This antenna was designed to be paired with the Motorola APX4500, APX6500, & APX8500, Kenwood VM8000, as well as the Harris All band mobile radios, and will maximize the coverage area of any All-band P25 mobile radio. These all-band radios enable first responders to use a single mobile radio to exchange critical voice and data communications between multiple agencies and jurisdictions operating on different frequency bands. The RBC150/450/758 triband whip antenna provides an all in one solution by offering just ONE antenna operating at all three bands: 150-174 MHz, 430-520 MHz, and 750-870MHz. We’ve heard from many users of the Motorola APX8500 that the antennas supplied by the manufacturer that have a tall solid base which cannot survive impact from garages, branches and overhead structures, often causing the antenna to pull the entire NMO mount out of the vehicles rooftop. With a height of 17.81 inches, the RBC150/450/758 solves this problem by utilizing a low-positioned, flexible spring, to survive virtually any impact.


Specifications

SKU RBC150450758FX
Manufacturer Part Number RBC150/450/758-FX
Manufacturer RFMAX
Antenna Category Tri-band (VHF-UHF-700/800 MHz)
Working Frequency VHF:150-174 MHz
Gain Unity 0 dBi
Working Frequency 2 UHF: 430-520 MHz
Gain 2 5 dBi
Working Frequency 3 P25: 700/800: 750-870 MHz
Gain 3 4 dBi
Antenna Style Base Coil Antennas
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohms
Max Input Power (W) 100 Watts
VSWR: < X: 1 <2:1 at 150-165, 430-490 & 750-870 MHz. <2.5:1 at 165-174 & 490-520 MHz
Spring Loaded Yes
Height/Length (inches) 17.81 inches
Height/Length (mm) 452.5 mm
Thickness/Diameter (inches) 1.61 inches
Thickness/Diameter (mm) 40.9 mm
Weight (lbs) 0.45 lbs.
Weight (grams) 205 grams
Material Stainless Steel
Operating Temp (celsius) -40 to +85 C
Mount Style NMO
Color Black
Connector 1 NMO
IP Rating IP67
Vehicular Yes
Product Condition New
