Motorola APX8500 Low Profile Antenna with QMA. For All-Band P25 Mobile Radio. VHF, UHF, 700/800. | RBDM-155/490/758-17-Q-B
RBDM-155/490/758-17-Q-B
Shipping calculated at checkout.
Motorola APX8500 Low Profile Antenna with QMA. For All-Band P25 Mobile Radio. VHF, UHF, 700/800. | RBDM-155/490/758-17-Q-B

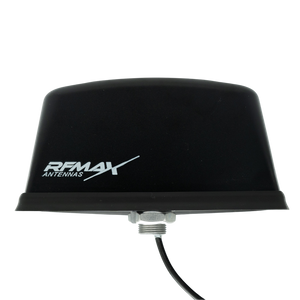

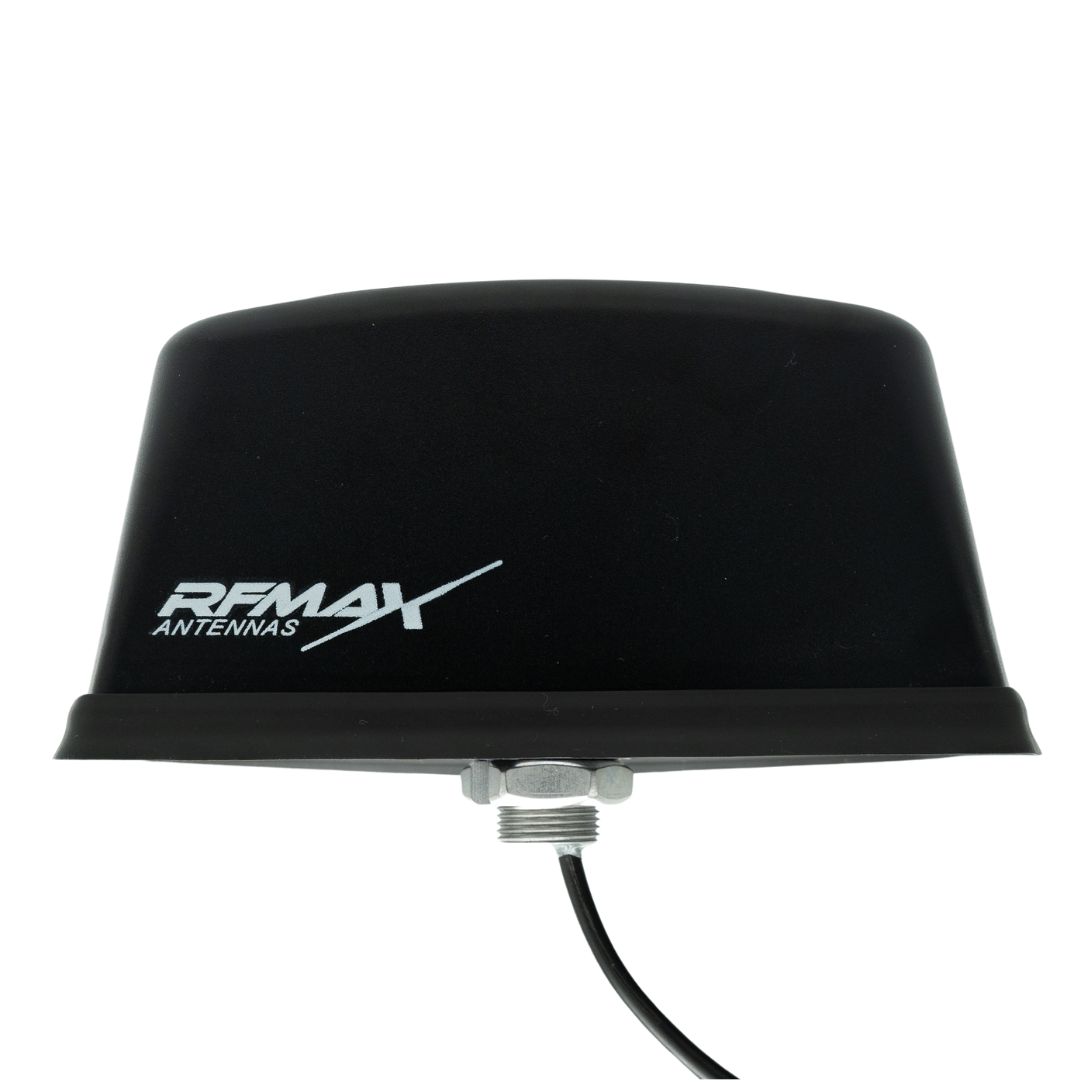

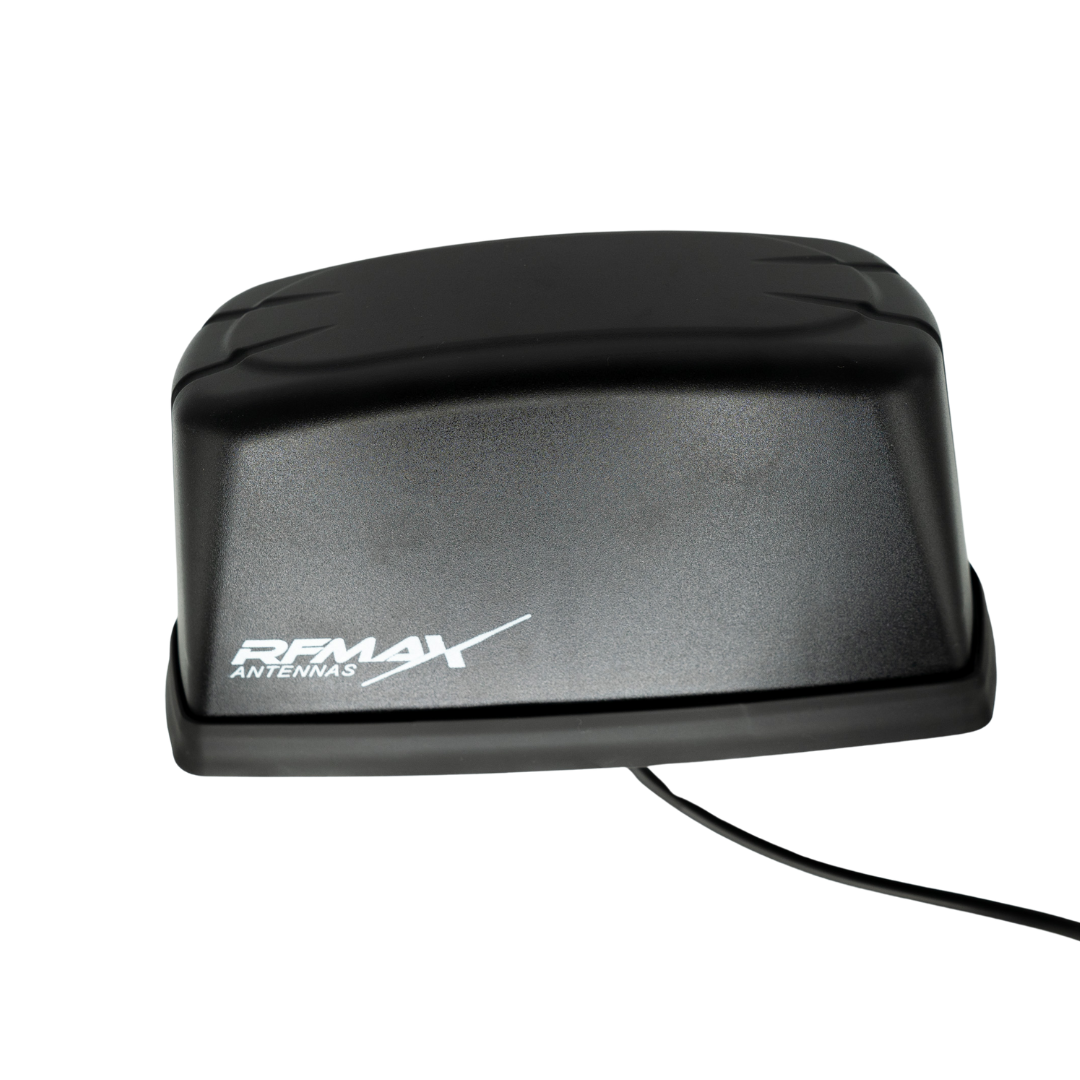

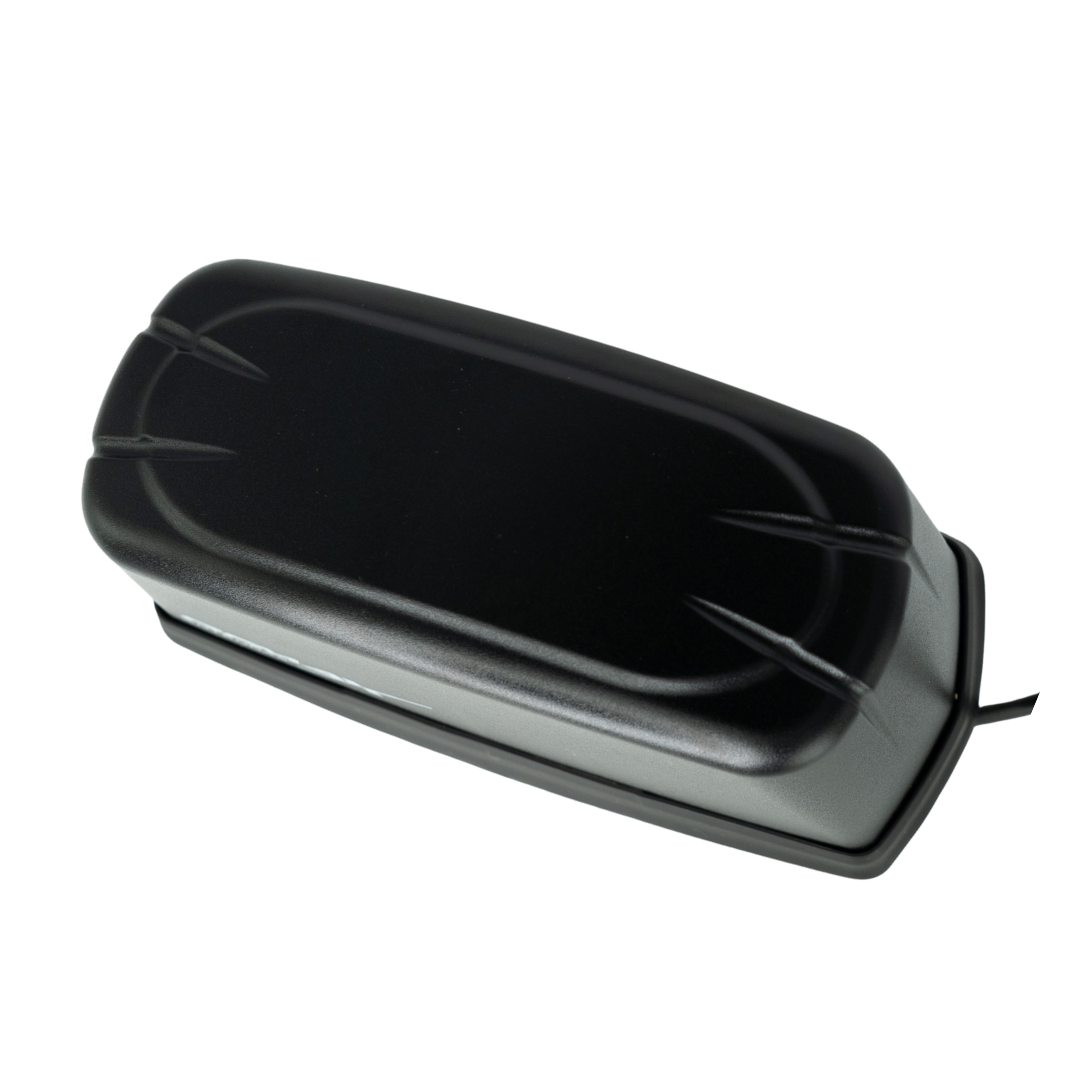

More InfoDocumentsSpecifications ReviewsThis LOW PROFILE antenna for the Motorola APX8500™ all-band mobile radio is the first of it's kind! A true "low-profile" roof mounted antenna with Tri-band capability to support VHF, UHF and 700/800 MHz P25 radio communication.
- True Tri-Band Capability in a Low-Pro Package.
- Operates at 153-157 MHz VHF, 470-512 MHz UHF & 750-870 MHz P25.
- Includes 17 feet of low loss cable & QMA Male pre-installed.
- NO MORE BROKEN ANTENNAS!
- Want to add GPS & WiFi for OTA? Add this antenna (click here)
- Contact us for more info: techsupport@arcadianinc.com
More Information
- True Tri-Band Capability in a Low-Pro Package.
- Operates at 153-157 VHF, 470-512 UHF & 750-870 MHz P25.
- Includes 17 feet of low loss cable & QMA Male pre-installed.
- NO MORE BROKEN ANTENNAS!
Documents
We Also Recommend
RBDM-155/490/758-17-S-B
Low profile Tri-Band Antenna For Motorola APX8500 T-Band P25 Radio | RBDM-155/490/758-17-S-B
$180.00
$180.00
View Details
RBC150/450/758
Tri-Band Antenna For Motorola APX8500 (AN000131A01) & Harris All band P25 Radio | RBC150/450/758
$72.45
$72.45
View Details
RBDM-G5W-17-QQQ-B
GPS + WiFi + 700/800 P25 (only) Antenna for Motorola APX 8500 Radio, for Ford Explorer, Chevy Tahoe , Dodge Durango and any Public Safety Vehicles Direct Mount (Not Compatible with VHF, UHF frequencies) | RBDM-G5W-17-QQQ-B
$198.00
$198.00
View Details
R2G5A-10SQM
GPS & 5G/4G/WiFi 2-in-1 Antenna for Motorola APX8500, Dashboard or Windshield Mount.10 ft Cables & QMA. Adhesive Mount. R2G5A-10SQM
$90.00
$90.00
View Details
Specifications
| SKU | RBDM15549075817QB |
|---|---|
| Manufacturer Part Number | RBDM-155/490/758-17-Q-B |
| Manufacturer | RFMAX |
| Antenna Category | Tri-band (VHF-UHF-700/800 MHz) |
| Working Frequency | VHF:153-157 MHz |
| Gain | VHF: -1 dBi |
| Working Frequency 2 | UHF: 470-512 MHz |
| Gain 2 | UHF: 1.4 dBi |
| Working Frequency 3 | P25: 700/800: 750-870 MHz |
| Gain 3 | P25 700/800: 2.7 dBi |
| Antenna Style | "Brick" Multi-Element Antenna |
| Bands | All-Band Radio |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 100 Watts Max Input Power |
| VSWR: < X: 1 | VHF: 3.5:1 at 153-157 MHz. UHF: 2:1 at 470-512 MHz. P25: 2:1 at 750-870 MHz |
| Height/Length (inches) | 3.78 inches tall |
| Thickness/Diameter (inches) | Length: 8 inches. Width at base: 3.5 inches. |
| Weight (lbs) | 1.16 lbs. |
| Material | UV Stable Plastic Antenna & Rubber Gasket |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | Direct Mount with 7/8" Stud |
| Color | Black |
| Connector 1 | QMA-Male |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes. Made for outdoor use. |
| Vehicular | Yes |
| Ground Plane Required | Yes-Mount on Metal Roof |
| Product Condition | New |
