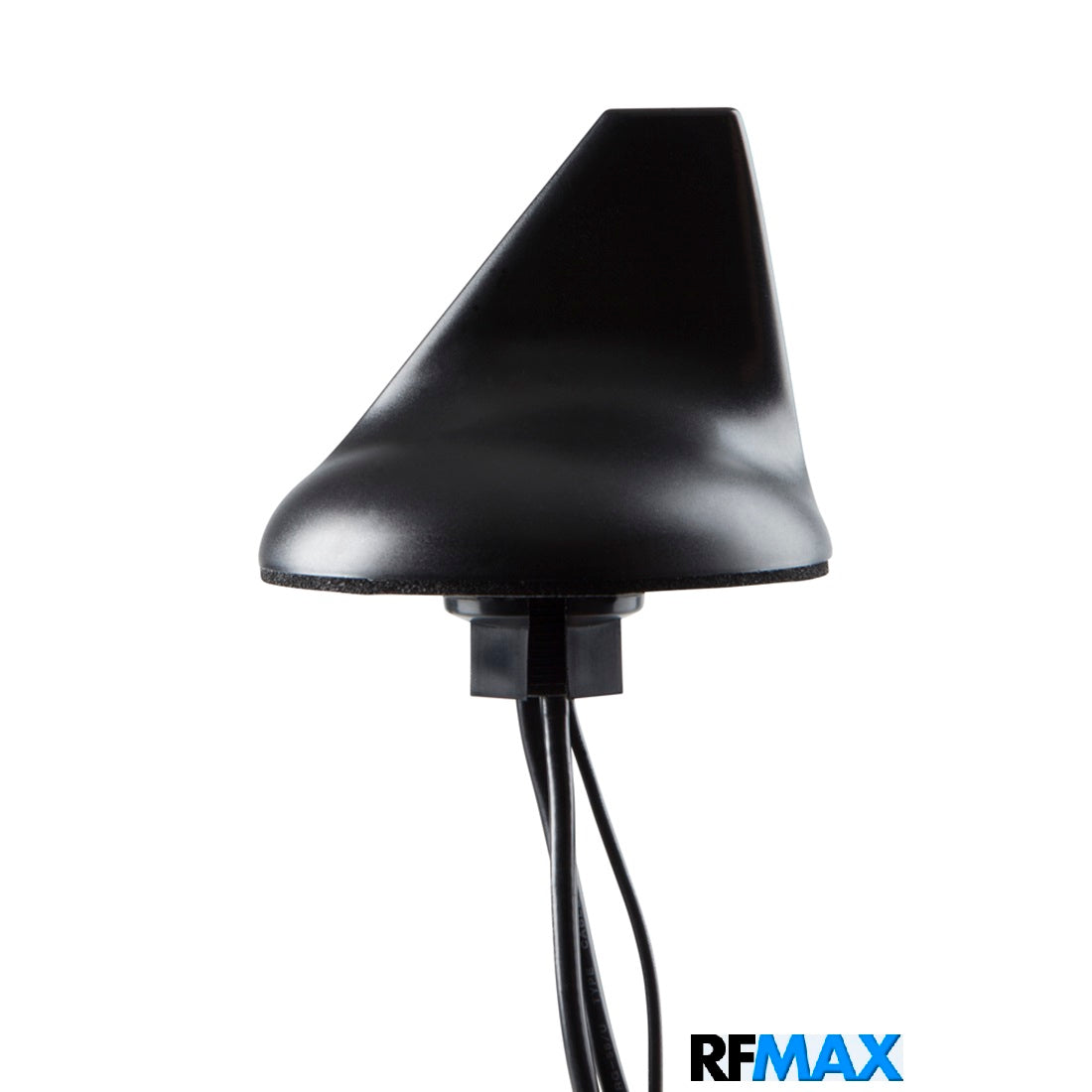

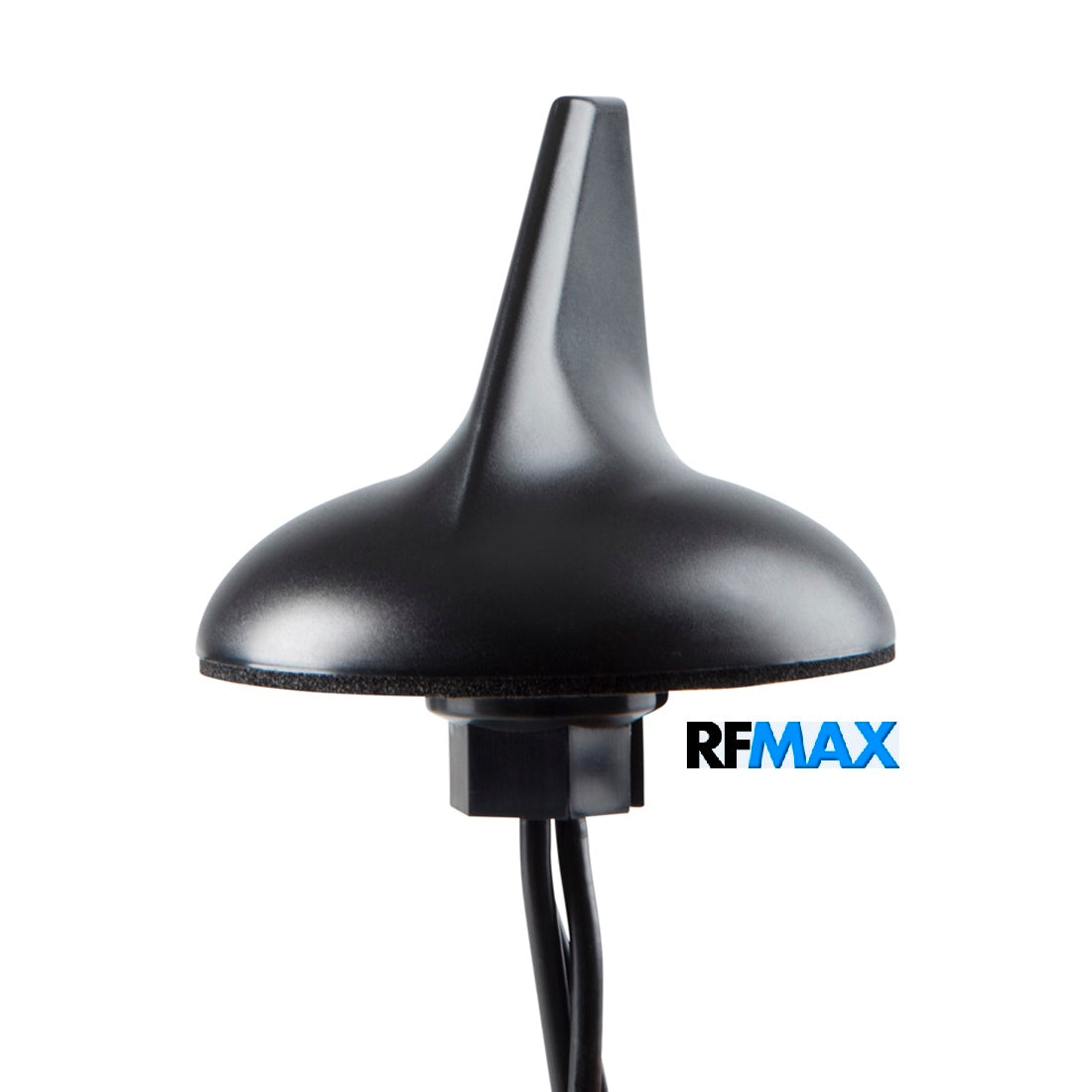

3 in 1 Antenna. GPS + 3G/4G/LTE + WiFi with TNC Male Connectors | RSF-DB-G4W-TTT

  • $232.00
    Unit price per

RSF-DB-G4W-TTT


+ -
9 Can ship immediately
Lead time for qty above 9:  Ships in 8-10 Weeks

Shipping calculated at checkout.

3 in 1 Antenna. GPS + 3G/4G/LTE + WiFi with TNC Male Connectors | RSF-DB-G4W-TTT

More InfoDocumentsSpecifications Reviews

*This Part is EOL, Click Here for Replacement R2SF-DB-G4W-TTT*

RSF-DB-G4W-TTT: 3 in 1 Antenna, GPS + 3G/4G/LTE + Wi-Fi with TNC Male Connector. This antenna was designed to work with all Triple Pass-Through Havis and Gamber Johnson Dockings station with TNC connector. Works with Dodge Durango, Chevy Tahoe, and any public Safety vehicle.
*Please note: This antenna does NOT fit on the 2020/2021 Ford Interceptor*

For the 2020/2021 Ford Explorer Interceptor Antenna, Click Here.

Compatible with Dell Latitude 5414, 7214, 5420, 5424, 7424, 7414, and 7212, Getac B300, and Panasonic Toughbook CF-19, Toughbook CF-20, Toughbook CF-33, Toughbook CF-53, Toughbook CF-54, Toughbook CF-31, Toughpad FZ-A2, Toughpad FZ-G1, and Toughpad FZ-M1/B2




More Information

RSF-DB-G4W-TTT: 3 in 1 Antenna, GPS + 3G/4G/LTE + WiFi with TNC Male Connector. This antenna was designed to work with all Triple Pass-Through Havis and Gamber Johson Dockings station with TNC connector.

Compatible with Dell Latitude 5414, 7214, 5420, 5424, 7424, 7414, and 7212, Getac B300, and Panasonic Toughbook 19, Toughbook 20, Toughbook 33, Toughbook 53, Toughbook 54, Toughbook 31, Toughpad FZ-A2, Toughpad FZ-G1, and Toughpad FZ-M1/B2


Documents


Specifications

SKU RSFDBG4WTTT
Manufacturer Part Number RSF-DB-G4W-TTT
Manufacturer RFMAX
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 698-960 / 1710-2170 / 2300-2700 MHz (3G/4G/LTE Celllular )
Gain 4.5 dBi
Working Frequency 2 2400-2485 / 5150-5875 MHz (WiFI/WLAN)
Gain 2 6.5 dBi
Working Frequency 3 1575.42 MHz (3.3 and/or 5V GPS)
Gain 3 28-30 dBi - Active GPS
Antenna Style "Sharkfin" Multi-Element Antennas
Polarity Linear
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohms
Max Input Power (W) 20
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 3.5
Height/Length (mm) 89
Width (inches) 4.26
Width (mm) 108
Weight (lbs) 0.94
Weight (grams) 470
Operating Temp (celsius) -40 to +85
Mount Style Direct 3/4" hole
Color Black
Connector 1 TNC-Male
Connector 2 TNC-Male
Connector 3 TNC-Male
IP Rating IP65
Vehicular Yes
Product Condition New
