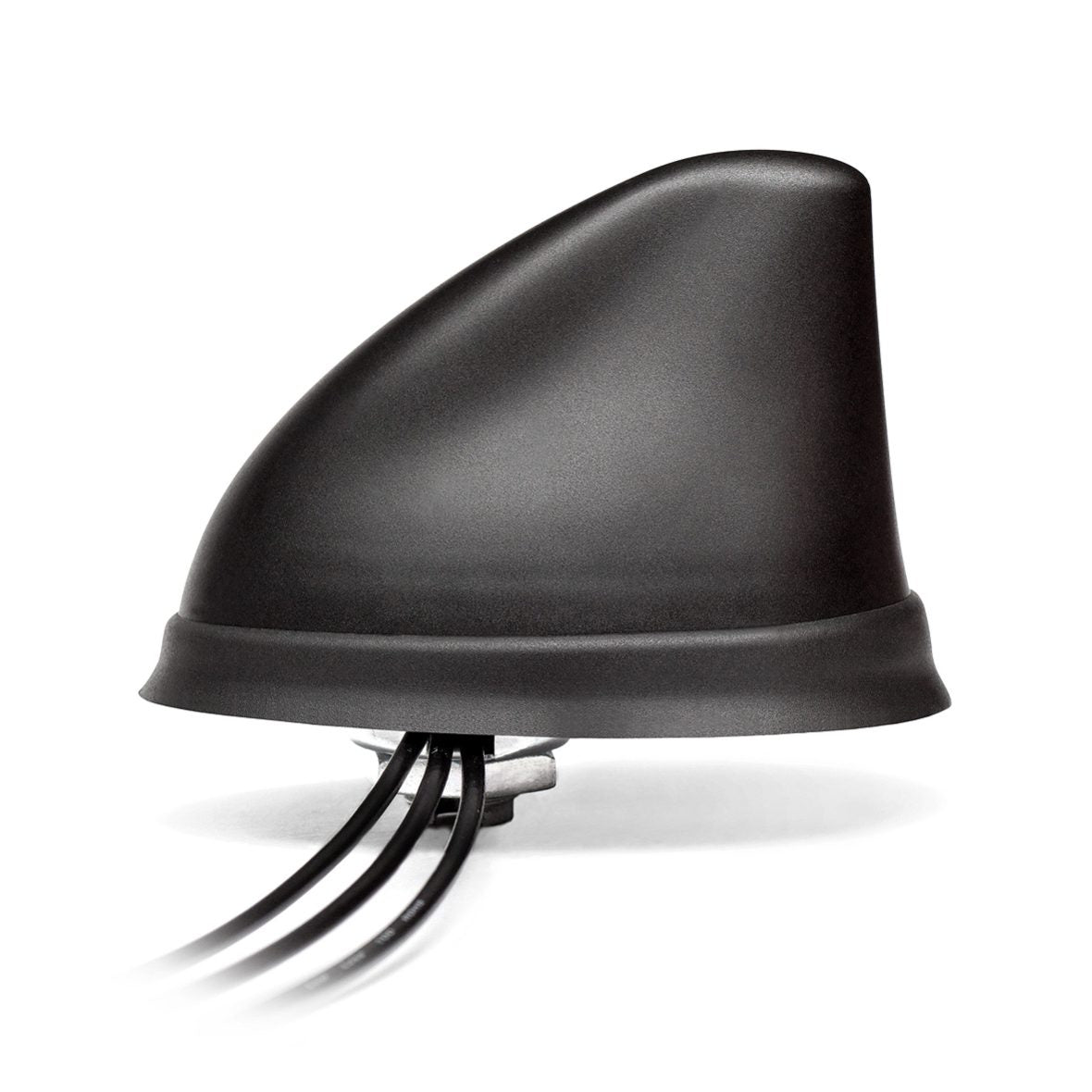

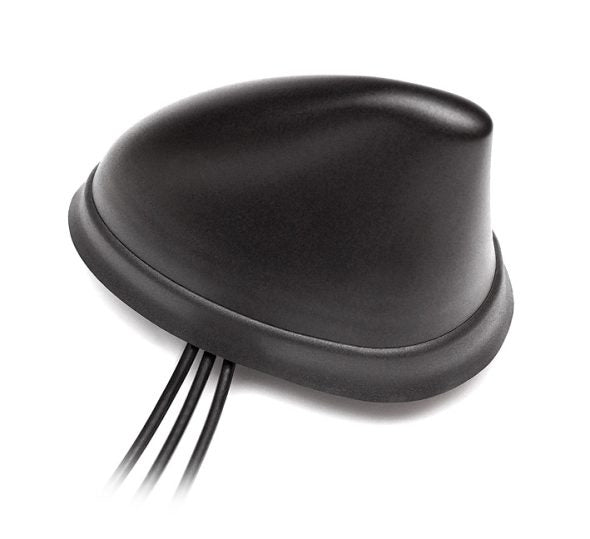

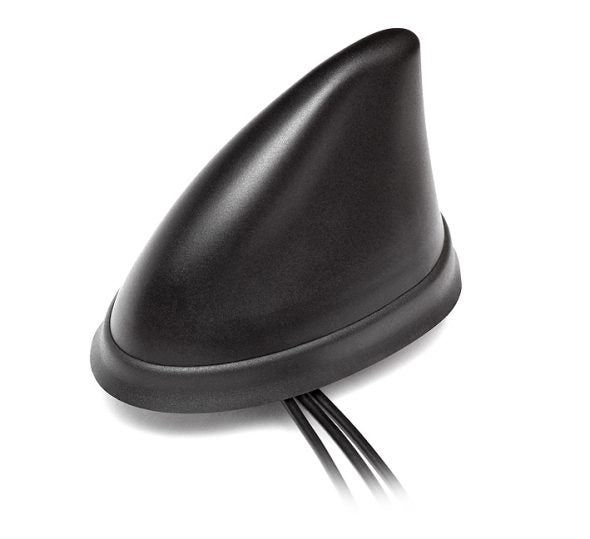

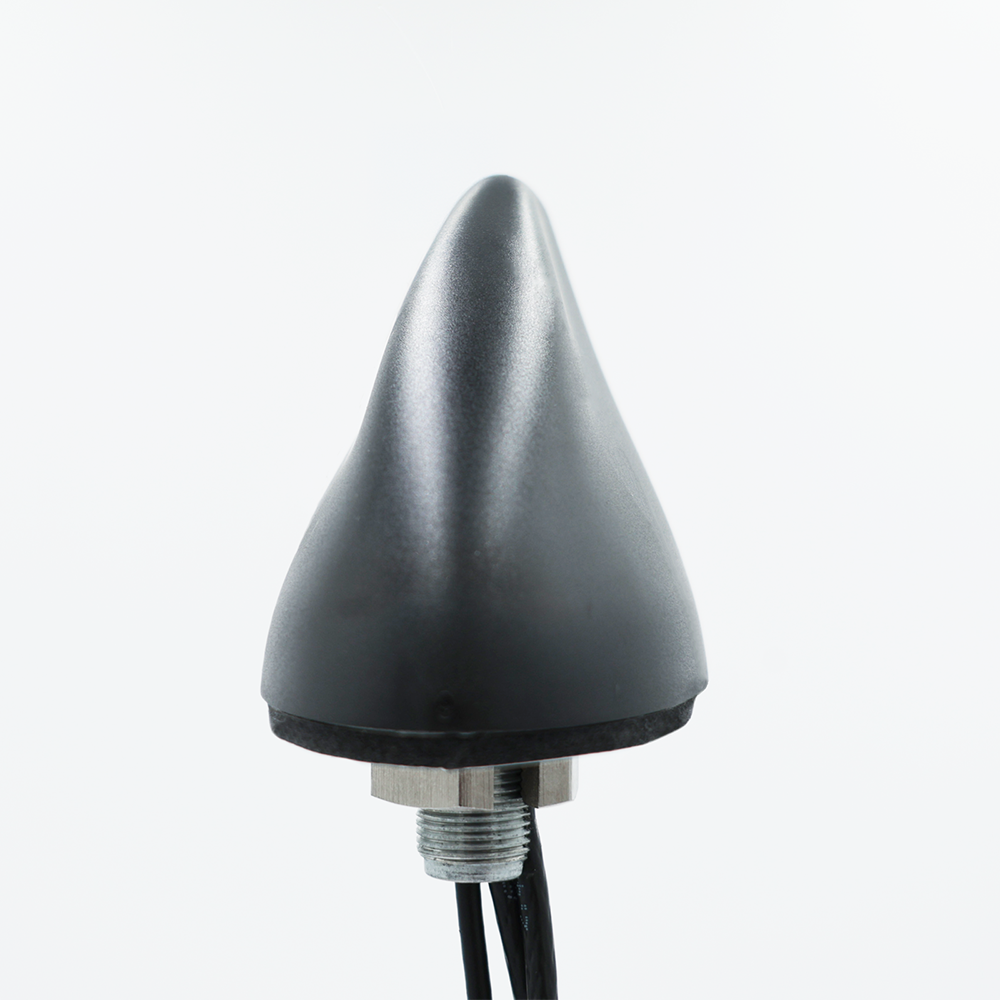

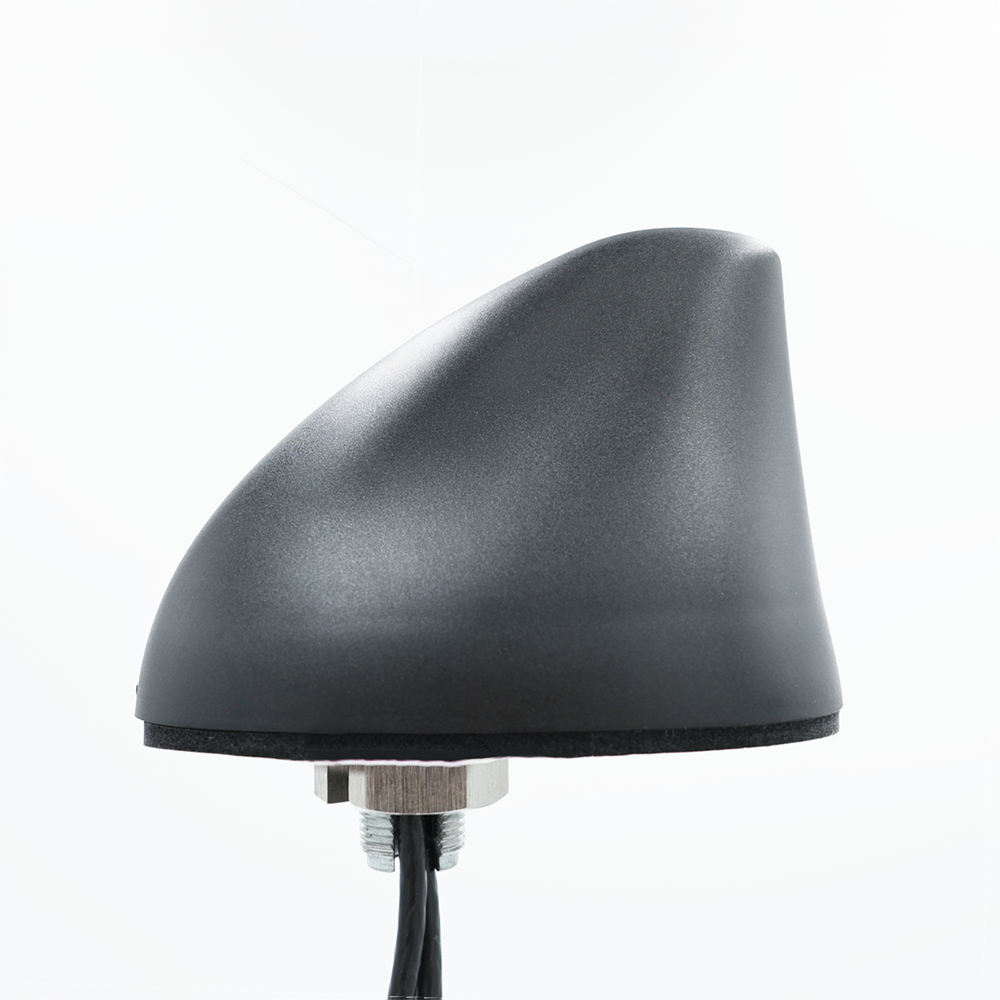

The RFMAX R2SF-DB-G4W-TTT is a black, 3-in-1, roof mounted, SharkFin style antenna for use with the industry leading In-Vehicle modems.  This vehicular multi-band antenna is the best choice when you are looking for high performance at an economical price.  The antenna is ideal for combining 1575 MHz GPS, 698-2700 3G/4G/LTE cellular data communication and 2.4 / 5 GHz WIFI/WLAN in one, small, covert package. The threaded antenna mounting stud and hex nut can accommodate up to a 5/8” (16 mm) thick roof surface. The R2SF-DB-G4W-TTT has 3 cables to optimally support the different technologies: 3G/4G/ LTE data communication is supported on a low-loss cable with SMA-Male connector.  WIFi/ WLAN operates on a separate cable. The 28 dB gain GPS antenna has its own RG-174 cable.

FEATURES:

• Single antenna: 2.5" tall x 2.5" wide x 4" long supports all 3 signals (GPS,Cellular,WIFI)
• Combines 3 high performance elements: GPS + WIFI + 3G/4G/LTE

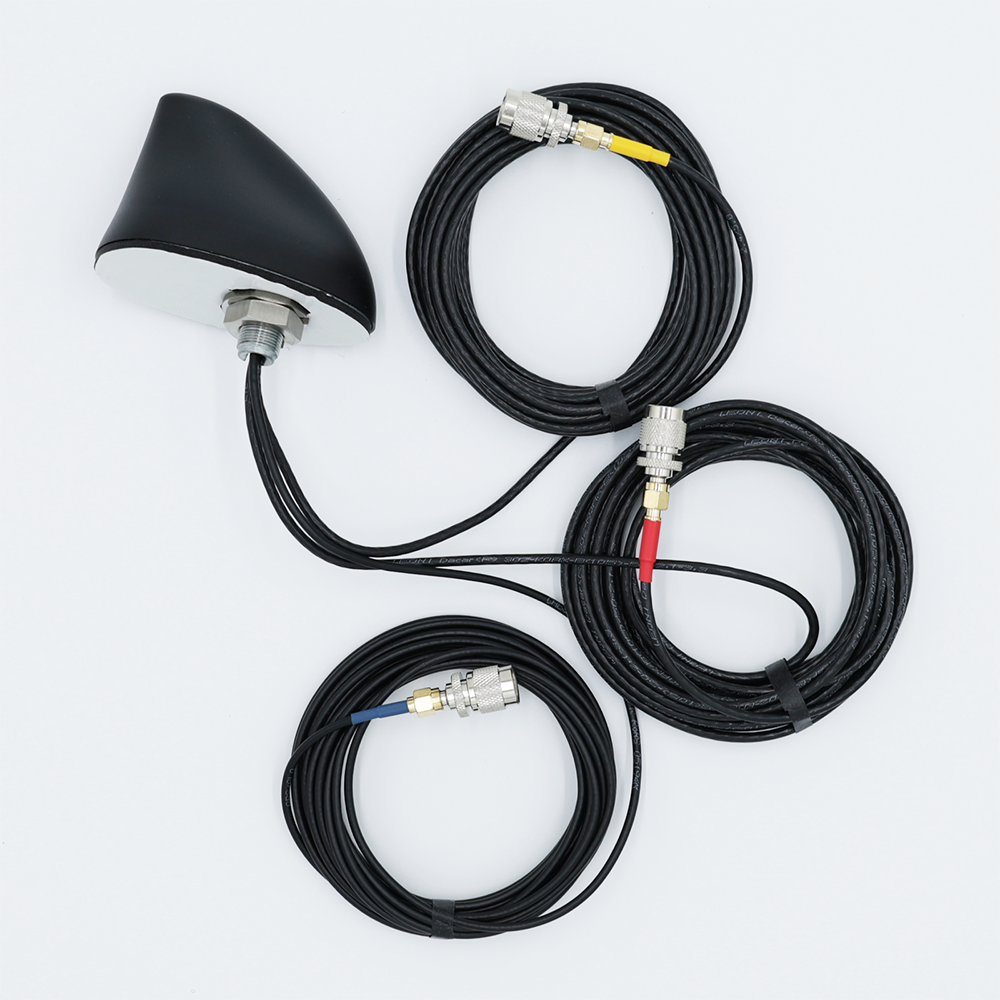

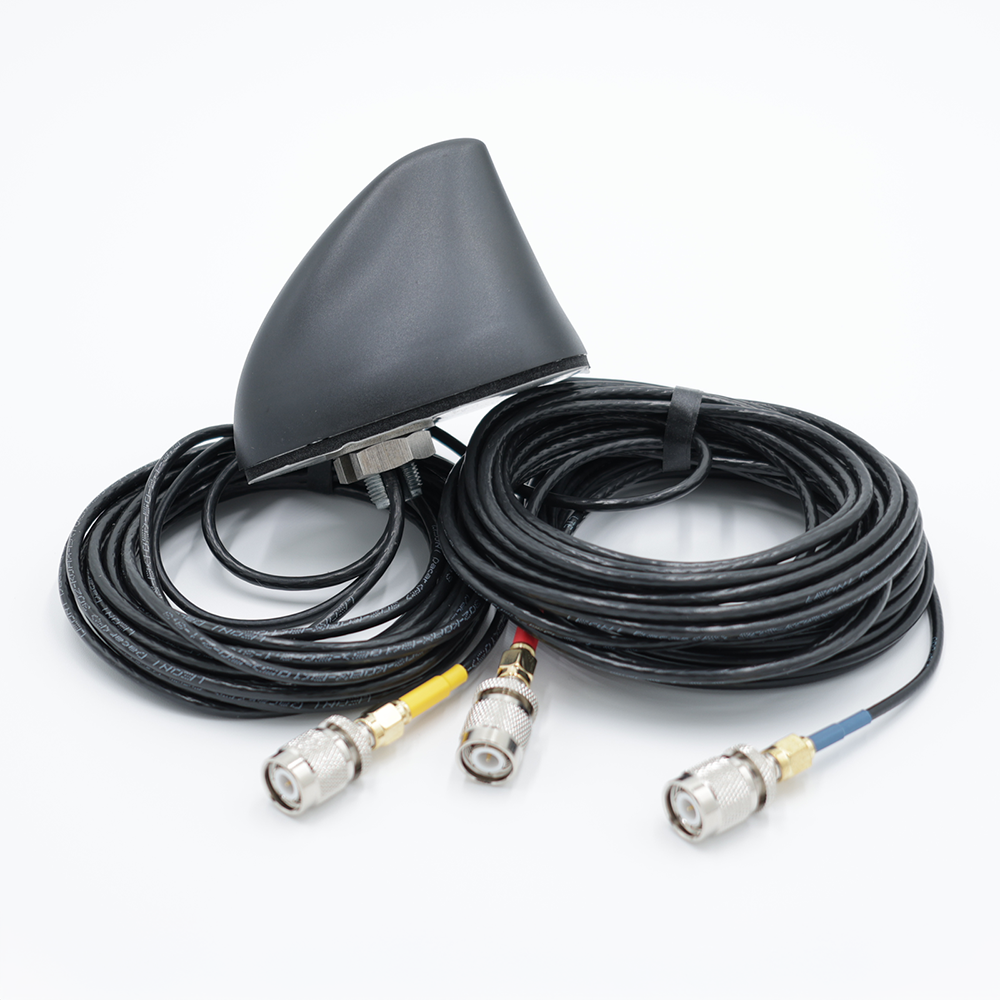

• 3 Separate 17 ft. cables with TNC connectors offer installation flexibility

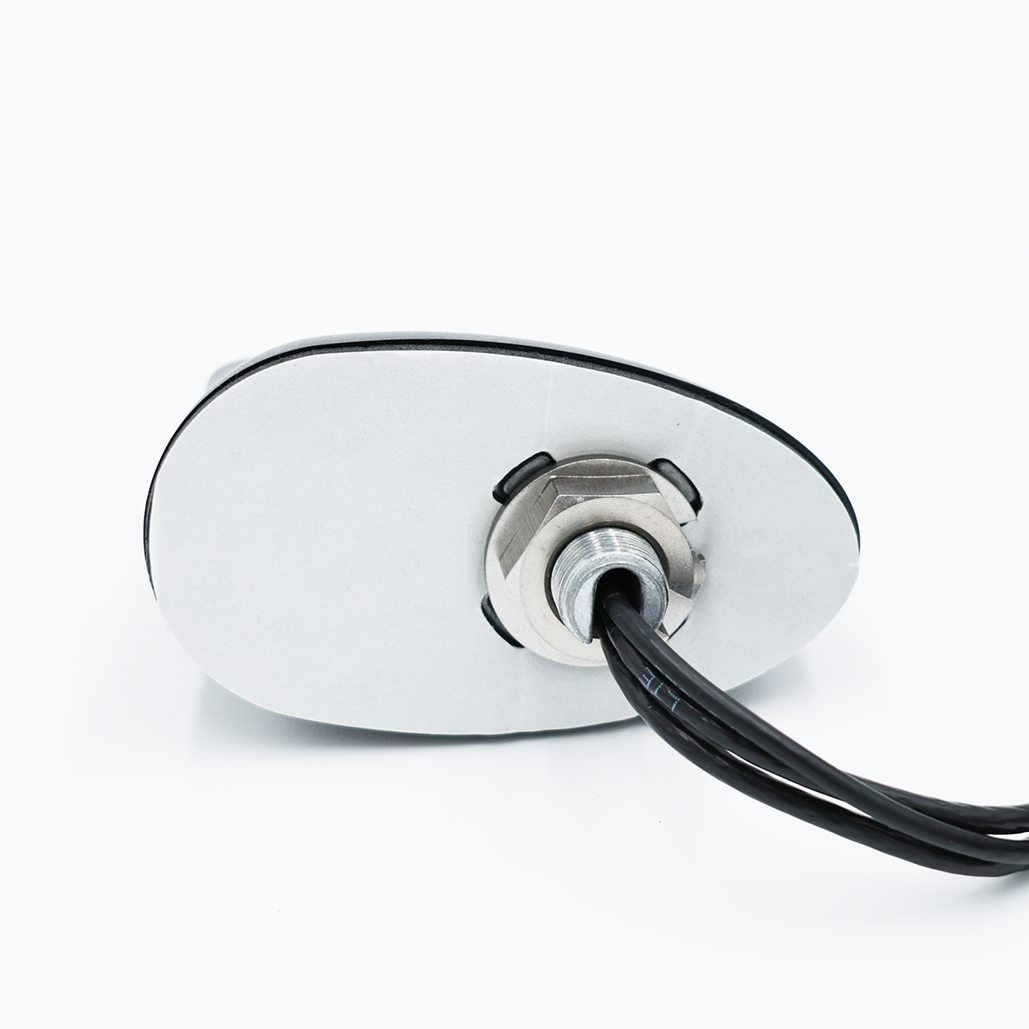

• Easily mounted through a single 3/4” hole
• Optimized for use with Cellular modems and In-Vehicle Routers from Sierra Wireless, Cradlepoint, MultiTech, Microhard

APPLICATIONS:

• Public Safety / Police Vehicles: patrol cars & covert
• Taxi Cabs, Livery Cars, Limosines
• Utility Company Trucks & Vans - Fleeet Management

Compatible with Getac S410, V110, F110, RX10 Tri, and T800 Tri, Handheld ALGIZ 8X and 10X, and XPLORE XSLATE R12.
