10x10 inch RHCP FCC RFID Antenna. Equivalent to IPJ-A-1000-USA | RCPL-902-8-RTM-8-A

$155.82
Unit price per

RCPL-902-8-RTM-8-A

Shipping calculated at checkout.

10x10 inch RHCP FCC RFID Antenna. Equivalent to IPJ-A-1000-USA | RCPL-902-8-RTM-8-A

More Info Specifications Reviews

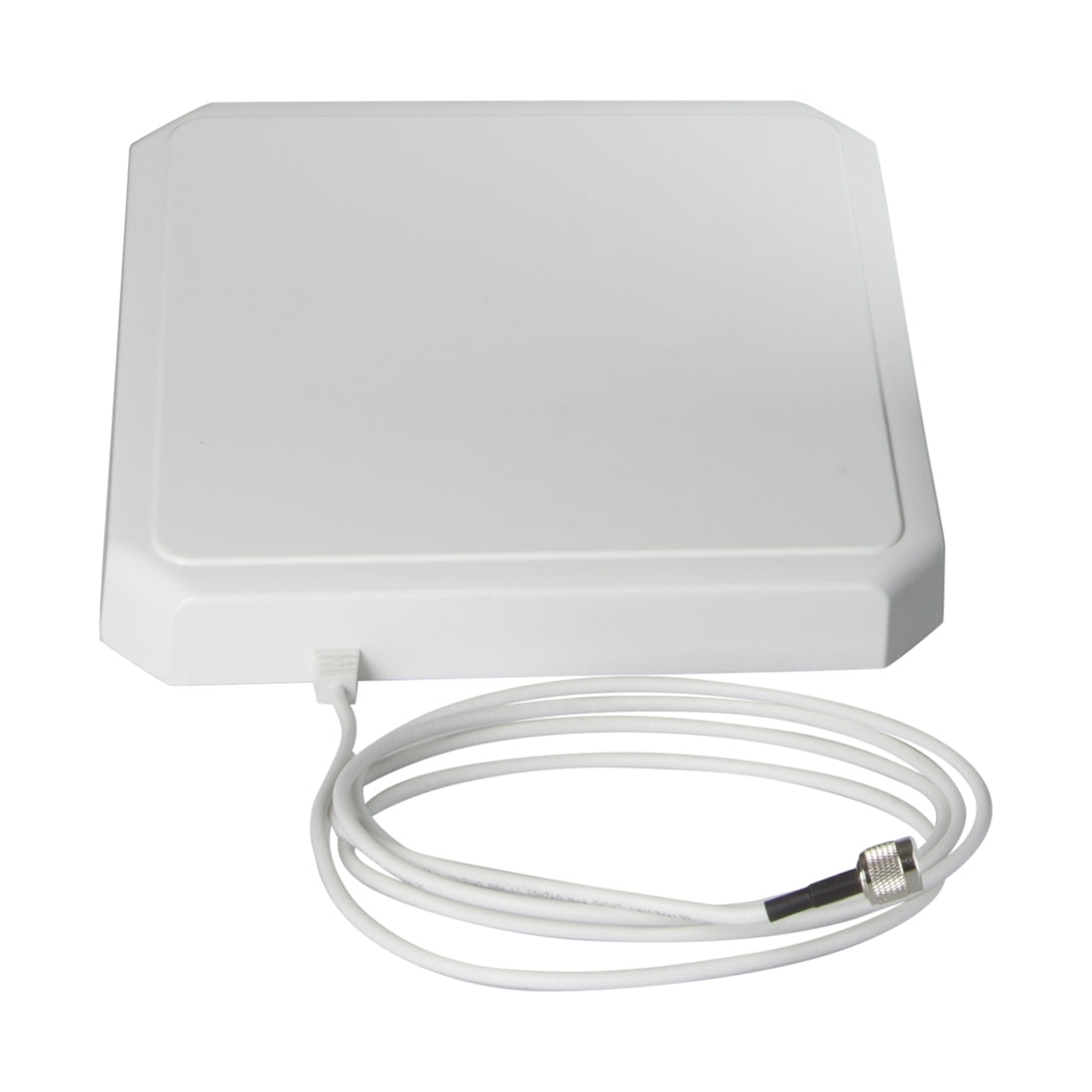

The RFMAX RCPL-902-8-RTM-8-A is the industry standard antenna for passive UHF RFID installations. This unit is a left hand circularly polarized 10x10 inch panel with reception and transmission in the FCC: 902-928 MHz frequency band and operates at 8.5 dBic gain. It is built with a pre-installed 96 inch / 8 foot pigtail and RPTNC-Male connector. Equivalent to: Laird Cushcraft S9028PCLJ96RTN and Impinj IPJ-A1000-USA (LHCP)

*A note about Antenna Polarity:
For most RFID applications, right and left hand polarity antennas may be used interchangeably.

More Information

Specifications

SKU	RCPL9028RTM8A
Manufacturer Part Number	RCPL-902-8-RTM-8-A
Manufacturer	RFMAX
Working Frequency	902-928 MHz
Antenna Category	RFID (865-928 MHz)
Bands	Single
IP Rating	IP54
Polarity	Left Hand Circular
Gain	9
Horizontal/Azimuth Beamwidth	70
Vertical/Elevation Beamwidth	70
Connector Type	Cable - Bottom Entry

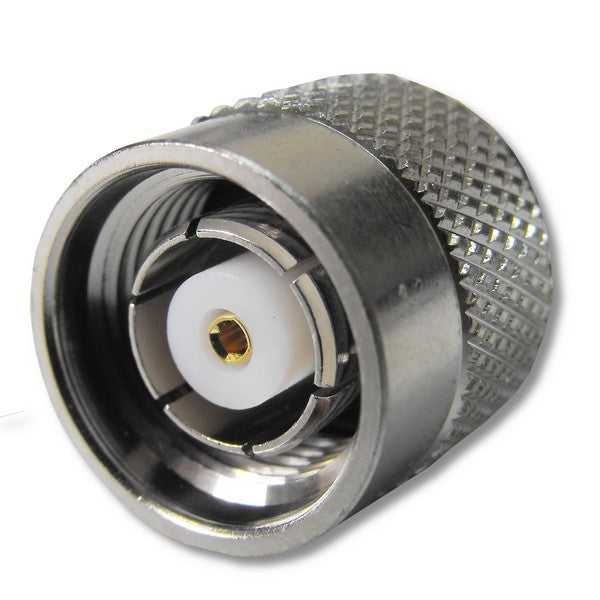

Connector 1	RP TNC-Male
Cable Length (inches)	96
Cable Length (mm)	2438
Height/Length (inches)	10.2
Height/Length (mm)	259
Operating Temp (celsius)	-30 to +70
Thickness/Diameter (inches)	1.32
Thickness/Diameter (mm)	34
Width (inches)	10.2
Width (mm)	259
Weight (lbs)	1.75
Weight (grams)	1130
Material	ABS Housing
Mount Style	(2) 1/4-20 threaded studs at 4.875 inch / 124 mm spacing.
Includes	2 each: flat washers, lock washers & hex nuts
Product Condition	New
