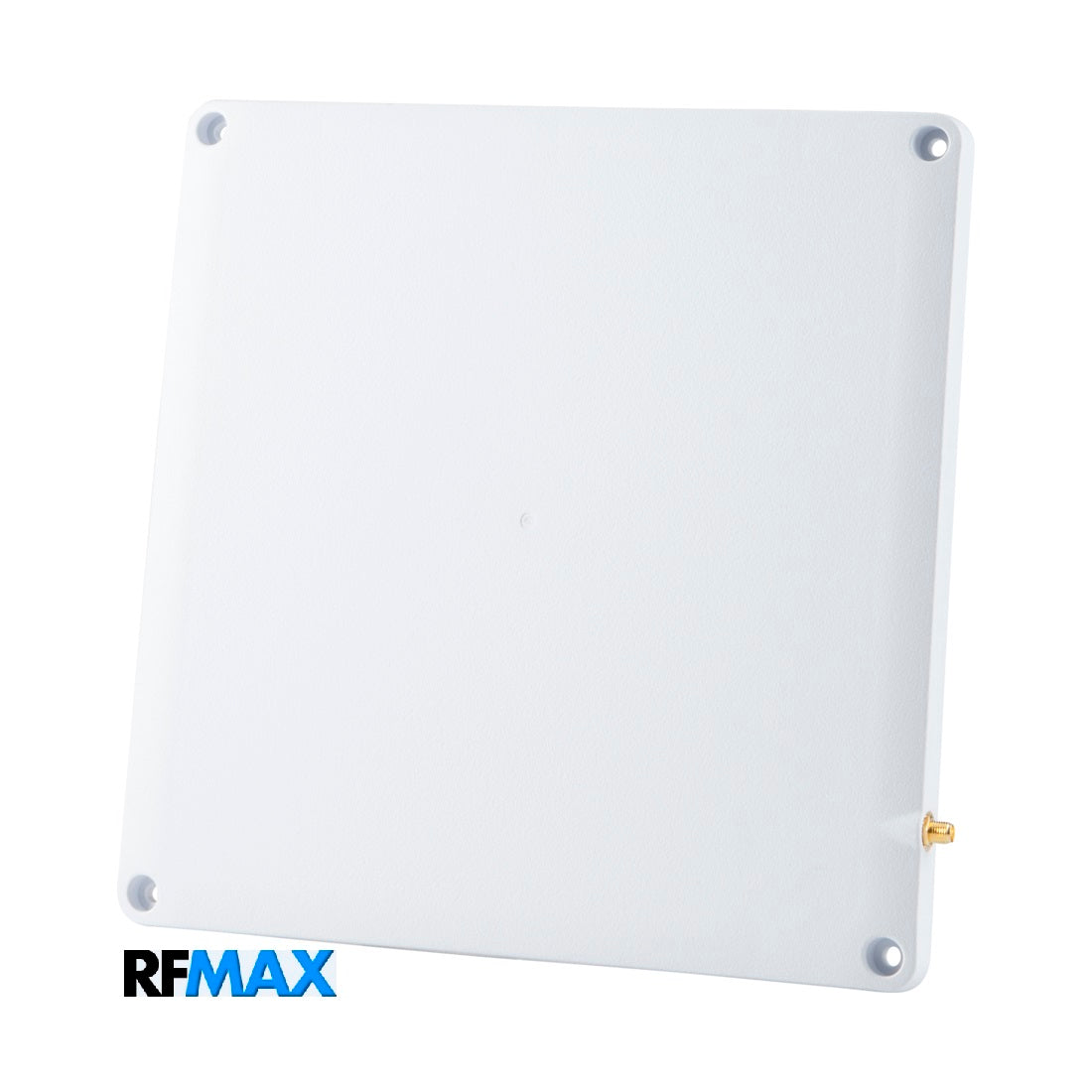

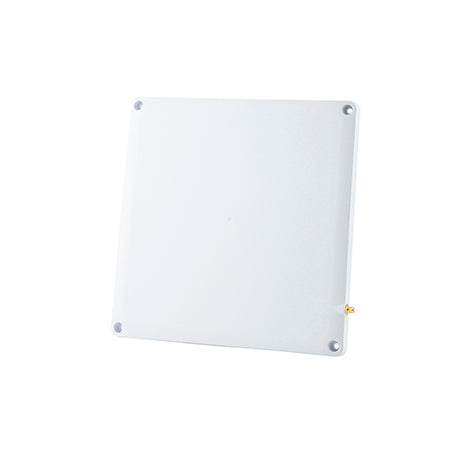

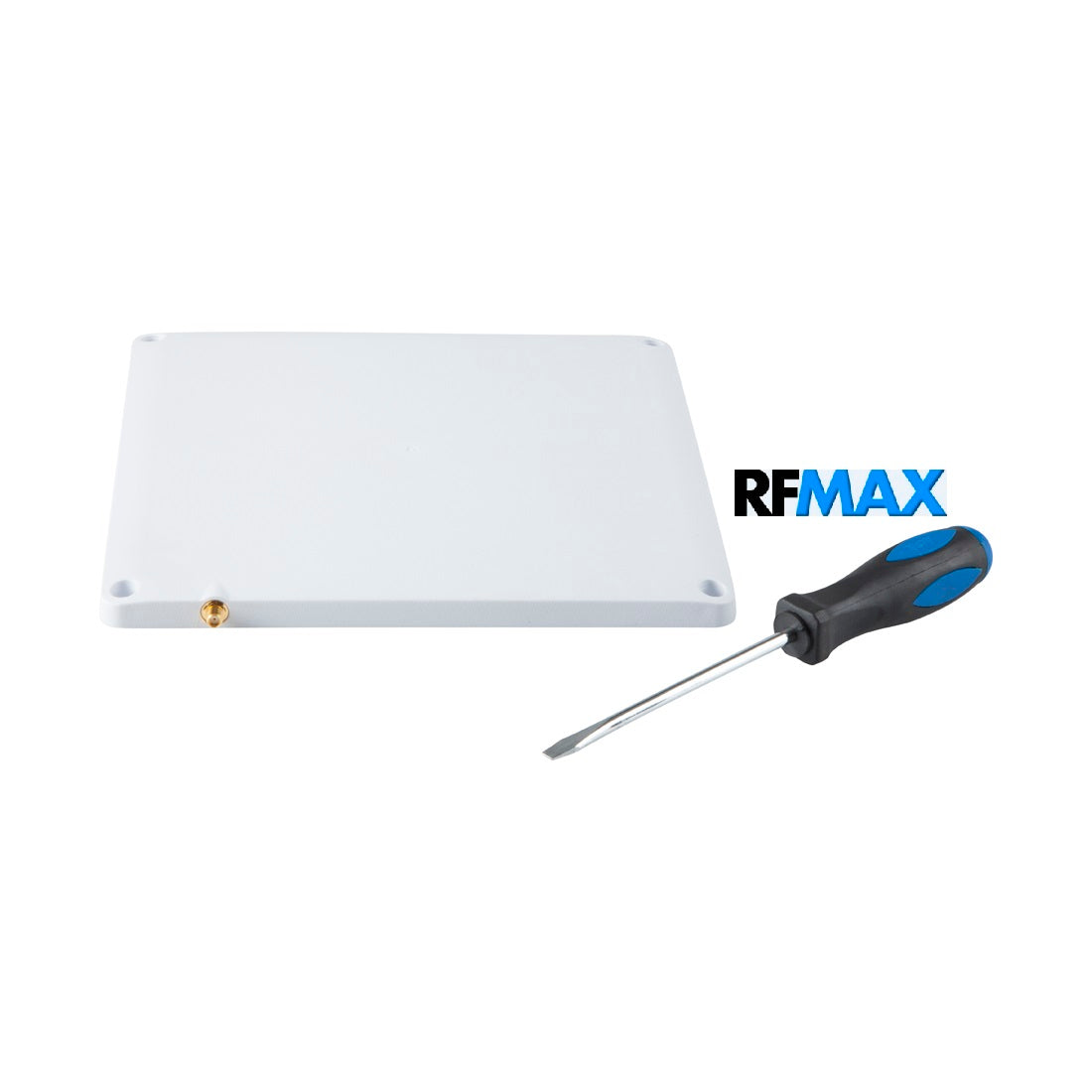

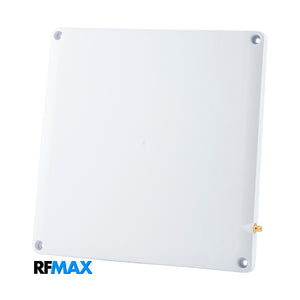

Zebra Equivalent RFID Antenna. AN510-CSCL60003US. Low profile 10x10 Inch with 100mm VESA Mount | R9028-LPV-SSF

  • $163.83
    Unit price per

R9028-LPV-SSF


262 Can ship immediately
Lead time for qty above 262:  Ships in 4-6 Weeks

Shipping calculated at checkout.

Zebra Equivalent RFID Antenna. AN510-CSCL60003US. Low profile 10x10 Inch with 100mm VESA Mount | R9028-LPV-SSF

More InfoDocumentsSpecifications Reviews

  • 100% equivalent to Zebra RFID antenna AN510-CSCL60003US
  • Volume Discounts for RFID System Integrators
  • Circularly Polarized FCC RFID Antenna tuned for 902-928 Mhz.
  • 10x10 inches. 8.5 dBic gain. 68 x 68 degrees beamwidth.
  • IP67 rated for indoor or outdoor use.
  • Tested with Zebra fixed RFID readers FX9600, FX7500, FXR90
  • Tested with Impinj fixed RFID readers R720, R420, R700, R220
  • 100mm Mounting Pattern. Ships with M4 hex nuts & washers


More Information

RFMAX # R9028-LPV-SSF equivalent to Zebra AN510-CSCL60003US. Circularly Polarized FCC RFID Antenna 902-928 Mhz. 10x10 inches. 8.5 dBic gain. 68 x 68 degrees beamwidth. IP67 rated. Zebra FX9600, FX7500, FXR90. Impinj R720, R420, R700, R220. 100mm Mounting Studs. Equivalent to Zebra part# AN510-CSCL60003US

Documents


Specifications

SKU R9028LPVSSF
Manufacturer Part Number R9028-LPV-SSF
Manufacturer RFMAX
Working Frequency 902-928 MHz
Antenna Category RFID (865-928 MHz)
IP Rating 67
Polarity Right Hand Circular
Gain 8.5 dBiC
Horizontal/Azimuth Beamwidth 68
Vertical/Elevation Beamwidth 68
Connector Type Connector - Bottom Entry SMA Female
Connector 1 SMA-Female
Height/Length (inches) 9.85
Height/Length (mm) 250
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 0.55
Thickness/Diameter (mm) 14
Width (inches) 9.85
Width (mm) 250
Weight (lbs) 1.6
Weight (grams) 750
Material UV-Resistant ABS

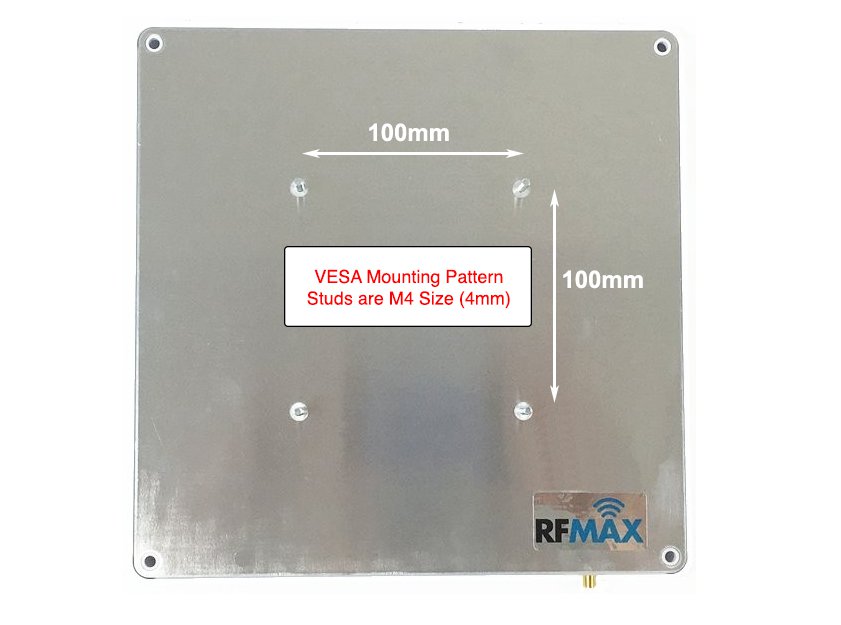

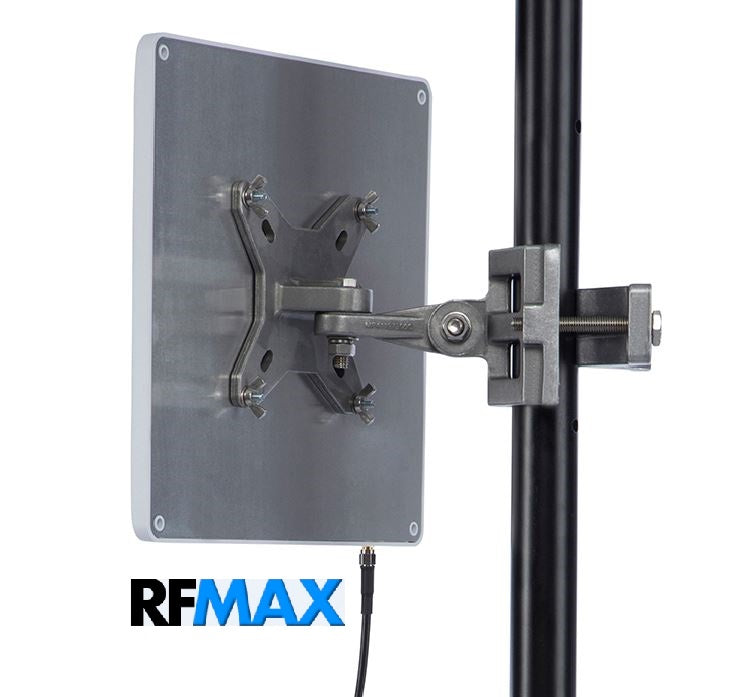

Mount Style Metric M4 studs in 100mm VESA mounting pattern
Includes M4 hex nut, washers and lock washers
Product Condition New
