10x10 inch IP54 LHCP Antenna for FCC RFID Readers: Impinj R700 & Zebra FX7500 | RCPL-902-8-RTM-8
RCPL-902-8-RTM-8
Shipping calculated at checkout.
10x10 inch IP54 LHCP Antenna for FCC RFID Readers: Impinj R700 & Zebra FX7500 | RCPL-902-8-RTM-8

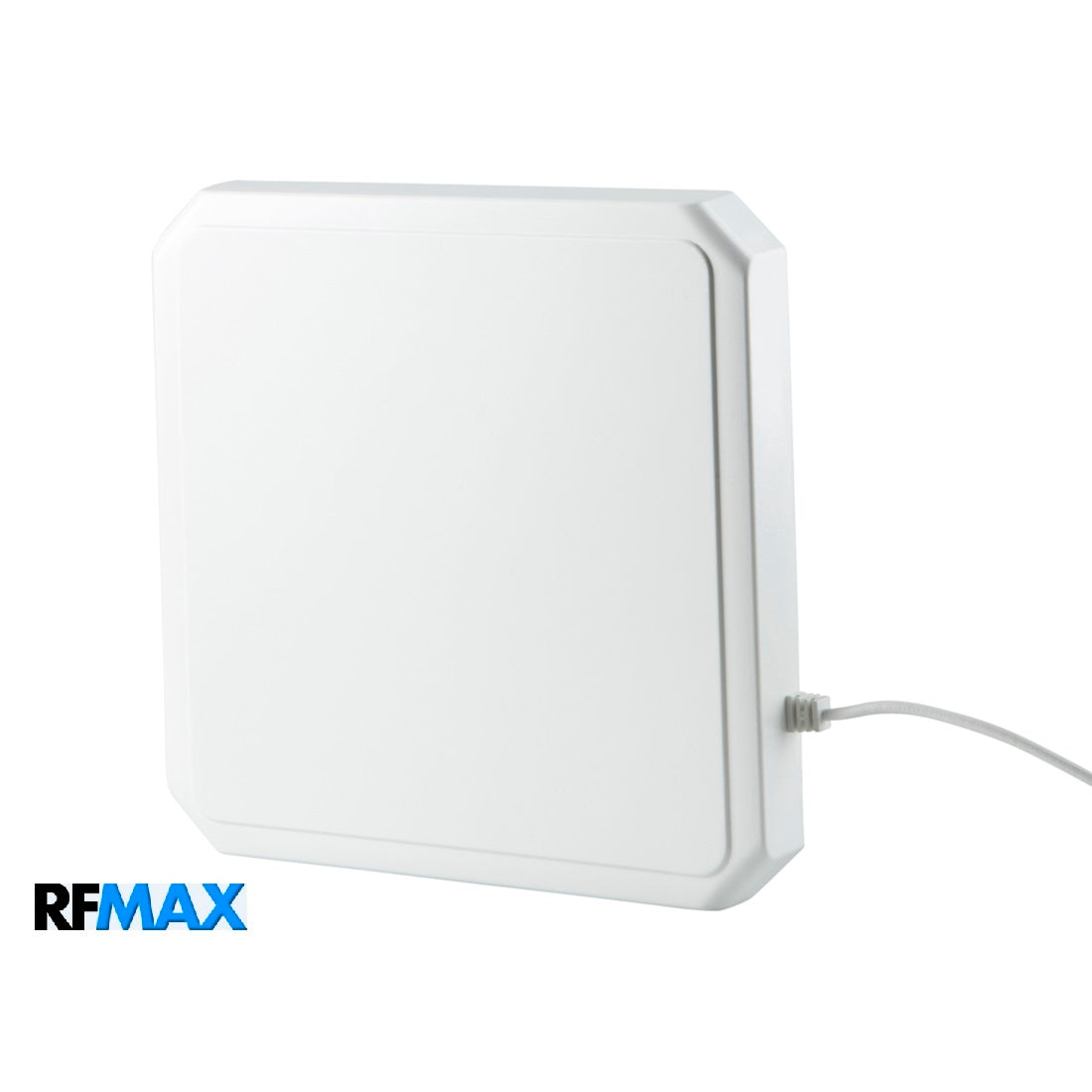

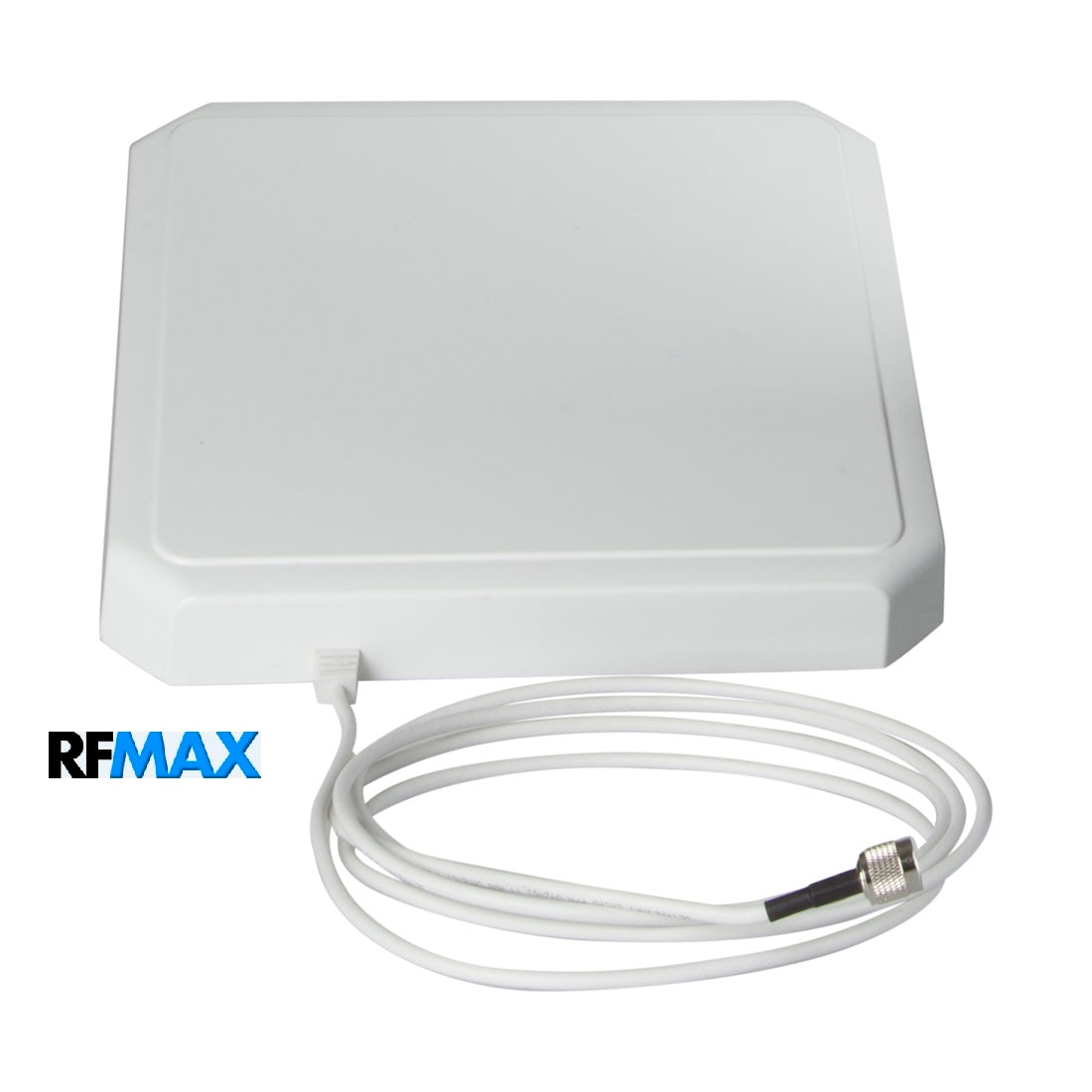

More InfoDocumentsSpecifications ReviewsThe RFMAX RCPL-902-8-RTM-8 is THE industry standard antenna for passive UHF RFID installations. This unit is a circularly polarized 10x10 inch panel with reception and transmission in the FCC: 902-928 MHz frequency band and operates at 8.5 dBic gain. It is built with a pre-installed 96 inch / 8 foot pigtail and RPTNC-Male connector. This is the antenna of choice for use with Impinj Speedway Revolution R700 & R220, as well as Motorola Zebra FX7500, FX7400 & FX9500.
Note: this is the ONLY antenna series that is certified to the US Navy's HERO standards for use on military projects (Hazards of Electromagnetic Radiation to Ordnance-MIL-STD-464A)
More Information
We Also Recommend
PT195-012-RTF-RTM
LMR195 Type equivalent Cable - RPTNC-Female to RPTNC-Male - 12 Foot
$39.46
$39.46
View Details
PT195-024-RTF-RTM
LMR195 Type equivalent Cable - RPTNC-Female to RPTNC-Male - 24 Foot
$51.75
$51.75
View Details
R9028-LPV-SSF
Zebra Equivalent RFID Antenna. AN510-CSCL60003US. Low profile 10x10 Inch with 100mm VESA Mount | R9028-LPV-SSF
$180.21
$180.21
View Details
RFMAXMAPPER
Handheld 865-928 MHz RFID Antenna Power Field Mapper for FCC & ETSI
$437.64
$437.64
View Details
Specifications
| SKU | RCPL9028RTM8 |
|---|---|
| Manufacturer Part Number | RCPL-902-8-RTM-8 |
| Manufacturer | RFMAX |
| Working Frequency | 902-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| IP Rating | IP54 |
| Polarity | Left Hand Circular |
| Gain | 8.5 |
| Horizontal/Azimuth Beamwidth | 70 |
| Vertical/Elevation Beamwidth | 70 |
| Connector Type | Cable - Bottom Entry |

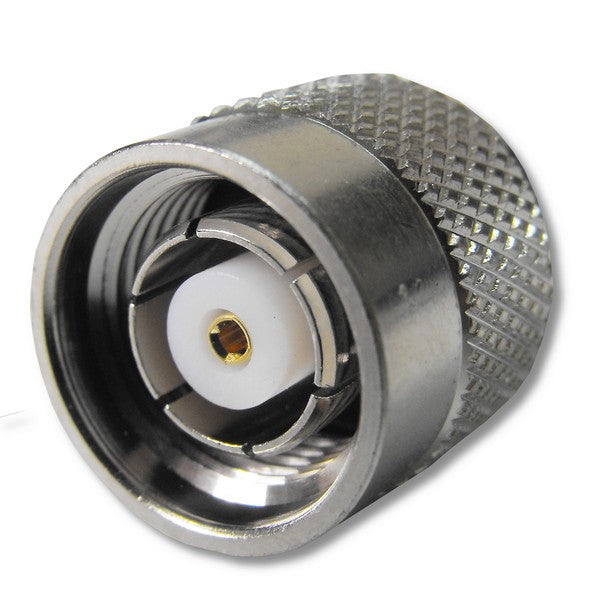

| Connector 1 | RP TNC-Male |
| Cable Length (inches) | 96 |
| Cable Length (mm) | 2438 |
| Height/Length (inches) | 10.2 |
| Height/Length (mm) | 259 |
| Operating Temp (celsius) | -30 to +70 |
| Thickness/Diameter (inches) | 1.32 |
| Thickness/Diameter (mm) | 34 |
| Width (inches) | 10.2 |
| Width (mm) | 259 |
| Weight (lbs) | 1.75 |
| Weight (grams) | 1130 |
| Material | ABS Housing |

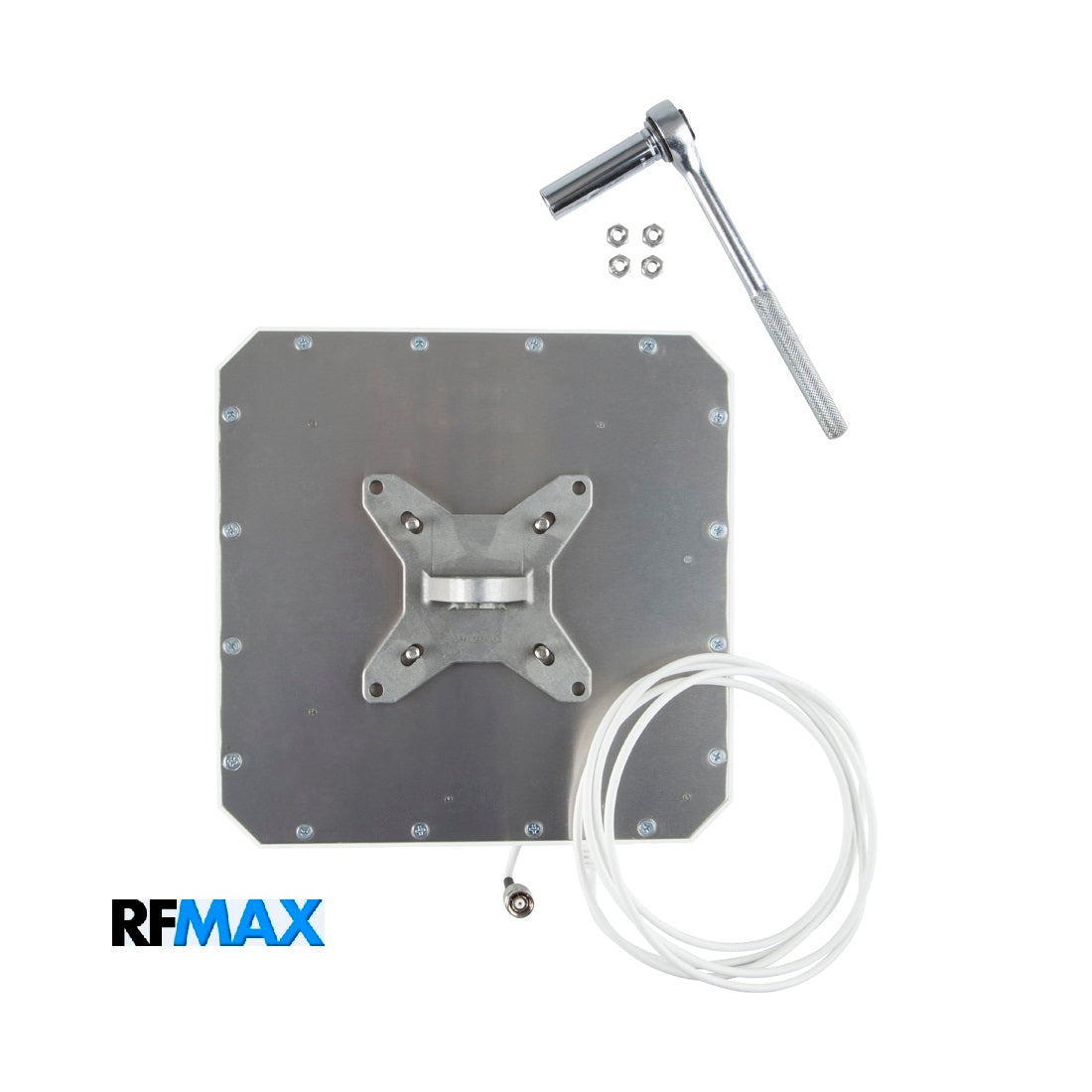

| Mount Style | (4) 1/4-20 Threaded Studs at 63.5 mm / 2.5 inch spacing |
| Includes | 4 each: flat washers, lock washers & hex nuts |
| Product Condition | New |
