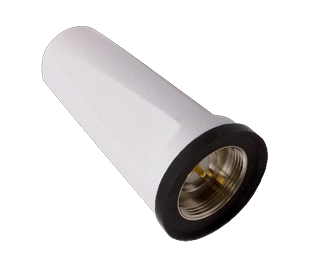

White NMO shot-glass Antenna For P25 (700/800 Mhz) 900 Mhz, 4G/5G Cellular or WiFi. RSGW-600/71-3-NMO
RSGW-600/71-3-NMO
Shipping calculated at checkout.
White NMO shot-glass Antenna For P25 (700/800 Mhz) 900 Mhz, 4G/5G Cellular or WiFi. RSGW-600/71-3-NMO
More InfoDocumentsSpecifications ReviewsThe RFMAX # RSGW-600/71-3-NMO is a WHITE shot-glass style NMO antenna that is tested and approved for use on the following frequency bands:
- P25 Public Safety Band: 700/800 Mhz
- ISM - Industrial Communication: 800/900 Mhz
- FirstNet, 3G/4G/LTE & 5G Cellular: 600-6000 MHz
- WiFi / WLAN: 2.4-5.9 GHz
- IP67 Outdoor Rated with Omni-directional radiation pattern
- Average peak gain: 617-960 MHz 2dBi, 695-5925 MHz 5.5dBi
- Average power rating 45W
- Size Dia. 1.61” (40.9mm) Height 3.77” (95.9mm)
- White Radome
More Information
Applications
- P25 Public Safety (700/800 Mhz) VSWR <2.3:1
- ISM Industrial Comm (800/900 Mhz) VSWR <2.3:1
- First Net & Cellular (600-6000 Mhz) VSWR 600-900: <2.3:1 & 1800-2700: <1.8:8
- WiFi (2.4-5.9 Ghz) VSWR <1.8:8
Documents
We Also Recommend
RNMOT-195-SSM-C-17I
High frequency Thru hole NMO, 17 ft LMR195 cable, SMA Male connector Installed, ¾ hole, Chrome | RNMOT-195-SSM-C-17I
$23.00
$23.00
View Details
RNMOM-195-SSM-B-12I-ST
Heavy Duty Magnetic NMO Mount for high vibration conditions, 12 Ft of 195 Cable with SMA Male Connector Installed, with PULL TAB and Strain Relief | RNMOM-195-SSM-B-12I-ST
$85.00
$85.00
$72.00
$72.00
View Details
Specifications
| SKU | RSGW600713NMO |
|---|---|
| Manufacturer Part Number | RSGW-600/71-3-NMO |
| Manufacturer | RFMAX |
| Antenna Category | 5G/4G (600-7125 MHz) |
| Antenna Style | Low Profile Antenna |
| Polarity | Vertical |
| Max Input Power (W) | 45 Watts |
| Weight (lbs) | 0.17 Lbs |
| Weight (grams) | 76 grams |
| Operating Temp (celsius) | -40° to +85° C |
| Color | White |
| Connector 1 | NMO |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Product Condition | New |
