TRABT1420 | Phantom Omni Antenna- 142-160 MHz - NMO - Ground Plane Reqd VHF Low Profile Antenna Black
More InfoDocumentsSpecifications ReviewsNote: Field tuning is REQUIRED for this antenna, see tuning guide below.

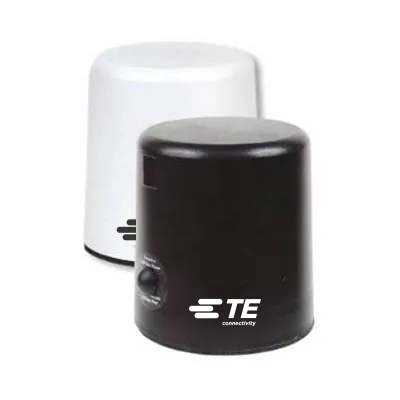

This unit is a Black 'Phantom' style / Stealth VHF Omni-directional antenna with NMO-mobile mount operating at 142-160 MHz range. This antenna offers a powerful punch with up to 3 dBi of gain. Please note that this model REQUIRES mounting on metallic ground plane for best performance. The Phantom series offers ultra-rugged ABS construction which is virtually indestructible, and has a proven track record for holding up in the field for many years in any conditions. Cable kits and mounting hardware for this antenna can be purchased separately. (DO NOT use NMO mag-mounts with pull-tab, the antenna is too large)
*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.
More Information
Documents
We Also Recommend
Specifications
| SKU | TRABT1420 |
|---|---|
| Manufacturer Part Number | TRABT1420 |
| Manufacturer | Laird |
| Antenna Category | VHF (132-220 MHz) |
| Working Frequency | 142-160 MHz |
| Gain | Unity |
| Antenna Style | Low Profile Antenna |
| Polarity | Dual Polarity |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohms |
| Max Input Power (W) | 60 Watts |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 3.3 Inches |
| Height/Length (mm) | 83.8 mm |
| Width (inches) | 3.25 |
| Width (mm) | 82.6 |
| Weight (lbs) | 0.35 |
| Weight (grams) | 159.1 |
| Operating Temp (celsius) | (-40 C) to 85 C |
| Mount Style | NMO-mobile mount |
| Color | Black |
| Connector Type | Connector - Bottom |
| Connector 1 | NMO |
| Includes | O-Ring |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | Yes |
| Product Condition | New |
