Shotglass Omni Antenna For For ISM: 900 MHz, 902-928 MHz, Helium, Terrestrial Trunked Radio, TETRA, LORA, LORA LAN, SCADA, 33 cm. NMO Mount IP67, RSGB-MB7K-3-NMO

RSGB-MB7K-3-NMO
+ -
454 Can ship immediately
Lead time for qty above 454:  Ships in 10-12 Weeks
Shipping calculated at checkout.

Shotglass Omni Antenna For For ISM: 900 MHz, 902-928 MHz, Helium, Terrestrial Trunked Radio, TETRA, LORA, LORA LAN, SCADA, 33 cm. NMO Mount IP67, RSGB-MB7K-3-NMO

More InfoDocumentsSpecifications Reviews

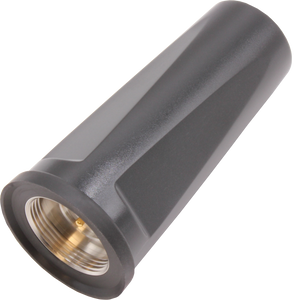

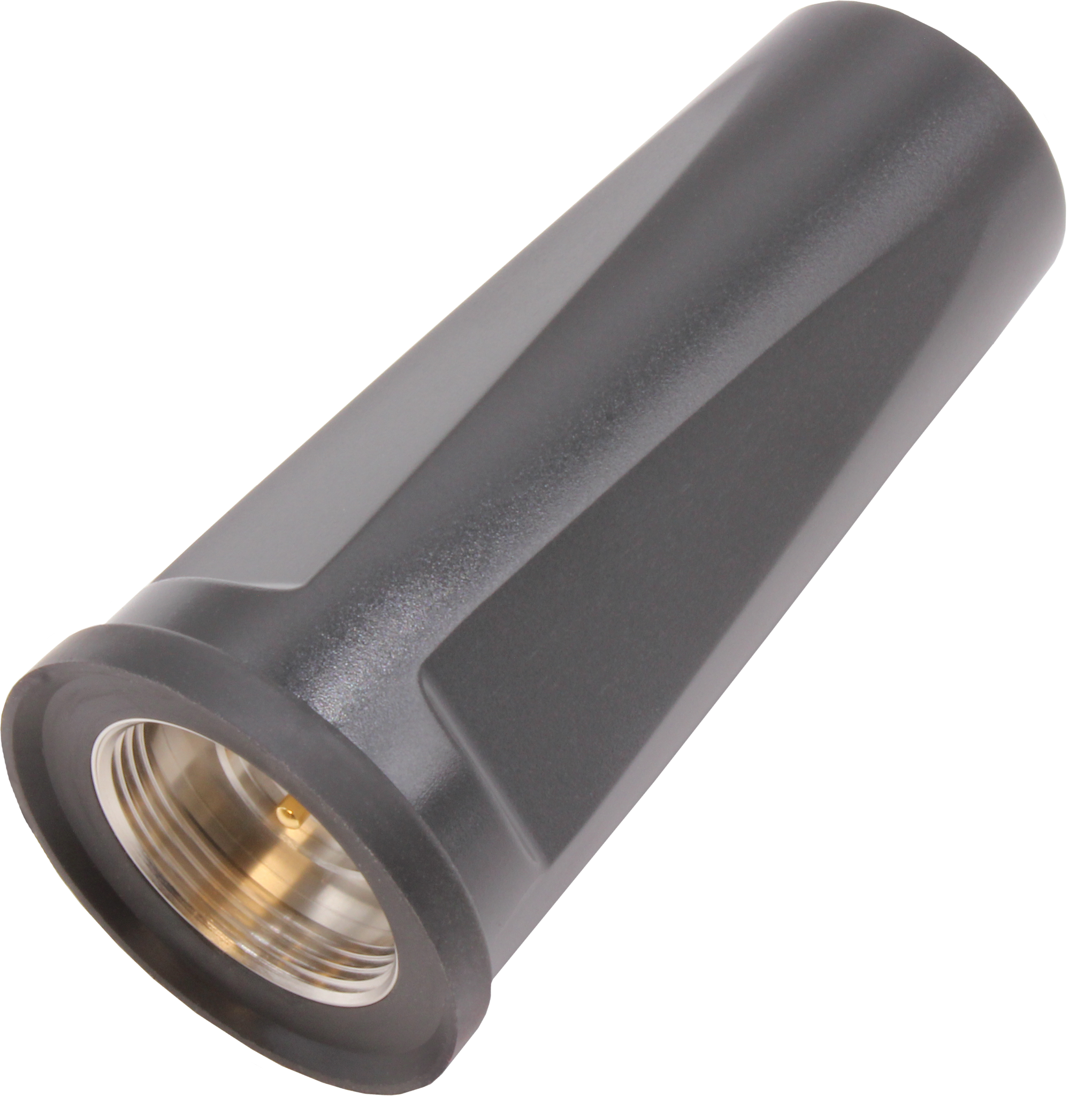

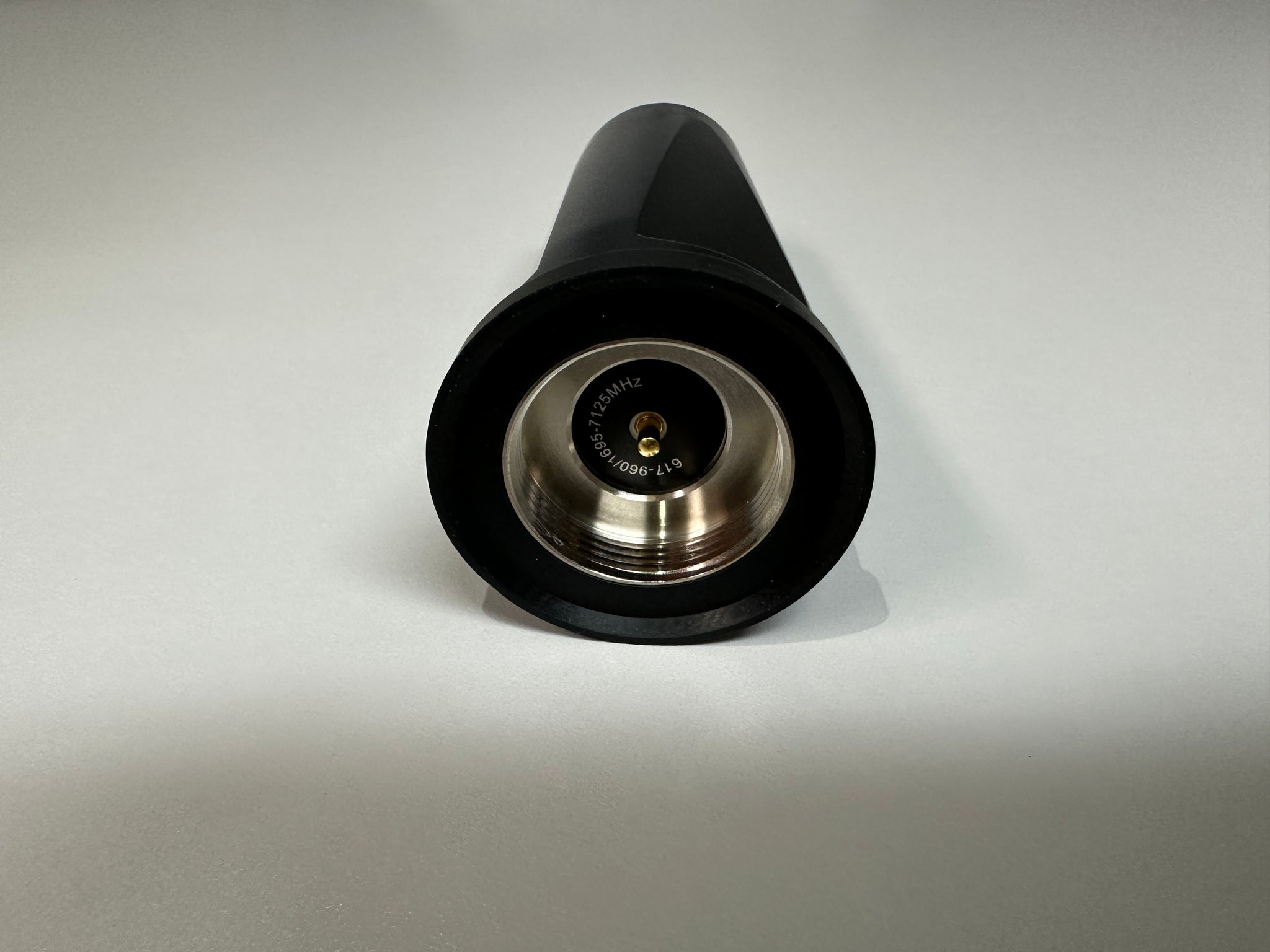

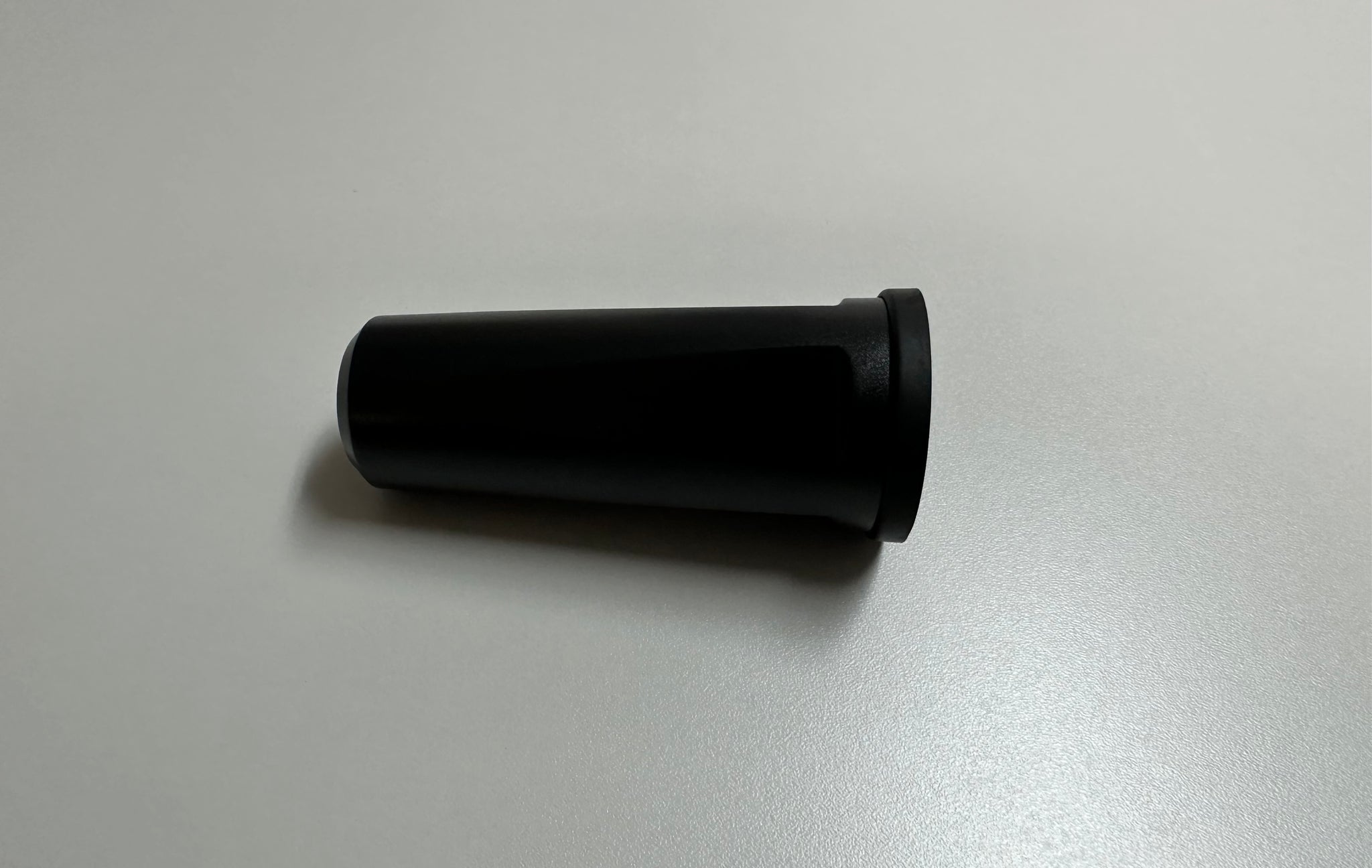

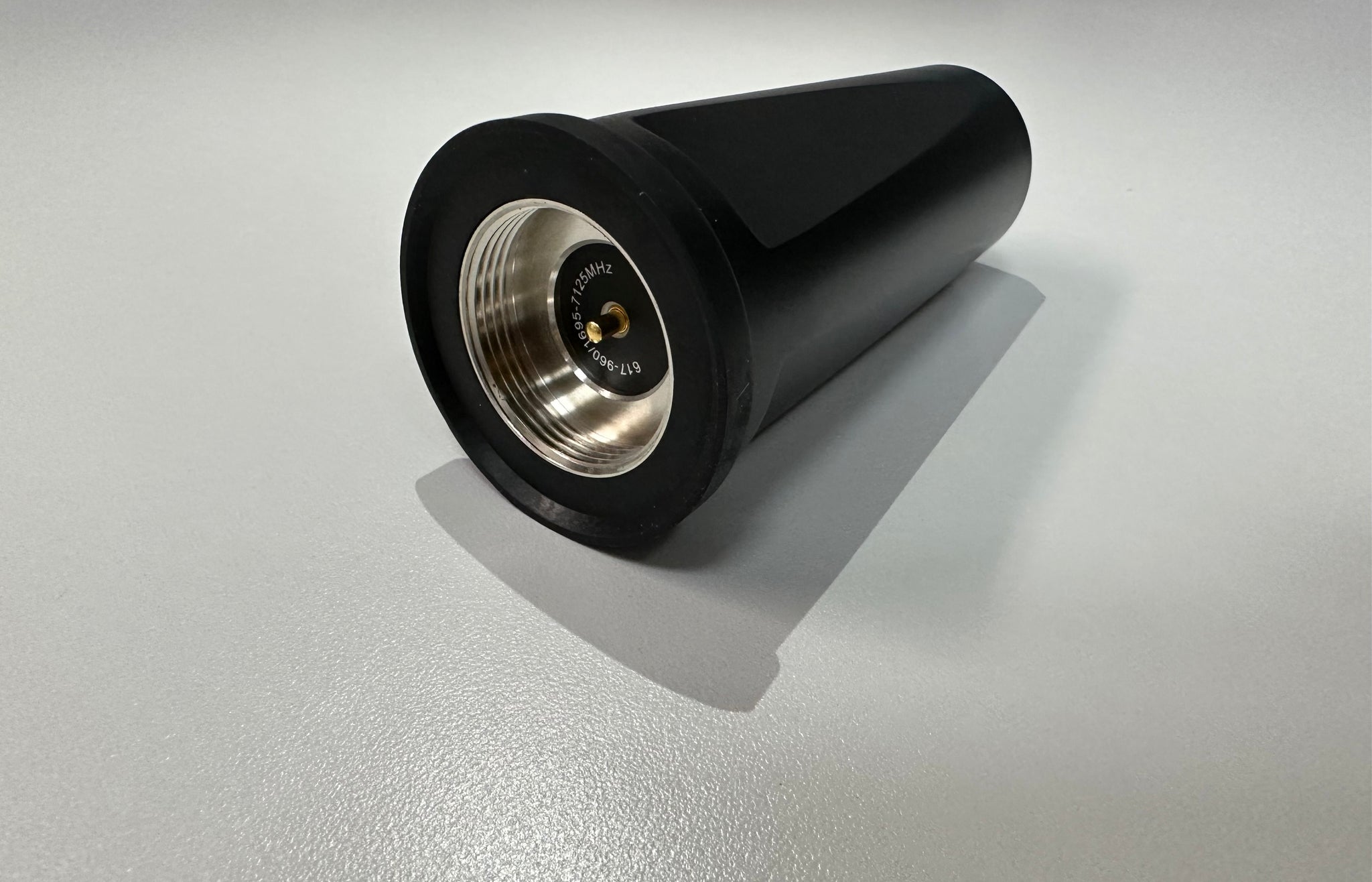

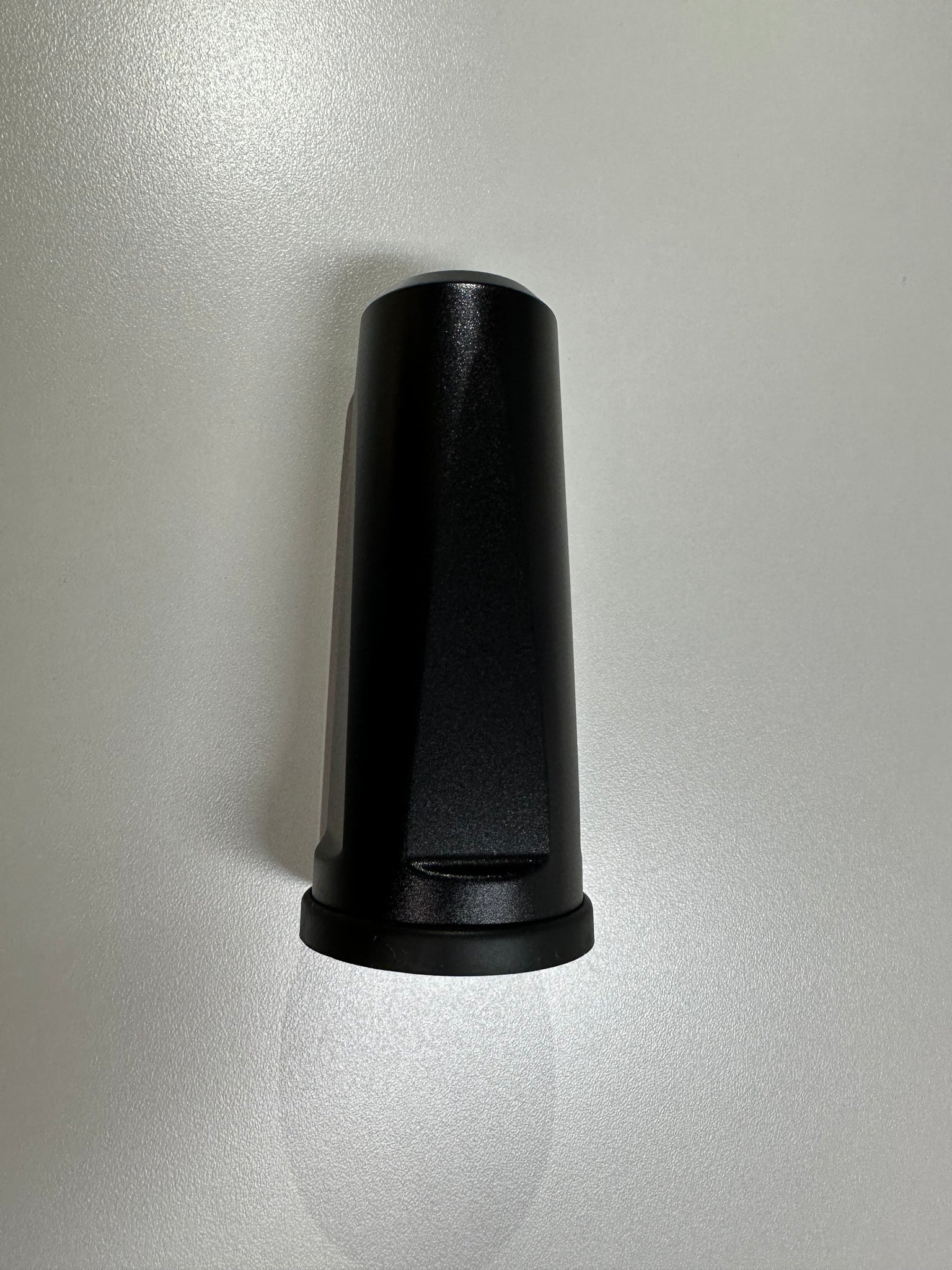

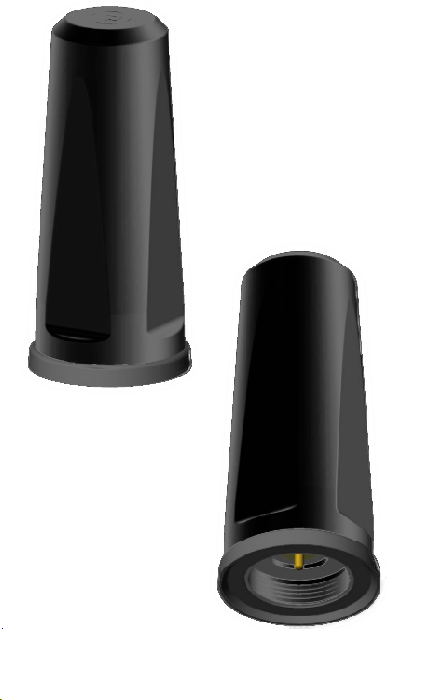

Shotglass Omni Antenna For ISM: 900 MHz, 902-928 MHz, Helium, Terrestrial Trunked Radio, TETRA, LORA, LORA LAN, SCADA, 33 cm. NMO Mount IP67.

  • 902-928 MHz
  • Omni radiation pattern
  • Average power rating 45W
  • Size Dia. 1.61” (40.9mm) Height 3.77” (95.9mm)

More Information

Applications

  • Utility boxes
  • Smart metering
  • IoT Devices

Documents

RSGB 900 MHz Datasheet

We Also Recommend

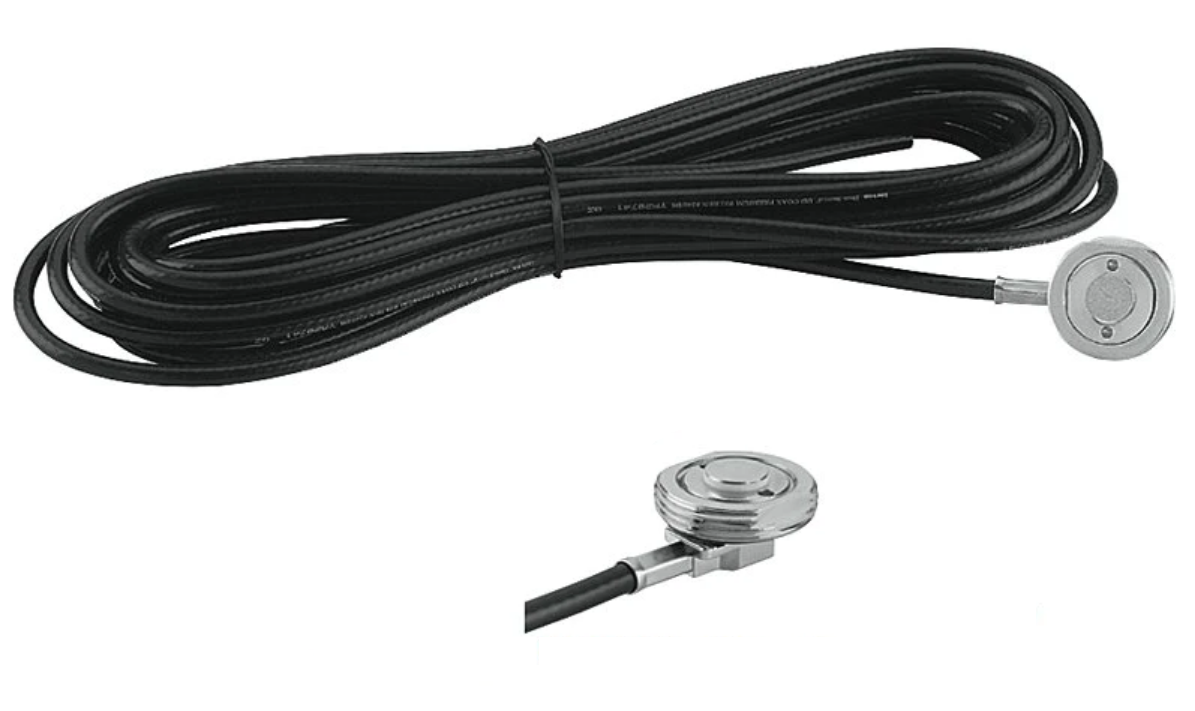

High frequency Thru hole NMO, 17 ft LMR195 cable, SMA Male connector Installed, ¾ hole, Chrome | RNMOT-195-SSM-C-17I
RNMOT-195-SSM-C-17I
High frequency Thru hole NMO, 17 ft LMR195 cable, SMA Male connector Installed, ¾ hole, Chrome | RNMOT-195-SSM-C-17I
View Details
High frequency Thru hole NMO, 17 ft LMR195 cable, TNC Male connector Installed, ¾ hole, Chrome | RNMOT-195-STM-C-17I
In Stock
RNMOT-195-STM-C-17I
High frequency Thru hole NMO, 17 ft LMR195 cable, TNC Male connector Installed, ¾ hole, Chrome | RNMOT-195-STM-C-17I
View Details
Heavy Duty NMO Mag Mount with TNC, Rubber Boot, Pull Tab, Strain Relief, 12 ft Low Loss Cable
In Stock
RNMOM-195-STM-B-12I-ST
Heavy Duty NMO Mag Mount with TNC, Rubber Boot, Pull Tab, Strain Relief, 12 ft Low Loss Cable

View Details

Specifications

SKU RSGBMB7K3NMO
Manufacturer Part Number RSGB-MB7K-3-NMO
Manufacturer RFMAX
Antenna Category 900 MHz
Antenna Style Low Profile Antenna
Polarity Vertical
Max Input Power (W) 45 Watts
Weight (lbs) 0.17 Lbs
Weight (grams) 76 grams
Operating Temp (celsius) -40° to +85° C
Color Black
Connector 1 NMO
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Product Condition New
