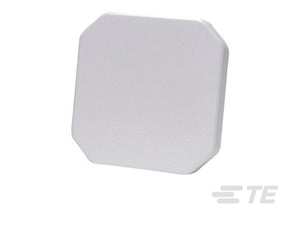

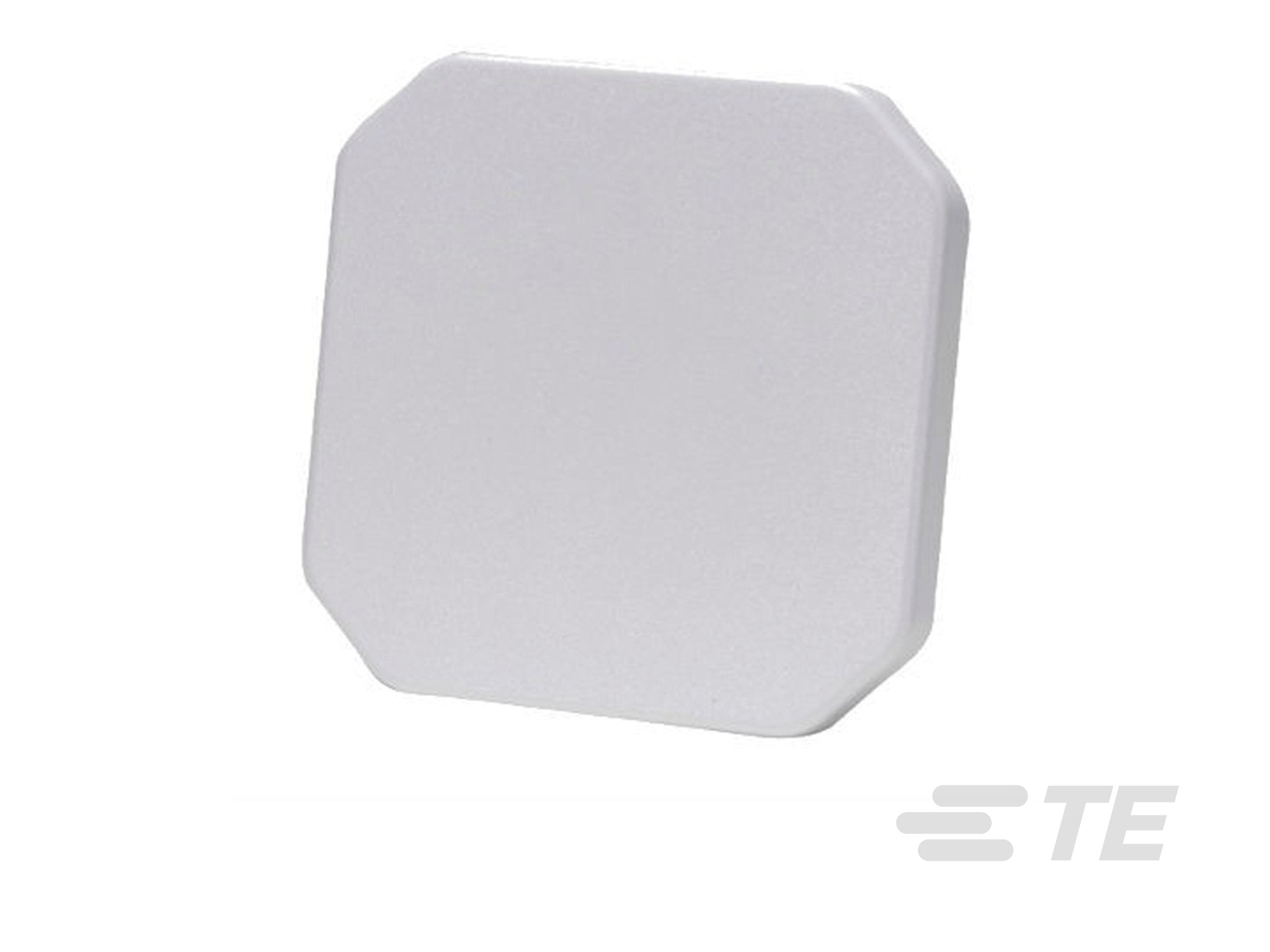

S9025PRRASMAF 5x5 inch RHCP IP-67 Ultra Rugged RFID Antenna - Right Angle SMA
S9025PRRASMAF
Shipping calculated at checkout.
S9025PRRASMAF 5x5 inch RHCP IP-67 Ultra Rugged RFID Antenna - Right Angle SMA
More InfoSpecifications ReviewsThe S9025P is a ultra-rugged IP67 rated Right Hand Circularly Polarized RFID Antenna. This antenna operates in the FCC 902-928 Mhz range and offers 5 dBic gain. Size is 5 x 5 inches with Fixed Right Angle SMA-Female Connector.
*A note about Antenna Polarity:
For most RFID applications, right and left hand polarity antennas may be used interchangeably.
More Information
Specifications
| SKU | S9025PRRASMAF |
|---|---|
| Manufacturer Part Number | S9025PRRASMAF |
| Manufacturer | Laird |
| Working Frequency | 902-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| IP Rating | 67 |
| Polarity | Right Hand Circular |
| Gain | 5.5 |
| Horizontal/Azimuth Beamwidth | 100 |
| Vertical/Elevation Beamwidth | 100 |
| Connector Type | Connector - Rear |
| Connector 1 | SMA-Female Right Angle |
| Height/Length (inches) | 5.2 |
| Height/Length (mm) | 133 |
| Operating Temp (celsius) | -30 to +70 |
| Thickness/Diameter (inches) | 0.71 |
| Thickness/Diameter (mm) | 18 |
| Width (inches) | 5.2 |
| Width (mm) | 133 |
| Weight (lbs) | 0.8 |
| Weight (grams) | 370 |
| Material | ABS Housing |
| Mount Style | 2 Stud |
| Includes | washers and hex nuts |
| Product Condition | New |
