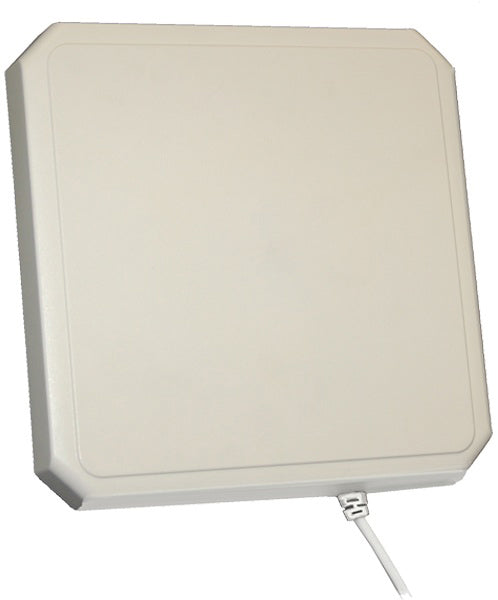

S8658PL96RTN: 10x10 inch IP-54 Rated Left Hand Circularly Polarized RFID Antenna with 96 inch Pigtail RPTNC-M - ETSI
S8658PL96RTN
Shipping calculated at checkout.
S8658PL96RTN: 10x10 inch IP-54 Rated Left Hand Circularly Polarized RFID Antenna with 96 inch Pigtail RPTNC-M - ETSI
More InfoSpecifications ReviewsThe S8658PL96RTN is the industry standard antenna for passive UHF RFID installations. This unit is a circularly polarized 10x10 inch panel with reception and transmission in the ETSI: 865-868 MHz frequency band and operates at 8.5 dBic gain. It is built with a pre-installed 96 inch / 8 foot pigtail and RPTNC-Male connector. Equivalent to: Motorola Zebra AN480 and Impinj IPJ-A1000-EU1, IPJ-A1001-EU1.
*A note about Antenna Polarity:
For most RFID applications, right and left hand polarity antennas may be used interchangeably.
*This item is subject to a 4 Piece MOQ*
More Information
Specifications
| SKU | S8658PL96RTN |
|---|---|
| Manufacturer Part Number | S8658PL96RTN |
| Manufacturer | Laird |
| Working Frequency | 865-868 MHz |
| Antenna Category | RFID (865-928 MHz) |
| IP Rating | 54 |
| Polarity | Left Hand Circular |
| Gain | 8.5 |
| Horizontal/Azimuth Beamwidth | 70 |
| Vertical/Elevation Beamwidth | 70 |
| Connector Type | Cable - Bottom Entry |
| Connector 1 | RP TNC-Male |
| Cable Length (inches) | 96 |
| Cable Length (mm) | 2438 |
| Height/Length (inches) | 10.2 |
| Height/Length (mm) | 259 |
| Operating Temp (celsius) | -30 to +70 |
| Thickness/Diameter (inches) | 1.32 |
| Thickness/Diameter (mm) | 34 |
| Width (inches) | 10.2 |
| Width (mm) | 259 |
| Weight (lbs) | 1.75 |
| Weight (grams) | 1130 |
| Material | ABS Housing |
| Mount Style | (4) 1/4-20 Threaded Studs at 63.5 mm / 2.5 inch spacing |
| Includes | 4 each: flat washers, lock washers & hex nuts |
| Product Condition | New |
