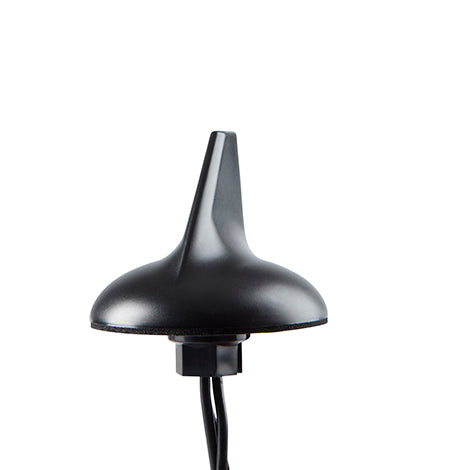

3-in-1 Roof Mount Sharkfin Antenna For Cradlepoint & Sierra Wireless In-Vehicle Routers. GPS+Cellular+WiFi, 5ft Cables | RSF-DB-G4W-5-SSS

  • $145.00
    Unit price per

RSF-DB-G4W-5-SSS


+ -
0 in stock. Subject to factory lead time
Lead time:  Ships in 8-10 Weeks

Shipping calculated at checkout.

3-in-1 Roof Mount Sharkfin Antenna For Cradlepoint & Sierra Wireless In-Vehicle Routers. GPS+Cellular+WiFi, 5ft Cables | RSF-DB-G4W-5-SSS

More InfoDocumentsSpecifications Reviews

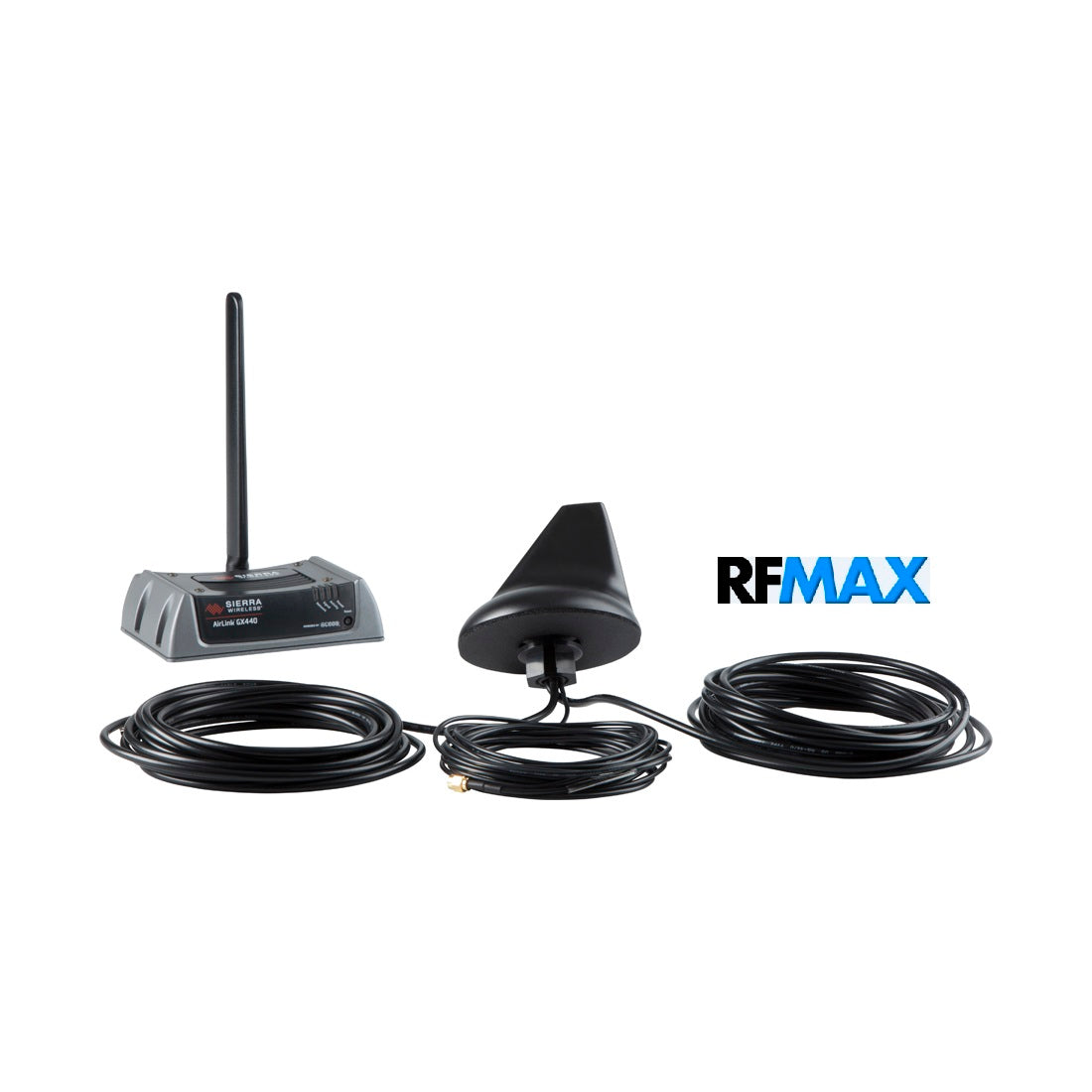

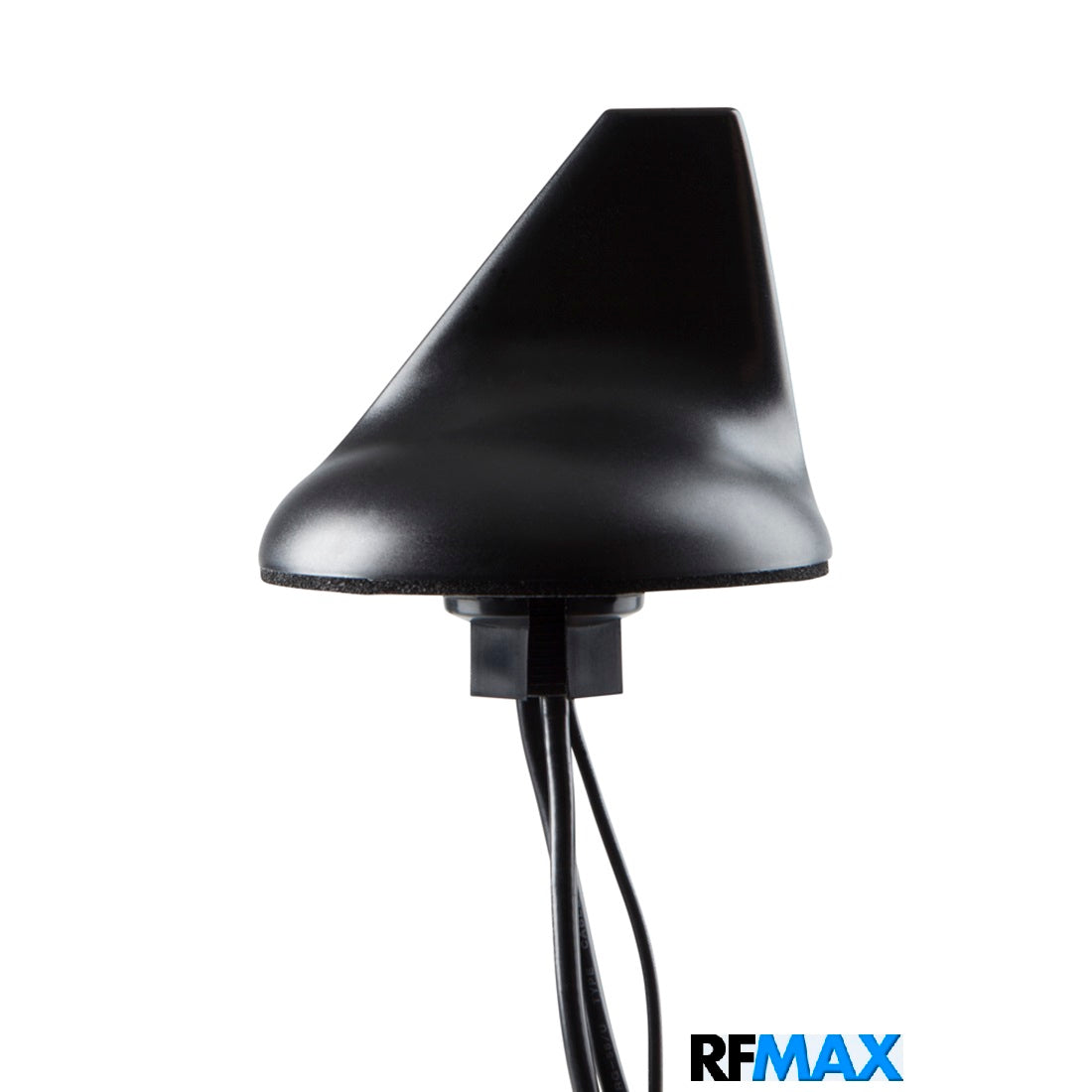

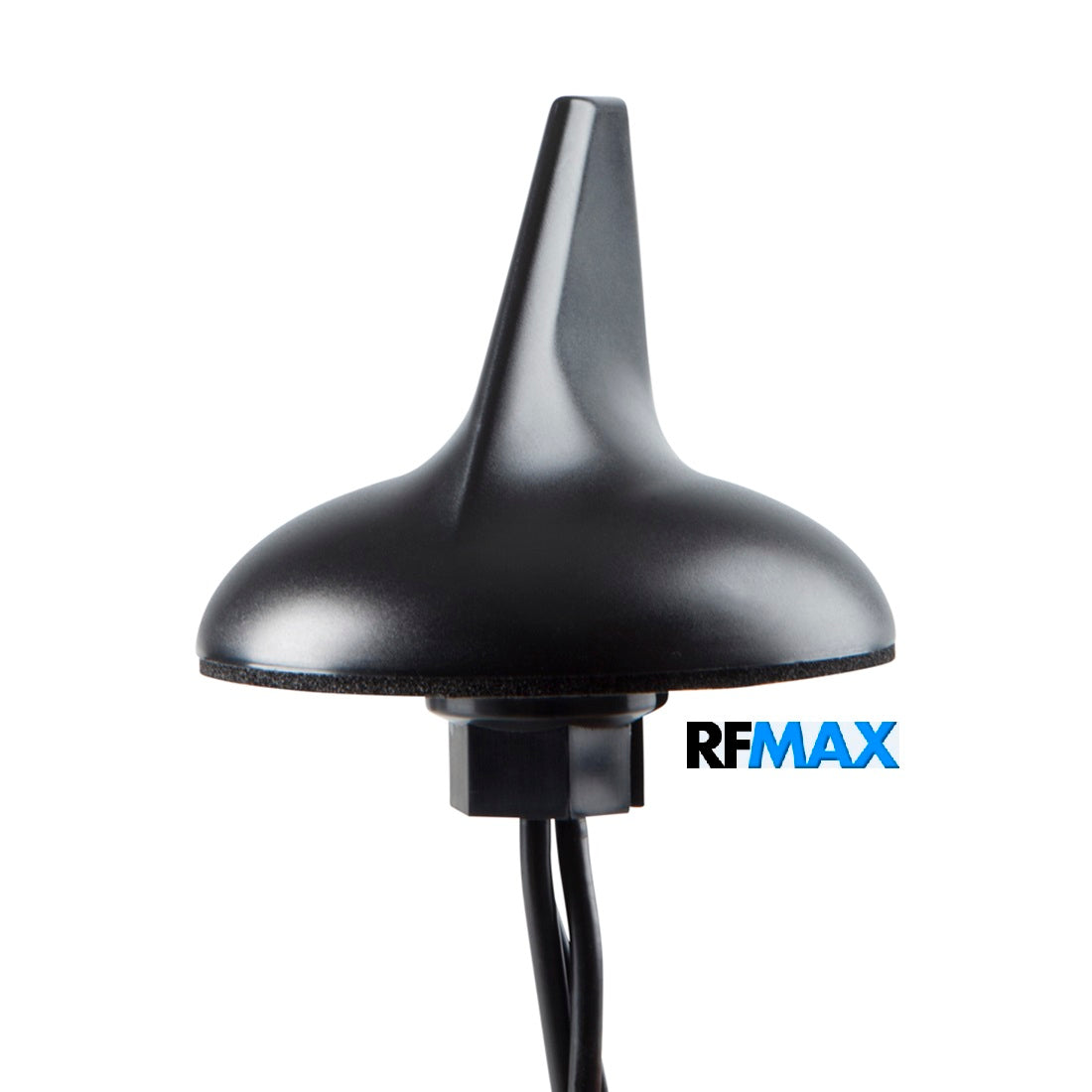

The RFMAX RSF-DB-G4W-SSS is a black, 3-in-1, roof mounted, SharkFin style antenna for use with the industry leading In-Vehicle modems. This vehicular multi-band antenna is the best choice when you are looking for high performance at an economical price. The antenna is ideal for combining 1575 MHz GPS, 698-2700 3G/4G/LTE cellular data communication and 2.4 / 5 GHz WIFI/WLAN in one, small, covert package. Equivalent to antennas from TaoGlas, Mobile Mark and Antennas Plus. Optimized for use with Cradlepoint & Sierra Wireless modems: LS300, GX440, GX450 & RV50.

Compatible with Getac S410, V110, F110, RX10 Tri, and T800 Tri, Handheld ALGIZ 8X and 10X, and XPLORE XSLATE R12.

*Please note: This antenna does NOT fit on the 2020 Ford Interceptor*



More Information

The RFMAX RSF-DB-G4W-SSS is a black, 3-in-1, roof mounted, SharkFin style antenna for use with the industry leading In-Vehicle modems.  This vehicular multi-band antenna is the best choice when you are looking for high performance at an economical price.  The antenna is ideal for combining 1575 MHz GPS, 698-2700 3G/4G/LTE cellular data communication and 2.4 / 5 GHz WIFI/WLAN in one, small, covert package.  The threaded antenna mounting stud and hex nut can accommodate up to a 5/8” (16 mm) thick roof surface. The RSF-DB-G4W-SSS has 3 cables to optimally support the different technologies: 3G/4G/ LTE data communication is supported on a low-loss RG-58 cable with SMA-Male connector.  WIFi/ WLAN operates on a separate RG-58 cable. The 26 dB gain GPS antenna has its own RG-174 cable.

FEATURES:

  • Single antenna: 3.5" tall x 4" diameter supports all 3 signals (GPS,Cellular,WIFI)
  • Combines 3 high performance elements: GPS + WIFI + 3G/4G/LTE
  • 3 Separate 5 ft. cables with SMA connectors offer installation flexibility
  • Easily mounted through a single 3/4” hole
  • Optimized for use with Cellular modems and In-Vehicle Routers from Sierra Wireless, Cradlepoint, MultiTech, Microhard
  • Perfect for Airlink LS300, GX400, GX450, RV50 & RV50x



APPLICATIONS:

  • Public Safety / Police Vehicles: patrol cars & covert
  • Taxi Cabs, Livery Cars, Limosines
  • Utility Company Trucks & Vans - Fleeet Management

Compatible with Getac S410, V110, F110, RX10 Tri, and T800 Tri, Handheld ALGIZ 8X and 10X, and XPLORE XSLATE R12.


Documents


Specifications

SKU RSFDBG4W5SSS
Manufacturer Part Number RSF-DB-G4W-5-SSS
Manufacturer RFMAX
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 698-960 / 1710-2170 / 2300-2700 MHz (3G/4G/LTE Celllular )
Gain 4.5 dBi
Working Frequency 2 2400-2485 / 5150-5875 MHz (WiFI/WLAN)
Gain 2 6.5 dBi
Working Frequency 3 1575.42 MHz (3.3 and/or 5V GPS)
Gain 3 28-30 dBi - Active GPS
Antenna Style "Sharkfin" Multi-Element Antennas
Polarity Linear
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohms
Max Input Power (W) 20
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 3.5
Height/Length (mm) 89
Width (inches) 4.26
Width (mm) 108
Weight (lbs) 0.94
Weight (grams) 470
Operating Temp (celsius) -40 to +85
Mount Style Direct 3/4" hole
Color Black
Connector Type Cable - Bottom Entry
Cable Type RG-58/U
Number of Cables 3
Cable Length (inches) 5 feet / 60 inches
Connector 1 SMA-Male
Connector 2 SMA-Male
Connector 3 SMA Male
IP Rating IP65
Vehicular Yes
Product Condition New
