12x12 inch Linearly Polarized Antenna - 10 dBiL for 902-928 MHz FCC RFID with N-Female | RLPA-902-10-NF
RLPA-902-10-NF
Shipping calculated at checkout.
12x12 inch Linearly Polarized Antenna - 10 dBiL for 902-928 MHz FCC RFID with N-Female | RLPA-902-10-NF
More InfoDocumentsSpecifications Reviews- LINEAR Polarized 902-928 Mhz for FCC RFID
- IP67 Outdoor Rated, includes "weep holes" for drainage
- Size: 12x12 Inches & 1.2 Inches Thick
- Gain: 10 dBiL (Linear)
- Beamwidth: Horizontal (Azimuth) 50 Degrees
- Beamwidth: Vertical (Elevation) 60 Degrees

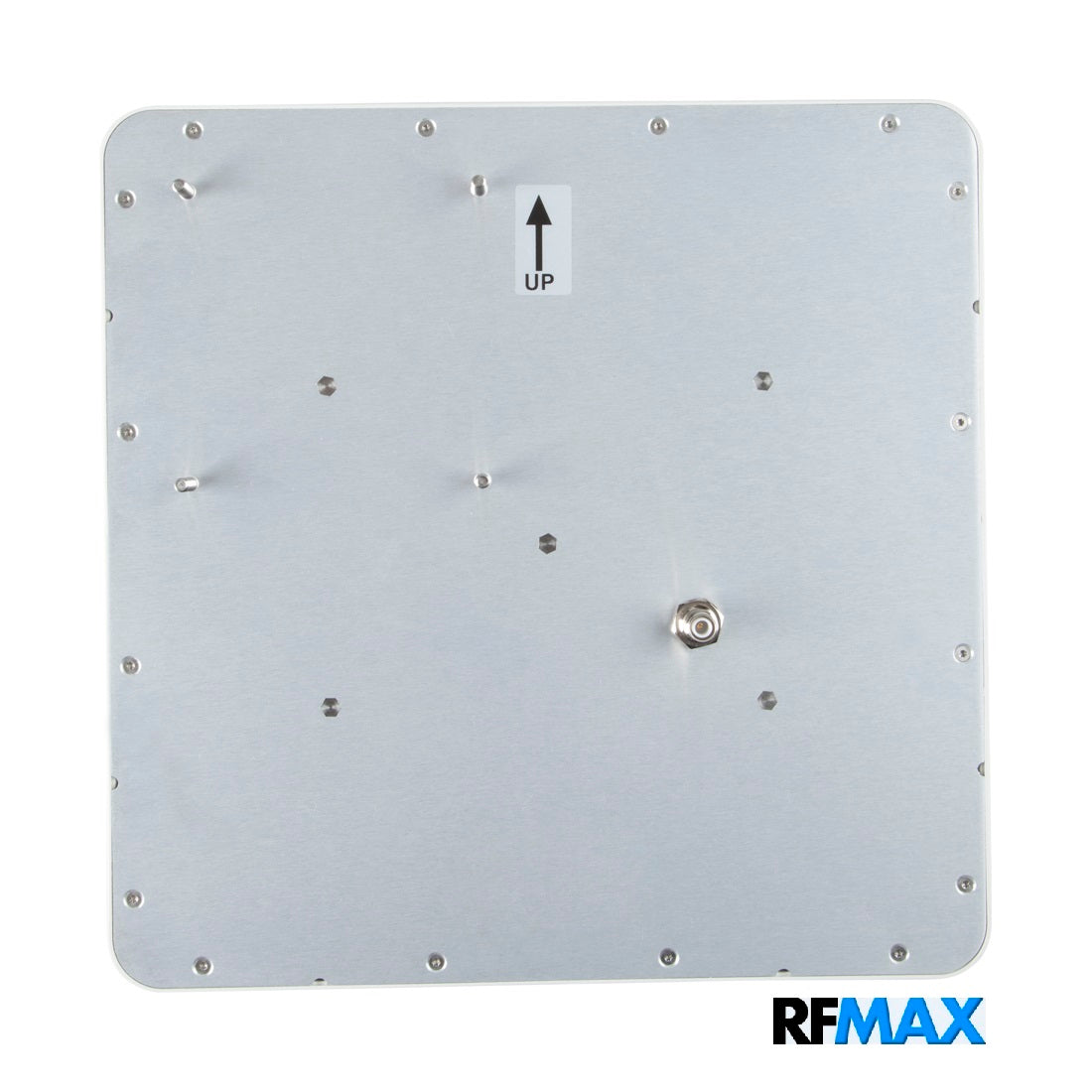

- Connector: Fixed N-Female (on rear)
- Mounting: (4) M6 Mounting Studs Spaced at 100mm VESA
- Applications: Outdoor Parking Gates, Race Timing, High Pressure Wash Downs
- Mounting Bracket NOT Included / Sold Separately.
*NOTE: Antenna Bracket, Part # HDMNT-100MM Sold Separately*
More Information

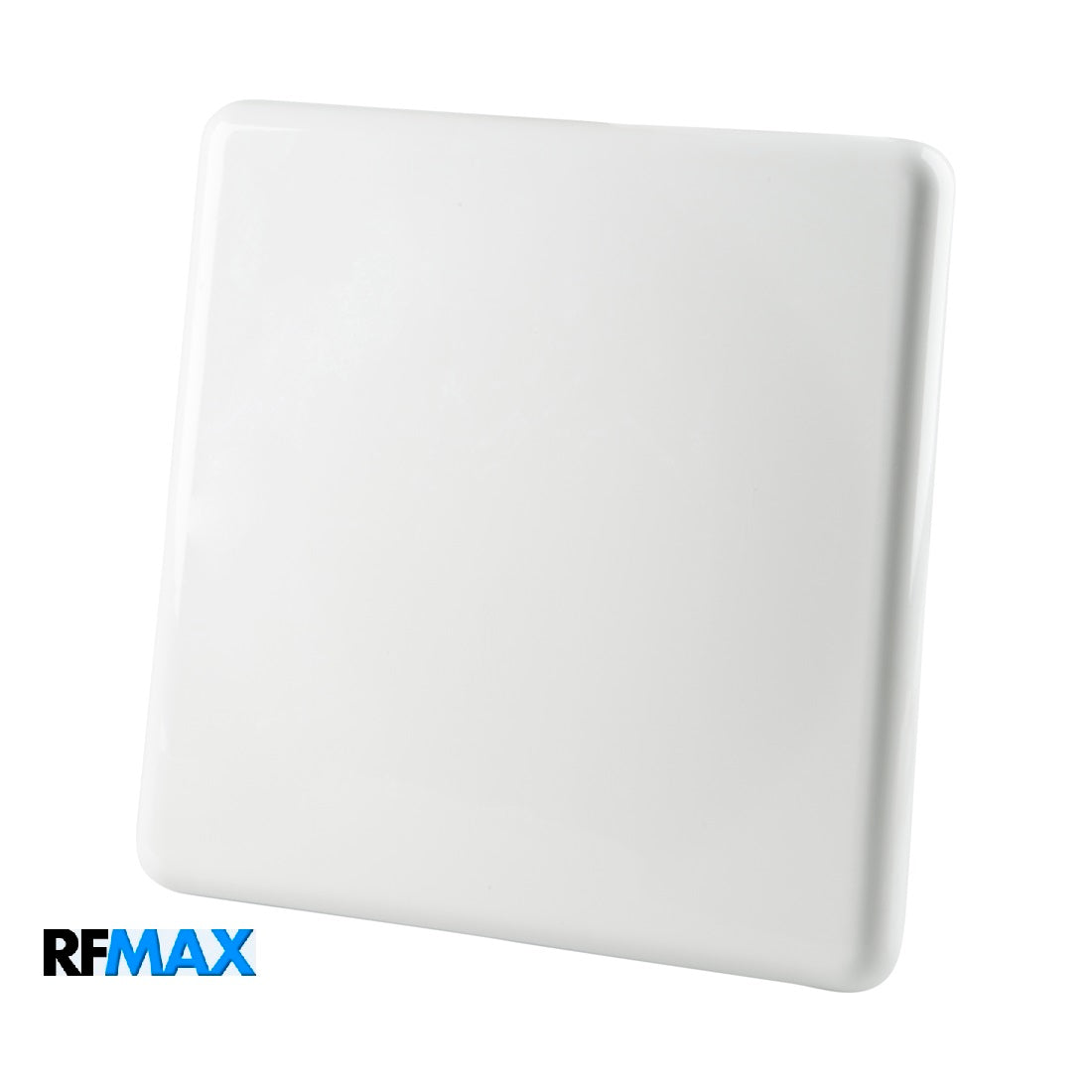

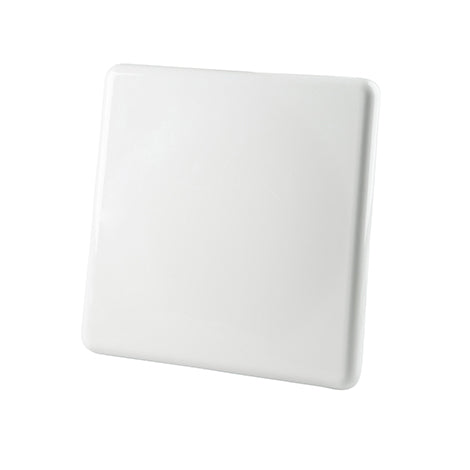

The RLPA-902-10-NF is a Linear Polarized outdoor RFID Antenna from RFMAX. The unit is IP67 rated, measures in at 12x12 inches and operates at 10 dBiL gain.
Documents
We Also Recommend
RFMAXMAPPER
Handheld 865-928 MHz RFID Antenna Power Field Mapper for FCC & ETSI
$437.64
$437.64
View Details
EZ-M6-COMBO
6 Inch Antenna Mounting Bracket - Fully Articulating Wall or Mast Mount for 2 or 4 Stud RFID Panel Antennas. | EZ-M6-COMBO
$103.20
$103.20
View Details
R9029-XL-12SSF
902-928 MHz Extra Large, 30x12 inch Circularly Polarized RFID Antenna - FCC | R9029-XL-12SSF
$434.50
$434.50
View Details

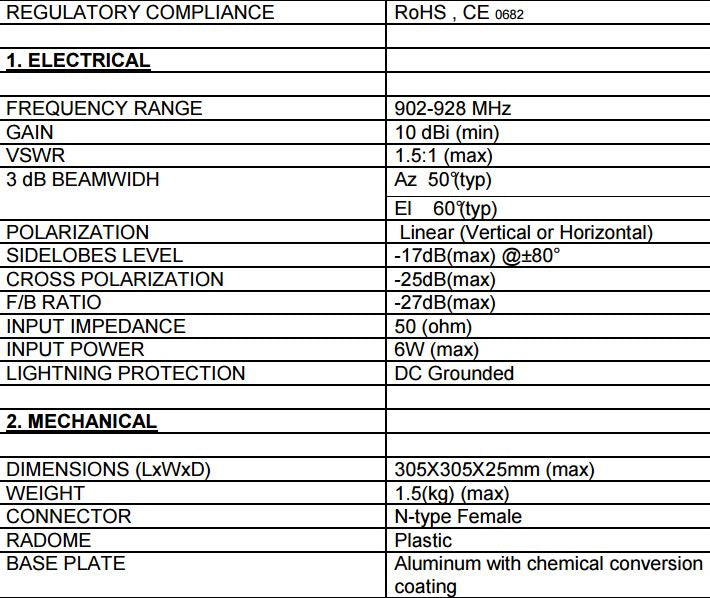

Specifications
| SKU | RLPA90210NF |
|---|---|
| Manufacturer Part Number | RLPA-902-10-NF |
| Manufacturer | RFMAX |
| Antenna Category | RFID (865-928 MHz) |
| Working Frequency | 902-928 MHz |
| Gain | 10.0 dBiL |
| Center Tuned Frequency 1 | 915 MHz |
| Antenna Style | Panel Antenna |
| Polarity | Linear |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Directional |
| Impedance | 50 ohms |
| Max Input Power (W) | 6 |
| VSWR: < X: 1 | 1.5:1 |
| Height/Length (inches) | 12 |
| Height/Length (mm) | 305 |
| Width (inches) | 12 |
| Width (mm) | 305 |
| Thickness/Diameter (mm) | 25 |
| Weight (lbs) | 3.5 |
| Weight (grams) | 1500 |
| Material | Plastic |
| Operating Temp (celsius) | -55 to +70C |
| Mount Pattern | 100mm VESA |
| Color | White |
| Connector Type | Connector - Rear (N-Female) |
| Connector 1 | N-Female |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Ground Plane Required | No |
| Accessory 1 | HDMNT-100MM |
| Product Condition | New |
