Low Profile Flush Mount 10x10 inch IP-67 Circularly Polarized RFID Antenna - ETSI | R8658-LPF-SSF
R8658-LPF-SSF
Shipping calculated at checkout.
Low Profile Flush Mount 10x10 inch IP-67 Circularly Polarized RFID Antenna - ETSI | R8658-LPF-SSF

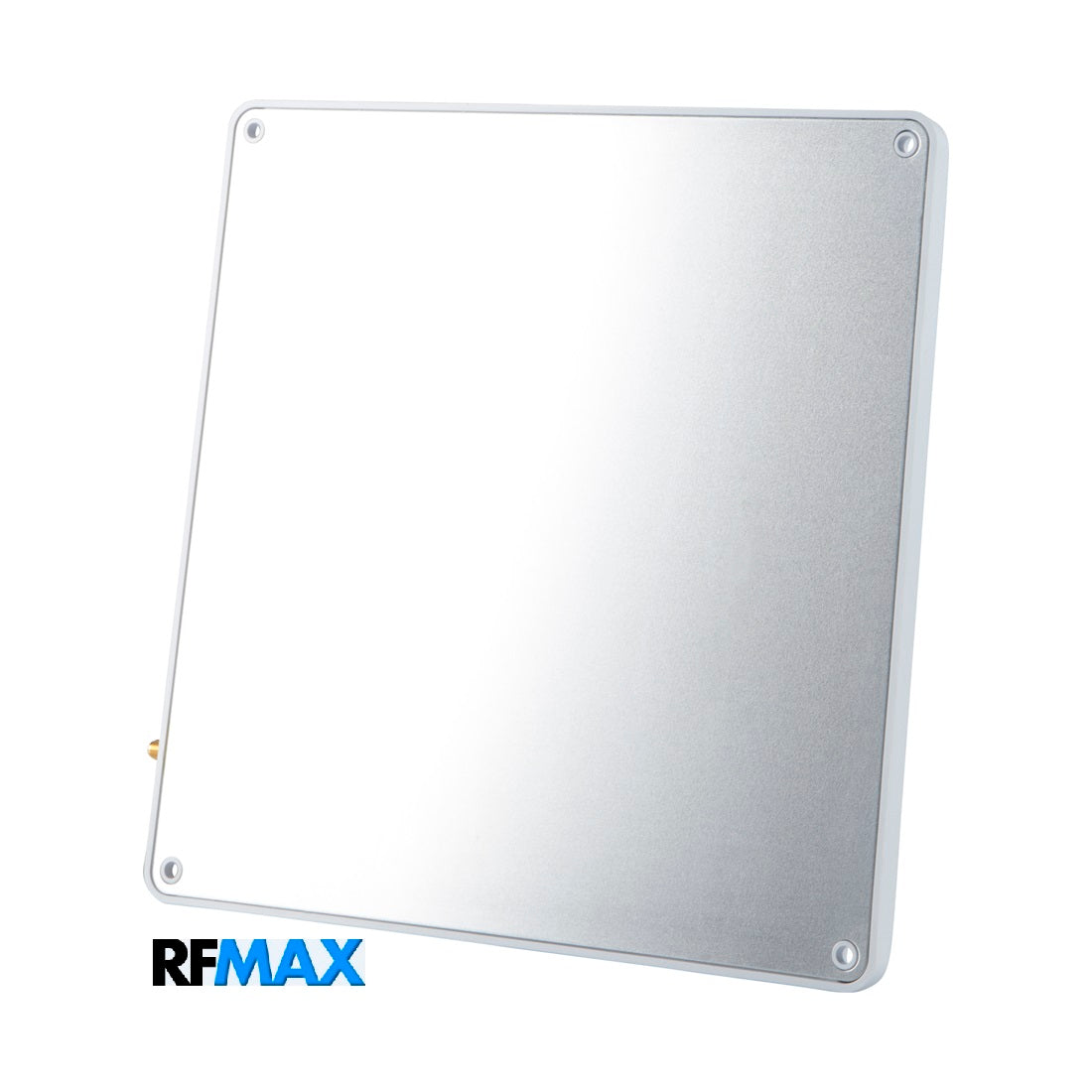

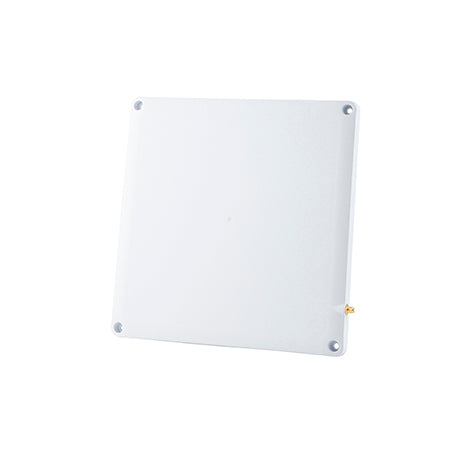

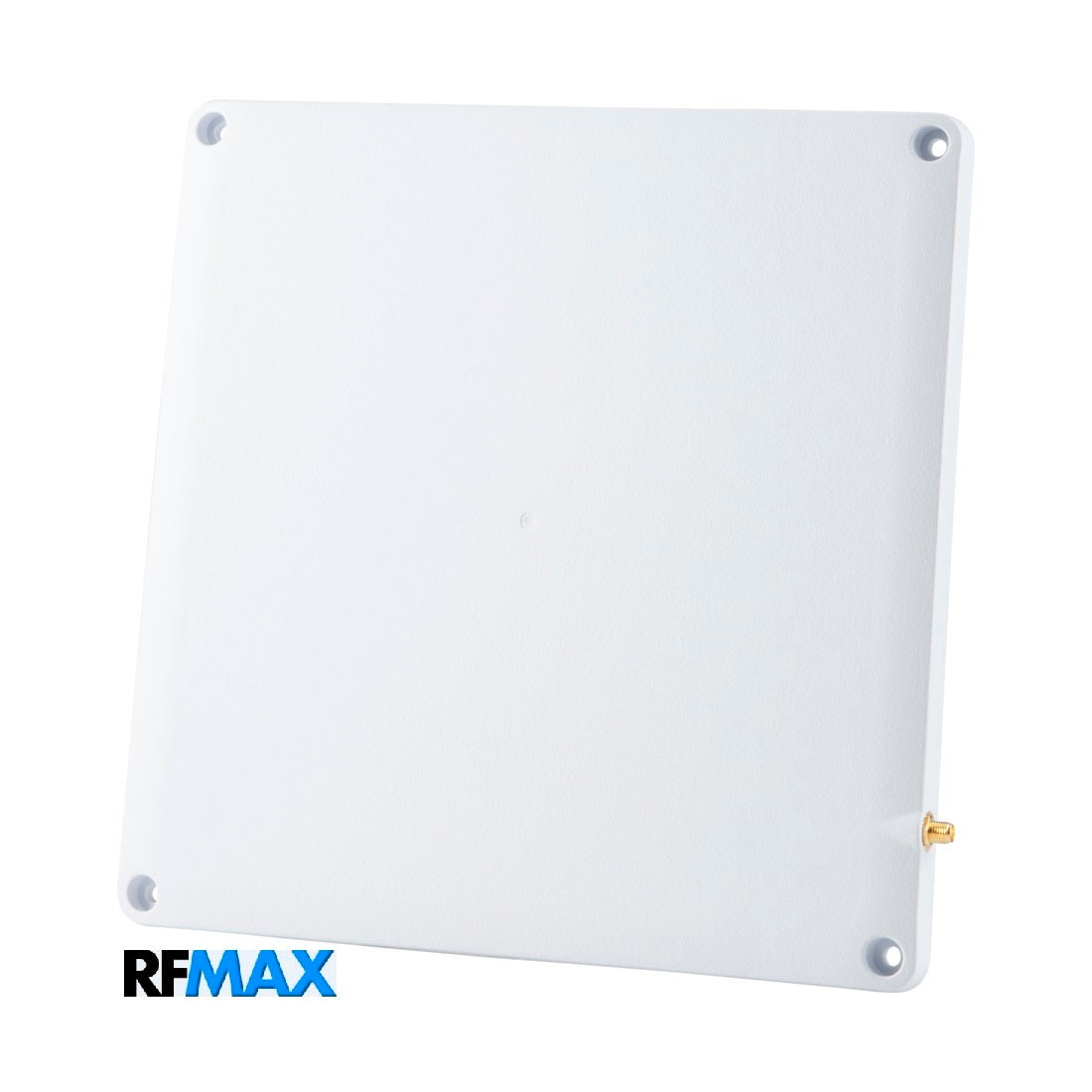

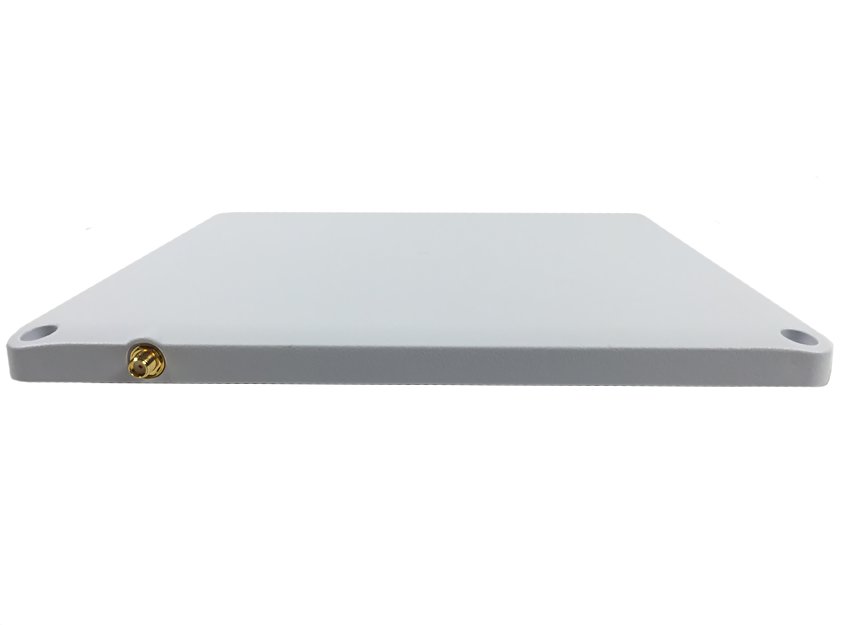

More InfoDocumentsSpecifications ReviewsThe R8658-LPF-SSF Circularly Polarized ETSI outdoor RFID Antenna from RFMAX measures in at 10x10 inches. This unit operates at 8.5 dBic gain, covers 68 x 68 degrees beamwidth, and is THE LOWEST PROFILE antenna for passive UHF RFID applications in the ETSI band of 865-868 Mhz. The unit carries a full IP67 rating, thus it is well suited for outdoor installations, and comes with a side-entry, standard SMA-Female Connector. There are mounting holes drilled in each of the 4 corners.
COO: New Zealand
More Information
Specifications
| SKU | R8658LPFSSF |
|---|---|
| Manufacturer Part Number | R8658-LPF-SSF |
| Manufacturer | RFMAX |
| Working Frequency | 865-868 MHz |
| Antenna Category | RFID (865-928 MHz) |
| IP Rating | 67 |
| Polarity | Circular |
| Gain | 8.5 dBiC |
| Horizontal/Azimuth Beamwidth | 68 |
| Vertical/Elevation Beamwidth | 68 |
| Connector Type | Connector - Side Entry |
| Connector 1 | SMA-Female |
| Height/Length (inches) | 9.85 |
| Height/Length (mm) | 250 |
| Operating Temp (celsius) | -30 to +70 |
| Thickness/Diameter (inches) | 0.55 |
| Thickness/Diameter (mm) | 14 |
| Width (inches) | 9.85 |
| Width (mm) | 250 |
| Weight (lbs) | 1.6 |
| Weight (grams) | 750 |
| Material | UV-Resistant ABS |
| Mount Style | Flush-4 corner mounting holes |
| Includes | Does NOT include mounting screws |
| Product Condition | New |
