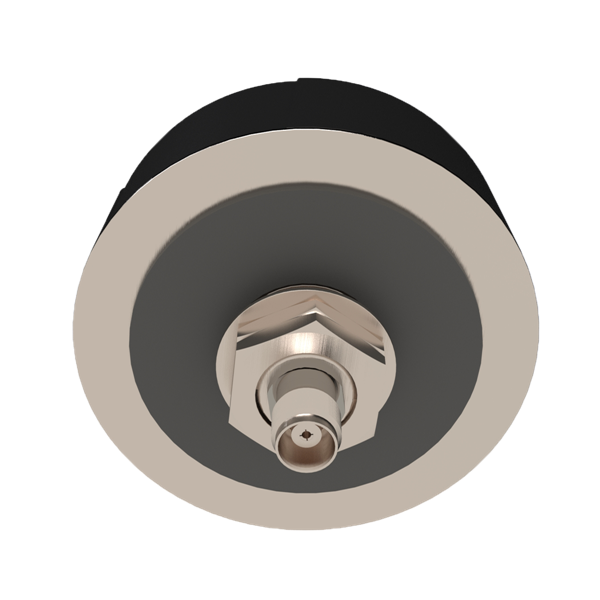

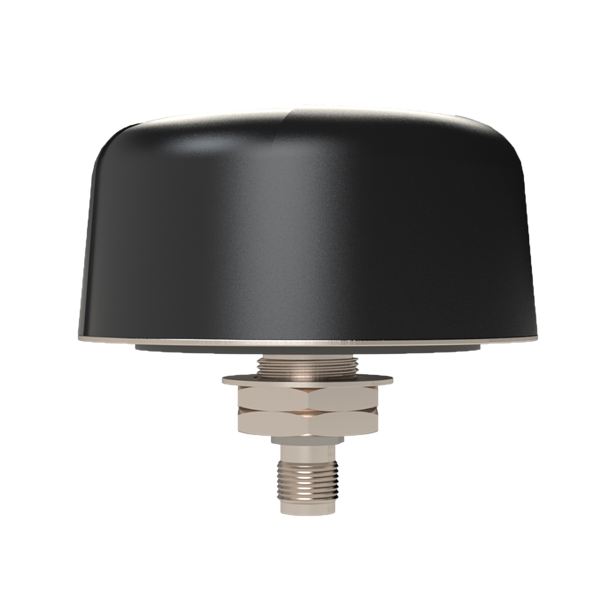

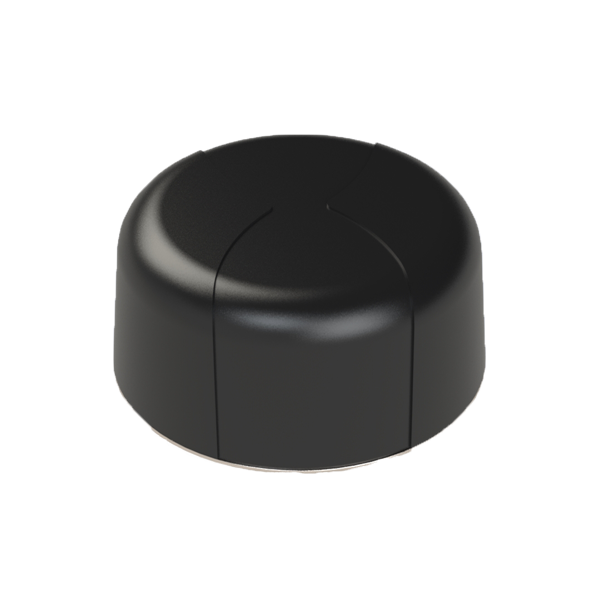

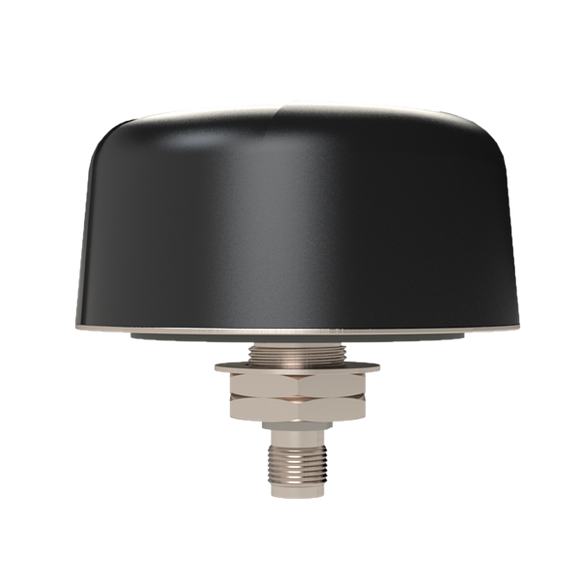

RFMAX L1-L2-L5 Active GNSS Antenna| R3HPD-GNSS-L125-STF
R3HPD-GNSS-L125-STF
Shipping calculated at checkout.
RFMAX L1-L2-L5 Active GNSS Antenna| R3HPD-GNSS-L125-STF
More InfoDocumentsSpecifications ReviewsRFMAX L1, L2, L5 Active GNSS Antenna with Direct TNC Female. Small, IP67 rated, robust form factor with low noise ratio
More Information
The R3HPD-GNSS-L125-STF is an active antenna solution designed to operate across GPS, Galileo, Glonass, and BeiDou bands, including L-Band correction services. This low-profile, right-hand circularly polarized (RHCP) antenna supports L1, L2, and L5 frequencies, making it ideal for high-precision applications such as autonomous vehicle navigation, smart survey devices, and maritime positioning.
Documents
Specifications
| SKU | R3HPDGNSSL125STF |
|---|---|
| Manufacturer Part Number | R3HPD-GNSS-L125-STF |
| Manufacturer | RFMAX |
| Antenna Category | GPS/GNSS (1545.72, 1561-1602 MHz) |
| Working Frequency | 1164-1300, 1539-1610 |
| Antenna Style | "Puck" Multi-Element Antenna |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Max Input Power (W) | 2.3-16 VDC |
| Height/Length (inches) | 1.6 |
| Height/Length (mm) | 40 |
| Width (inches) | Ø3.14 |
| Width (mm) | Ø80 |
| Weight (lbs) | 1 |
| Material | UV Resistant ABS |
| Operating Temp (celsius) | -40 to +85 |
| Color | Black |
| Connector Type | Direct TNC Female |
| Connector 3 | TNC-Female Bulkhead |
| IP Rating | IP67 |
| OK for Outdoor Use | Outdoor |
| Vehicular | No |
| Ground Plane Required | No |
| Product Condition | New |
